SDI to HDMI converter

Universal, easy to use and plug & play SDI to HDMI converter for different distances. Supports all types of 3G-SDI, HD-SDI or SD-SDI signals and SDI loopout.

The SDI video format support:
- 625/25 PAL
- 525/29.97 NTSC
- 525/23.98 NTSC
- 720p50, 720p59.94
- 1080P 23.98/24/30/50/60
- 1080i 23/24/30/50/59.94
The SDI input and LOOP output support standard of 270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
HDMI input support : [email protected] , 576i , 720P@50/59.94/60 , 1080i@80/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60
SDI output support long distance via coaxial :
- 3G-SDI : 120m
- HD-SDI : 200m
- SD-SDI : 300m
2 LED indicators to monitor the working conditions exactly and easily
UpnP , easy installation

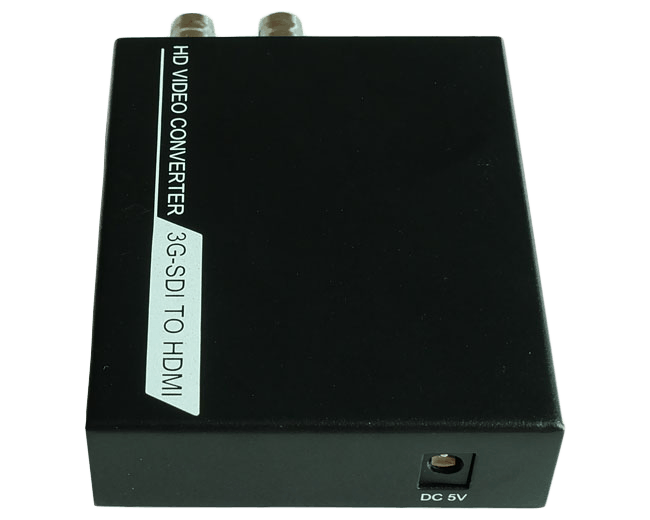

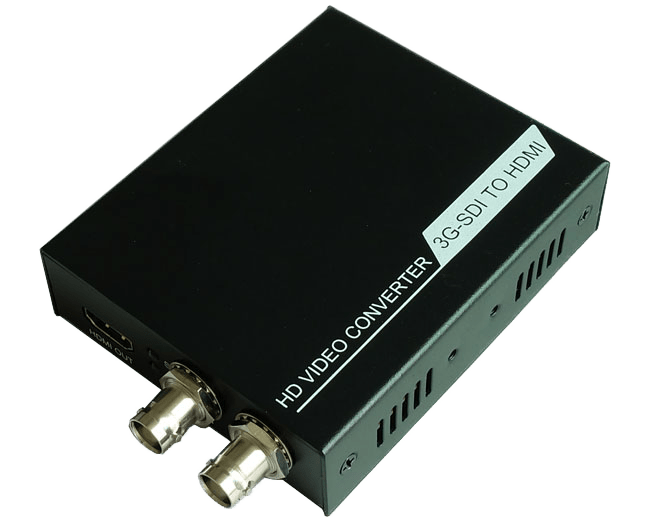

3G-SDI to HDMI converter

AN-SDI-HDMI series can convert

1-Channel 3G-SDI to HDMI with 1ch SDI LOOP output .

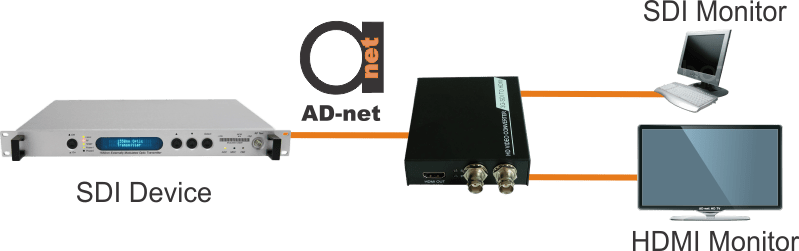

SDI to HDMI application example

Quick installation video shows that units are plug and play and really easy to install.

In this setup we use HDMI to SDI converters set to convert SDI signal coming from our SDI micro type USB powered transmitters to HDMI monitors.

AN-SDI-HDMI

SDI to HDMI converter with 1 SDI input, 1 SDI Loop Output, 1 HDMI output

Description

Universal, easy to use and plug & play SDI to HDMI converter for different distances. Supports all types of 3G-SDI, HD-SDI or SD-SDI signals and SDI loopout.
