Designing the distribution section for FTTP networks

OSPs output cables are purposed for distribution to individual customers. Depending on the neighbourhood layout the design might differ, but main elements are the same: distribution cables, access terminals/enclosures and drop cables.

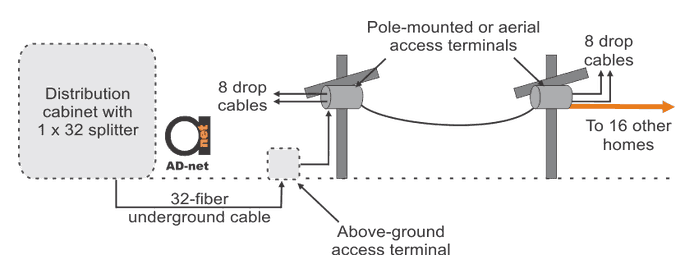

Distribution_cable_layout_to_four_clusters_of_eight_homes



Figure 1. Distribution cable layout to four clusters of eight homes.



Cabling layout for 32 homes is shown in Figure 1. This FTTP network uses a 1×32 optical splitter.
The access terminal (a breakout point) is located either on poles, underground, in above-ground shelters, or in an indoor wiring closet. These enclosure vary in sizes and physical characteristics.

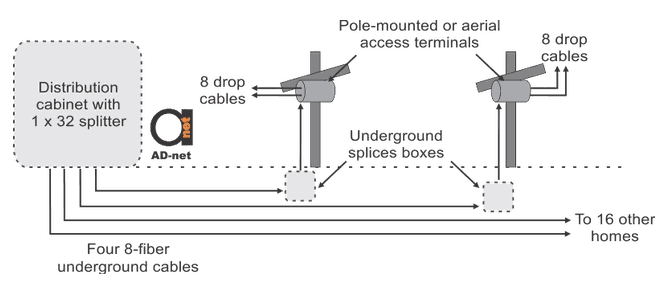

Four_eight-fiber_distribution_cables_servicing_four_clusters_of_eight_homes



Figure 2. Four eight-fiber distribution cables servicing four clusters of eight homes.



Above-ground pedestal design requires above-ground cross-connect enclosure fixed on pedestal to anchor the unit in place. The inner dome of the equipment protects it from dirt, moisture and debris. Second, exterior dome, protects from water-flood and environment. This type of enclosure can accommodate from 24 to 288 splices.



For all different design (aerial, pole mounted or manhole) is used cross connection enclosure Such enclosure are accommodating up to 96 splices or more



You can see more such closures here: https://www.ad-net.com.tw/index.php?id=450
