Differences on Ethernet Frame encapsulation in EPON and GPON

In BPON and GPON Ethernet frames are encapsulated and transmitted already inside other type of frames. In EPON, however, Ethernet frames are transmitted natively without use of TDM. Technology is shown in Figure 1.



example_of_EPON_network

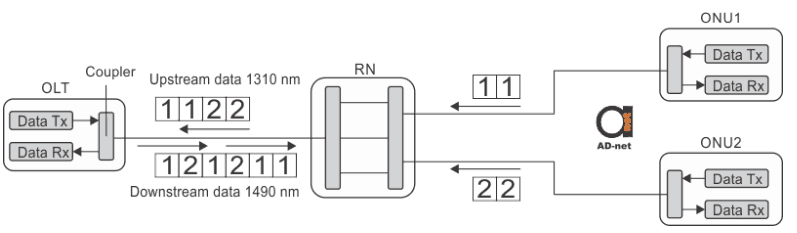

Figure 1. An example of EPON.



ONU buffers allow data transmission without interference in the upstream direction. Data frames are quede and switched into backbone network in the OLT. Switching point is also maintaining priority for different data, based on Ethernet frame priority field.

example_of_EPON_network



Figure 2. Ethernet frame, including priority field.



Ethernet frame structure is shown in Figure 2. Payload size of the Ethernet frame is between 40 and 1494 bytes. Destination Address and Source Address are containing unique 48-bit MAC addresses of the receiver and sender devices. The tag control field in the header is defining priority level of the Ethernet frame. The VLAN identifier is associating a subset of participating communication entities.
