DXC nx64 crosss connect card & FTTB cards for miniSDH are ready

AD-net has continuously worked on improving the worldwide known miniSDH series multiplexers range. Now, two new useful service cards are available at miniSDH modular series and AN-MiniSDH-C – DXC n x 64 kibit/s cross connect matrix card and FTTB/FTTB 4 ports FX card.



FDXC64 card supports 64kbps timeslot cross-connection matrix which can fulfill 30 (without 16th timeslot) or 31 (including 16 timeslot) 64kbps time slot cross-connection.
DXC can be used for 64 kbps rate leading. With DXC64 card, 64 VC-12 (E1) from system board can fulfill the entire cross-connect of all 64kbps timeslot. In the framed E1 with CAS (Channel Associated Signalling), 16th timeslot is automatically signal cross-connect. In the framed E1 with CCS (Common Channel Signalling), 16th timeslot can also transmit data, set up cross-connect.
DXC cross-connect card belongs to the internal functional unit, without external signal interface.



FX404 card, gives the the possibility for the direct integration of SDH Ethernet tributaries with the FTTB or FTTH network, by connecting miniSDH ring to SFP module of customer network, fiber switch, or even regular media converter.

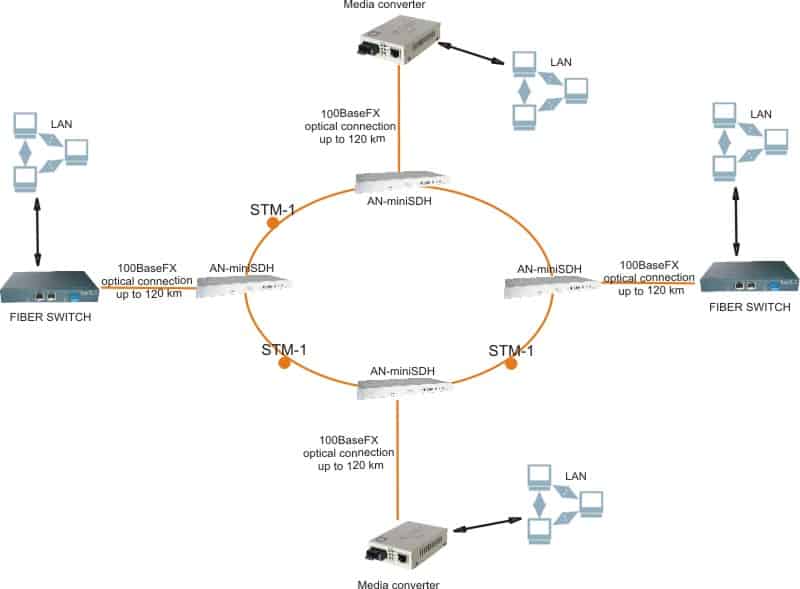

Application scenario of FX404 card are show in below scheme:

fx_scheme
Below you can have a glance view of the new modules:

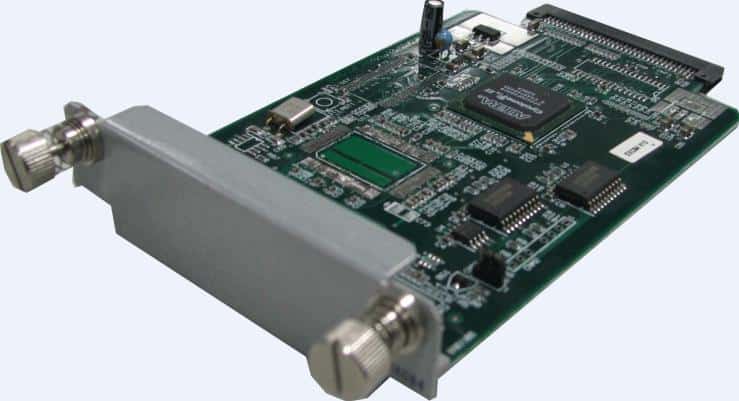

dcxcard_bigPicture1: DXC cross connect card

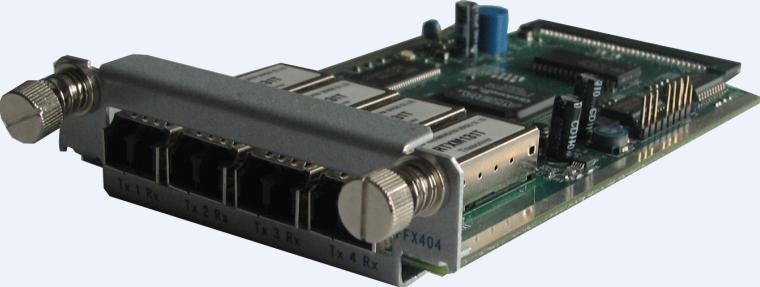

fx_card_big
Picture 2: 4 fiber ports Ethernet tributary module
