Passive and active PON components

PON is developed for different scenarios, which share some standard components. The main components are splitter/coupler and the Arrayed Waveguide Grating (AWG) that are shown in Figure 1. TDM-PON is using splitter/coupler for downstream and upstream, respectively. In WDM-PON splitter/coupler is being replaced by AWG in the remote node.

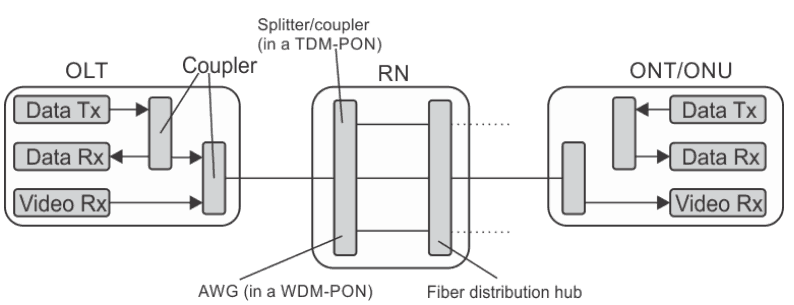

Passive_splitter_coupler_in_a_TDM-PON_and_AWG_in_WDM-PON



Figure 1. Passive splitter/ coupler in a TDM-PON and AWG in WDM-PON



Passive Optical Coupler (POC)



Multiple signals are being combined by the POC, received from different sources. POC can have one or more outputs, as shown in Figure 2.

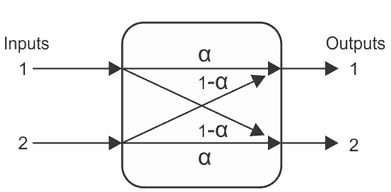

A_2_x_2_coupler



Figure 2. A 2 x 2 coupler



Signal from input 1 is being coupled to output 1 with fraction alpha(α) (0<α<1). Meanwhile reminder is coupled to output 2. The same way signal from input 2 is being coupled. The fraction from input 2 (1-α) is coupled to output 1. Both outputs have signal combined from two inputs.



3-dB coupler is the 2×2 coupler with α=0.5 where the input signal is split in half between two output ports. Coupler can be wavelength independent – where coupling coefficient is the same for all the wavelengths, or wavelength selective – that works only with particular wavelengths.
