64 ports RJ-11 Phone Voice over Fiber Multiplexer with 2 x Fast Ethernet ports

This device provides 1-64 Channel telephone, 2 Channel 10M/100M Ethernet interface (Wire Speed 100M), 2 Channel Ethernet interface is switch interface, can support VLAN. The whole machine works reliably and stably with low power consumption, high integration, small size and easy installation and maintenance.

2, 4 or 8 port RJ-11 telephone & Gigabit Ethernet port over Fiber Multiplexer

This device provides 1, 2 4 8 Channel POTS Telephone, + 1 Channel 1000M (Gigabit) Ethernet interface (Wire Speed 10/100/1000M)，1 Channel Ethernet interface is switch interface, can support VLAN.

16 port / channel 4 – 20 mA Analogue Current to Fiber Optic Converter / Extender – Industrial Type, IP40 protection

This series of devices adopts large-scale FPGA design and adopts original technology to support 1~16 channels of analog signals (current/voltage) to fiber relay. The device adopts dual power supply, high-performance FPGA programmable device, no MCU processing, high-speed conversion, sampling frequency can reach 20KHZ, 12-bit AD conversion chip, which solves the problems of electromagnetic interference, ground loop interference and lightning damage,…

Industrial DIN rain CAN BUS over Fiber Optical Extender / Modem /Multiplexer

The CAN fiber modem can transfer CAN bus signal to optical signal and transmit over fiber, which can extend the communication distance of CAN bus. At the same time, due to adopting optical fiber communication, it solves the problems of electromagnetic interference, ground ring interference and lightning damage, and greatly improves the reliability, security and confidentiality of data communications and…

CAN BUS Fiber Modem – Can Bus Over Fiber Extender / Multiplexer

The device can achieve optical fiber CAN bus signals converted to optical signals on optical fiber transmission, extended the CAN bus communication distance, and because the use of optical fiber communication, solve the electromagnetic interference, ground loop interference and lightning damage, greatly improving the reliability of data communications, security and confidentiality, can be widely used in various industrial control, process…

STM-1 / OC3 (ATM) Fiber Optical to Electric Interface Converter / Extender – 1U type

STM-1 fiber to electric converter provides STM-1 (ATM) interface converter electrical interface to optical interfaces STM-1, complete signal transmission on SDH STM or 155M of SDH photoelectric conversion. Interconnection SDH equipment is mainly used in ATM equipment or SDH interfaces or other terminal equipment interconnection have 155.520Mbit / s interface.

Passive 4 – 8 – 16 channel Passive CWDM multiplexer, 19′ rack mount

AN-PA-CWDM is the use of several layers of different dielectric thin films are combined to form an interference filter having a specific wavelength selection characteristics, and can achieve separation of different wavelengths or in combination   AN-PA-CWDM the product uses 1U rack design, can be installed in a standard 19-inch rack can support 20nm apart between 1270nm ~ 1610nm CWDM…

8 port RS-232/RS-485/RS-422 over optical fiber multiplexer / modem

Fiber modem can be connected with computer or other devices via Lotus screw type terminal. This is a small and flexible device which can solve the problem of traditional RS232 communication conflict between distance and rate. Electromagnetic interfere, lightning interfere ,improve the reliability ,safety, and security of data communication, suitable for industrial control, procedure control, and traffic control, especially for…

RS-232 / RS-485 / RS-422 Screw Pin Terminal Type Serial Over Fiber Converter / Extender

Fiber modem can be connected with RS232 ( or RS-485, RS-422) port of computer or other devices, small and flex. solve the problem of traditional RS232, RS-485 or RS-422 communication conflict between distance and rate. Electromagnetic interfere, lightning interfere ,improve the reliability ,safety,and security of data communication, suitable for industrial control, procedure control,and traffic control,especially for system in bank, electric,…

64 E1s and Gigabit Ethernet to optical add/drop fiber multiplexer – Ring, Chain, Point-to-Point and Point-to-Dual applications supported

The AN-FM-64000-GETH-SNMP is optical transmission equipment based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 64 E1s and four 1000Mbps Ethernet data channel transmission over optical line of 1.25Gb/s, the four 1000Mbps Ethernet data channel share 1000M bandwidth. In point-to-point mode, the Ethernet transmission bandwidth can be…

8 – 16 E1s and Gigabit Ethernet to optical fiber multiplexer – Ring, Chain, Point-to-Point and Point-to-Dual applications supported

The AN-FM-240/480-GETH-SNMP is optical transmission equipment based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 8/16 E1s and four 1000Mbps Ethernet data channel transmission over optical line of 1.25Gb/s, the four 1000Mbps Ethernet data channel share 1000M bandwidth. In point-to-point mode, the Ethernet transmission bandwidth can be…

Modular Integrated Access Multiplexer – SNMP/LCD/Web managed

This device apply large-scale integrated circuit developed independently as its hardcore and can multiple 16-channel E1 signal, 4-channel 100M Ethernet on dual optical fiber to realize the hybrid transmission. Various Functional Modules: User interface modules (N×64K V.35, FV.35, FXO/FXS, E/M, RS232/RS485, and etc.), order wire module, network management module (RS232, and Ethernet Interface, etc.), and alarm output terminal module, etc.…

1, 2, 4, 6, or 8 port RJ-11 type Telephone POTS FXS/FXO & Ethernet 10/100 to Fiber Optic Converter

New Generation Ring Supporting Multiservice Gigabit Ethernet and 32 E1 Fiber Optical Multiplexer

The AN-FM-32000 is optical transmission equipment based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 4/8/16/32 E1s and four 1000Mbps Ethernet data channel transmission over optical line of 1.25Gb/s, the four 1000Mbps Ethernet data channel share 1000M bandwidth. In point-to-point mode, the Ethernet transmission bandwidth can be…

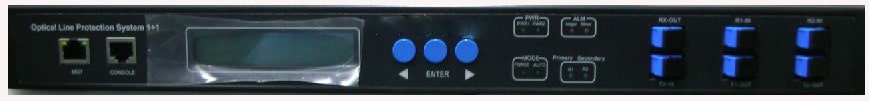

Auto Optical Line Protection Backup (OLP) System

Optical Line Protection Equipment is developed by our company for the application of optical line backup protection system. It adopts the most advanced auto-switching optical line module, which is widely used for the interchange switch between main and backup lines and can automatically identify the signal from main line or backup line. With instantaneous interchange switch, it can keep the…

GEPON ONU with 4 x 10/100 Fast Ethernet + Wifi ONU

EPON ONU AN-E-ONU-4100-W is mainly designed for FTTH, FTTO application. EPON ONU AN-E-ONU-4100-W support 1000Base-PX20 standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.   ONU AN-E-ONU-4100-W work together with C-Data's OLT could realize flexible network structure and maintenance and provide total FTTx solutions.   ONU AN-E-ONU-4100-W has 1 PON port, 4 10/100BASE-T…

GEPON ONU 4 x 10/100 Fast Ethernet + CATV + WiFi

The ONU is mainly designed for FTTH,FTTO application. It support 1000Base-PX20 standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.   It work together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.   It built in CATV Receiver to realize the analog or DVB TV signals transmission.…

GEPON ONU 4 x 10/100 Fast Ethernet + 1 POTS voice + 1 CATV + WiFi

ONU AN-E-ONU4100-TV-V-W (4FE+1POTS+RF+Wi-Fi) is a FTTH bandwidth access equipment .Based on mature and stable EPON technology, it has powerful functions with high stability, sound QoS guarantee, comprehensive management and flexible networking construction, etc .ONU AN-E-ONU4100-TV-V-W’s technology standard fully complies with ITU-T, IEEE and telecommunication technology standard.   It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm…

GEPON ONU 4 x 10/100 + 1 POTS voice + 1 CATV port

ONU AN-E-ONU-4100-TV-V (4FE+1POTS+RF) is a FTTH bandwidth access equipment. Based on mature and stable EPON technology, it has powerful functions with high stability, sound QoS guarantee ,comprehensive management and flexible networking construction, etc. ONU AN-E-ONU-4100-TV-V’s technology standard fully complies with ITU-T, IEEE and telecommunication technology standard.   It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm.…

HGU GEPON ONU 1 x 10/00 Fast Ethernet + 1 x 10/100/1000 Gigabit and 1 POTS voice port

AN-E-ONU-FTTH-04 EPON HGU is one of the EPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the EPON network.   EPON is the latest generations of access network technology. IEEE802.3ah is the standard protocol of EPON. The EPON standard differs from other…

16 E1 G.703 + 5 x 10/100/1000 GE over fiber multiplexer with smart GUI and dot1Q, QoS and shaping

The AN-FM-480-GETH-G is designed as point to point optical transmission system based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 16 E1s and 1000Mbps wire-speed Ethernet transmission over fiber. It not only provides dual hot-pluggable optical interfaces to realize 1+1 optical protection, but also integrates one RS232…

8 E1 G.703 + 5 x 10/100/1000 GE over fiber multiplexer with smart GUI and dot1Q, QoS and shaping

The AN-FM-240-GETH-G is designed as point to point optical transmission system based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 8 E1s and 1000Mbps wire-speed Ethernet transmission over fiber. It not only provides dual hot-pluggable optical interfaces to realize 1+1 optical protection, but also integrates one RS232…

16 x E1 G.703 + 4 x Gigabit Ethernet fiber multiplexer

AN-FM-480-4GETH offers reliable transmission of 16xE1 G.703 + 4 x Gigabit Ethernet 10/100/1000 ports. 2 RS-232 channels are available as an option. 1+1 fiber optical uplink, Multimode, Single mode and WDM single fiber versions up to 80 km for your use. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All models…

16 x E1 G.703 + 4 x 10/100 Ethernet fiber multiplexer with dot1Q VLAN’s, QoS, and BW shaping

AN-FM-480-4ETH series of Multi E1 & Fast Ethernet Optical Terminal is a product combining of a PDH optical transport system and an Ethernet transceiver.   AN-FM-480-4ETH can provide up to 8 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting.   The AN-FM-480-4ETH…

16 x E1 G.703 + Ethernet fiber multiplexer

The AN-FM-480/ETH is a fiber media transport for 8E1 + 1 10/100BaseT  transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

8 x E1 G.703 + 4 x Ethernet fiber multiplexer

AN-FM-240-4ETH series of Multi E1 & Fast Ethernet Optical Terminal is a product combining of a PDH optical transport system and an Ethernet transceiver.   AN-FM-240-4ETH can provide up to 8 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting.   The AN-FM-240-4ETH…

8 x E1 G.703 + Ethernet fiber multiplexer

The AN-FM-240/ETH is a fiber media transport for 8xE1 + 1 10/100BaseT  transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

4 x E1 G.703 + 4 x Ethernet fiber multiplexer

AN-FM-120-4ETH series of Multi E1 & Fast Ethernet Optical Terminal is a product combining of a PDH optical transport system and an Ethernet transceiver.   AN-FM-120-4ETH can provide up to 8 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting.   The AN-FM-120-4ETH…

4 x E1 G.703 + Ethernet fiber multiplexer

The AN-FM-120/ETH is a fiber media transport for 4E1 x E1 + 1 10/100BaseT  transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode…

63 x E1 G.703 over fiber multiplexer

As a key member of AD-net SDH/MSPP Product family, AN-SDH63 is a carrier-class, cost-effective, compact (only 1U high) SDH/MSPP platform that is designed for applications in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers. It can provide 63E1 TDM interfaces in only 1U standard 19” box. AN-miniSDH is best…

4 x E1 G.703 over fiber multiplexer

The AN-FM-120 is a fiber media transport for 4 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

16 x E1 G.703 over fiber multiplexer

The AN-FM-480 is a fiber media transport for 16 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

8 x E1 G.703 over fiber multiplexer

The AN-FM-240is a fiber media transport for 8 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are available…

Framed E1 G.703/G.704 fiber modem

As it is widely known, G.703 is typically transported over balanced 120 ohm twisted pair cables terminated in RJ48C jacks. However, some telephone companies use unbalanced (dual 75 ohm coaxial cables) wires, also allowed by G.703. Distance in this cases does not exceeds 100 m, and that is serious drawback. One way is use the GSHDSL modems, what can help…

DS3 T3 Fiber modem / extender / converter

AN-DS3 modem / converter / extender can be used to provide 44.736M (T3) signal conversion between electrical interface and optical interface of DS3 / TS3 based network interface. It conforms to the ITU- T G.703 T3 recommendation.  The converter features compactness, light weight, low power consumption and high reliability. The 45M optical / electrical converter operates on 1310 nm lasers, with a typical…

E3 electrical – optical converter (E3 fiber modem)

AN-E3 E3 fiber converter (E3 fiber modem) can be used to provide 34.36 (E3) signal conversion between electrical interface and optical interface of E3  based network interface. It conforms to the ITU- T G.703 T3 recommendation.  The converter features compactness, light weight, low power consumption and high reliability. The 34M E3 fiber converter optical / electrical operates on 1310 nm lasers, with a typical…

STM1 converter / OC3 Electrical to Optical converter

AN-STM1/SM is an STM-1 converter for STM-1 electrical and optical interface conversion. It is designed for the SDH equipment coaxial interface and optical interface interconnect, as well as the ATM 155.520 Mbps interface and SDH device interconnection. Now available in WDM (single fiber version)! Complete loop-back facility is supported for system diagnostic and commissioning. Compact casing and simple operation achieve the…

4 port RS-232/RS-485/RS-422 over optical fiber multiplexer / modem

Fiber modem can be connected with computer or other devices via Lotus screw type terminal. This is a small and flexible device which can solve the problem of traditional RS232 communication conflict between distance and rate. Electromagnetic interfere, lightning interfere ,improve the reliability ,safety, and security of data communication, suitable for industrial control, procedure control, and traffic control, especially for…

RS422 fiber modem

RS422 fiber modem is small and easy use. It easily solves the problem of traditional RS422 communication conflict between distance and rate. Electromagnetic interfere, lightning interfere, improve the reliability, safety, and security of data communication, suitable for industrial control,procedure control,and traffic control,especially for system in bank, electric, and environment which having special requirement for electromagnetic interfere. Applications: military control, industrial…

RS485 fiber modem

RS485 fiber modem is small and easy use. solve the problem of traditional RS485 communication conflict between distance and rate. electromagnetic interfere,lightning interfere, improve the reliability, safety, and security of data communication, suitable for industrial control, procedure control,and traffic control,especially for system in bank, electric, and environment which having special requirement for electromagnetic interfere. application domain: military control, industrial control,traffic…

RS232 fiber modem

Fiber modem connect with DB9 RS232 port of computer or other devices,small and flex. solve the problem of traditional RS232 communication conflict between distance and rate. Electromagnetic interfere, lightning interfere ,improve the reliability ,safety,and security of data communication, suitable for industrial control, procedure control,and traffic control,especially for system in bank, electric, and environment which having special requirement for electromagnetic interfere.…

V.35 fiber modem

AN-FM-V35 is a high-performance V.35 fiber optic modem developed by using a dedicated integrated circuit. It is to modulate N*64K V.35 data signal directly over single- or multi-mode optic fiber for a transmission via optic cable line. At another end of the optic cable, optical signal is demodulated into a V.35 data signal. V.35 interface may be directly connected with…

2 Voice (FXS/FXO) POTS fiber multiplexer / converter, with additional Ethernet port

This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities. AN-FM-PCM08 fiber mux can provide 2 channels, plain old telephone POTS standard through optical cable, the network application…

4 Voice (FXS/FXO) POTS fiber multiplexer, 1 x Ethernet port as option

This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities. AN-FM-PCM04 fiber mux can provide 1-4 channels, telephone through optical cable, the network application is point-to-point, supporting FXO/FXS.…

8 Voice (FXS/FXO) POTS fiber multiplexer, Ethernet & E1, serial ports as options

This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities. AN-FM-PCM8 fiber mux can provide 1-8 channels, telephone through optical cable, the network application is point-to-point, supporting FXO/FXS.…

16 Voice (FXS/FXO) POTS fiber multiplexer

This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities. AN-FM-PCM16 fiber mux can provide 1-16 channels, telephone through optical cable, the network application is point-to-point, supporting FXO/FXS.…

360 Voice (FXS/FXO) POTS phone over fiber multiplexer

AN-FM-700 Voice (phones) over Fiber multiplexer is a kind of point-to-point fiber transmission  multiplexer that developed based on special large scale integrated circuits. It is with perfect alarm function and a phone convergence card.It can use 12 piece of 30 channels phones business card simultaneously in the Machine frame.360 channels phones (optional),1~4 E1 and  1~4 100M linear Ethernet ports (optional).it Provide…

30 Voice (FXS/FXO) POTS fiber multiplexer

This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities. AN-FM-PCM30 fiber mux can provide 1-8 channels, 1-16 channels, 1-24 channels, or 1-30 channels telephone through optical cable,…

GEPON ONU with 4 x 100Mbit/s Fast Ethernet + 1 CATV (RF) port

AN-E-ONU-4100-TV (4FE+RF) is a FTTH bandwidth access equipment, (integrated with Ethernet, and CATV). Based on mature and stable GEPON technology, it has powerful functions with high stability ,sound QoS guarantee , comprehensive management and flexible networking construction, etc. AN-E-ONU-4100-TV technology standard fully complies with ITU-T, IEEE, YDT and telecommunication technology standard.   AN-E-ONU-4100-TV is terminal device for single EPON user…

GEPON ONU model AN-ONU-1100-TV – 1 x 100Mbit/s + 1 x 1000Mbits & CATV port

GEPON ONU model AN-ONU-1100-TV - 1 x 100Mbit/s + 1 x 1000Mbits & CATV port - FTTH access compact unit with 2 Ethernet ports - 1 x FE and 1 x GE + 1 CATV port for TV connection.   AN-ONU-1100-TV lays aside in the commercial building or the apartment to access the IP service, traditional access service and the…

GEPON ONU model AN-E-ONU-5200-TV – 5 x 10/100 Ethernet ports + 1 x 1000 port & 1 CATV port

ONU-5200-TV provides 5 x 10/100 Ethernet ports + 1 x 1000 port & 1 CATV port.   AN-E-ONU-5200-TV lays aside in the commercial building or the apartment to access the IP service, traditional access service and the digital special line service in the sole platform. Complete the management and disposition through the synthesis management system which are provided by MSC.

Economy ONU: 1 Gigabit Ethernet port only

AN-E-ONU1000 is CPE equipment of GEPON OLT with a 1 Autosensing 10/100/1000 Gigabit Ethernet interface only. It is special designed for FTTH (Fiber to the Home) and FTTB (Fiber to the Building), but where tight budget constraints apply, and no other type of ports are needed.   ONU (Optical Network Unit) is the user equipment of GEPON. It can end…

GEPON ONU – 24 ports high capacity ONU for FTTB applications

AN-E-ONU-24000 lays aside in the commercial building or the apartment to access the IP service, traditional access service and the digital special line service in the sole platform. Complete the management and disposition through the synthesis management system which are provided by MSC.

GEPON ONU – customer unit 1 CATV + 4 FE + 2 FXS/FXO

AN-ONU-FTTH-01 lays aside in the commercial building or the apartment to access the IP service, traditional access service and the digital special line service in the sole platform. Complete the management and disposition through the synthesis management system which are provided by MSC.

GEPON ONU – customer unit 1 10/100 Mbit/s Fast Ethernet and 1 PON port

AN-E-ONU100 lays aside in the commercial building or the apartment to access the IP service, traditional access service and the digital special line service in the sole platform. Complete the management and disposition through the synthesis management system which are provided by MSC.   ONU is a equipment used in PON networking system to provide data service for end users.The…

GEPON ONU – customer unit 4FE + 2FXS/FXO

GEPON ONU adopts single fibre WDM technology with downlink wavelength 1490nm and uplink wavelength 1310nm .It only needs one-core fibre to transmit data, VOIP services at the same time. The transmission distance is up to 20km.   AN-ONU-FTTH-02 GEPON ONU lays aside in the commercial building or the apartment to access the IP service, traditional access service and the digital…

8 x 10/100 Fast Ethernet GEPON ONU unit

EPON Technology is a rising technology that combines with PON and Ethernet Technological superiority. It is a technology that point to multi-point networking. Through the Passive Optical Networking, the OLT device gather together with many ONU devices for interconnection, and it is combined with the technology of SFP BIDI, so EPON system could use less fiber resources to meet the…

GEPON ONU – 1 Gigabit + 1 Fast Ethernet port micro access unit

This is a most popular and smallest ONU from AD-net offered ranage now - it has a 2 ethernet interfaces, 1 FE and 1 GE, and can be used for SOHO/FTTH access, for connecting such services, like IPTV, internet access and telephony

AN-CWDM-MUX modular access system

AN-CWDM-MUX modular access system is designed to transmit multi-protocol signal one same fiber between 2 end points. The whole system is supported by AN-CWDM-MUX series chassis and CWDW-M series Module cards. From 2 to 16 different signal streams between 2 points can be transmitted by one or a pair of fiber. AD-net's AN-CWDM-MUXseries CWDM devices can effectively replace layout of…

SNMP & LCD panel managed multiservice fiber multiplexer

SNMP managed, LCD console equipped, carrier class double 155 Mbit/s fiber multiplexer with modular service cards approach: n x E1, n x V.35. n x Ethernet at your choice. AN-FM-600 Modular Integrated Transmission Multiplexer can provide full speed 100Mbps fast Ethernet (FE) interface in accordant with IEEE802.3 and E1 interface complying with 16-channel standard. At the same time, it also…

Video / Audio over E1 multiplexer

AN-DV-E1 series E1 video coder & decoder, mainly used in long-distance video monitoring, have function of E1 single directional transmitting video signal. It is ensured that any device with E1 interface, such as PBX, Mobile base station, SS7 signaling device and voice post system, can seamlessly connect to E1 video coder & decoder. Also, E1 video coder & decoder can…

Mini type 4 x E1 G.703 over fiber multiplexer

The AN-FM-120 is a fiber media transport for 4 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. Special mini type version model can be used anywhere where space is limited, like outdoor boxes and cabinets, high equipment density populated areas and elsewhere!…

E1 G.703 fiber modem

AN-FM-30 E1 G.703 fiber modems / converters can be used in applications, when electrical E1 G.703/G.704 signal conversion and transmission to high distances are needed. Traditional E1 120 ohm interface, which uses UTP twisted pair, transmission distance is only 100 m. What to do, if distance is more than 1 km, moreover - 100 and more km? The AN-FM-30 is not just…

SNMP software

AN-NM-VIEW Ver3.0 is state-of-art SNMP management software what can be used for network control, management and quick fault allocation features. Along with rapidly development of construction and application of large-scale internet, the wide application of new technology and new equipment makes the network even more complicated. Under such circumstances, resource distribution degree and sharing degree have enhanced greatly, any small…

SNMP card

Along with rapidly development of construction and application of large-scale internet, the wide application of new technology and new equipment makes the network even more complicated. Under such circumstances, resource distribution degree and sharing degree have enhanced greatly, any small breakdown may cause user failure of application. How to discover and eliminate potential breakdown soon and effectively manage network well…

16 port 4U rack

AN-CH03 can support 16 function card and 2 power supply card. AN-CH03 full configuration: 1 SNMP card, 15 (or 16) function card and 2power supply module (1 redundant module) Supports AD-net complete protocol converter series, fiber modem series , 4E1 fiber optical mux series. Centralized SNMP rack mount solution allows network operator efficiently use expensive collocation place in racks, monitor…

12 port 6U rack

AN-CH02 can support 12 function card and 2 power supply card. AN-CH02 full configuration:  1 SNMP card, 12  function card and 2 power supply modules (1 redundant module) AD-net AN-CH02 chassis support our complete fiber optical mux series, AN-4E1-ETH, AN-8E1-ETH Centralized SNMP rack mount solution allows network operator efficiently use expensive collocation place in racks, monitor network and deploy efficient…

16 port 4U rack

AN-CH01 can support 16 function card and 2 power supply card. AN-CH01 full configuration:  1 SNMP card, 15 (or 16) function card and 2power supply module (1 redundant module) Supports AD-net  complete protocol converter series, fiber modem series , 4E1 fiber optical mux series. Centralized SNMP rack mount solution allows network operator efficiently use expensive collocation place in racks, monitor…
