n x E1 G.703 series fiber mux (7 Products)

When you are in need of sending E1 G.703 or more than a one – even 63 E1’s over the same fiber, then look no further than this subcategory. In different cases they have different names – PDH mux, E1 fiber mux, but at the end of the day it’s same product.

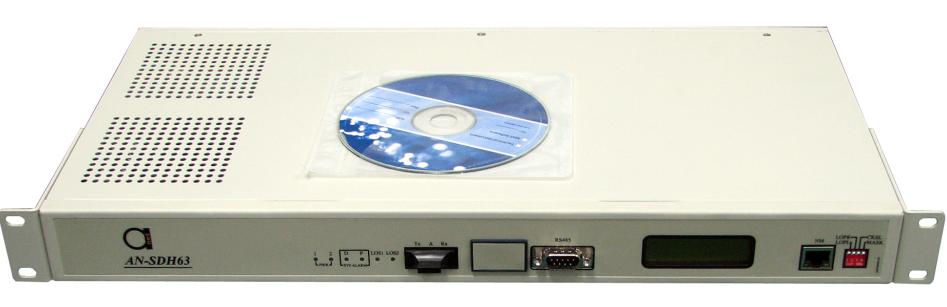

63 x E1 G.703 over fiber multiplexer

As a key member of AD-net SDH/MSPP Product family, AN-SDH63 is a carrier-class, cost-effective, compact (only 1U high) SDH/MSPP platform that is designed for applications in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers. It can provide 63E1 TDM interfaces in only 1U standard 19” box. AN-miniSDH is best…

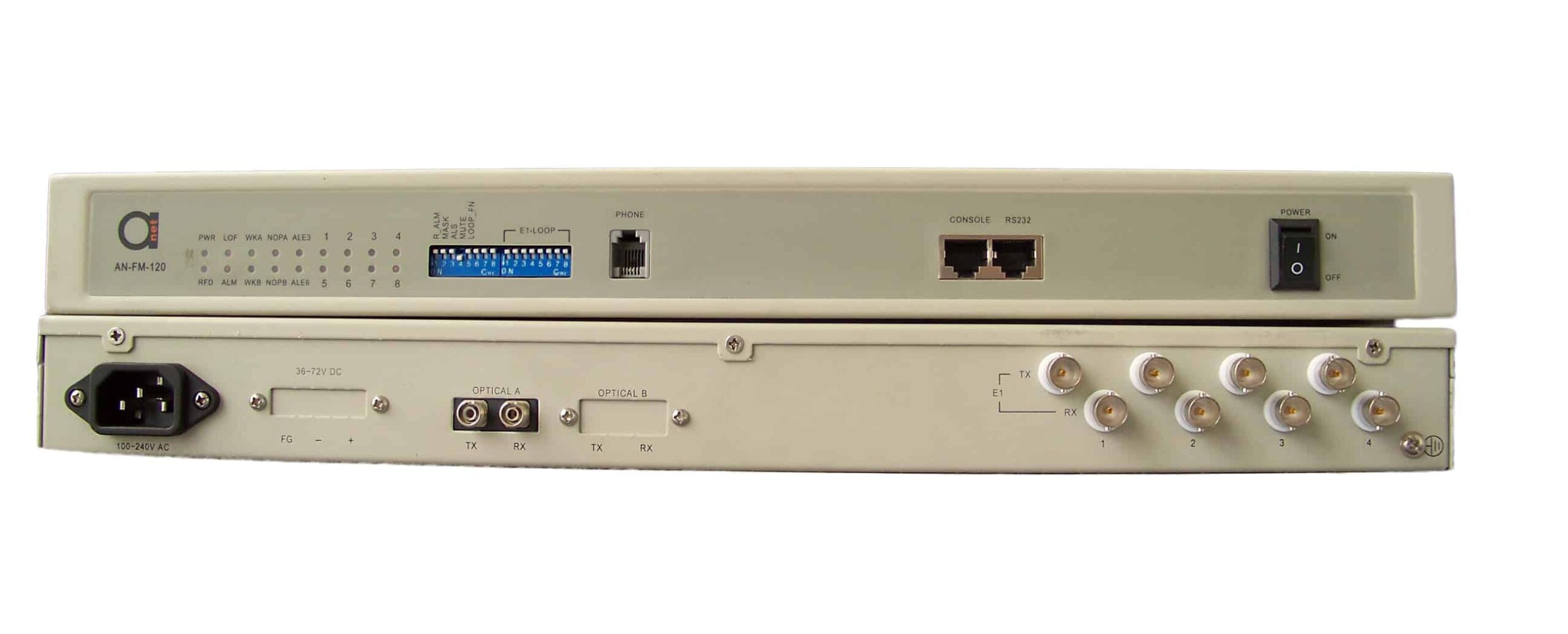

4 x E1 G.703 over fiber multiplexer

The AN-FM-120 is a fiber media transport for 4 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

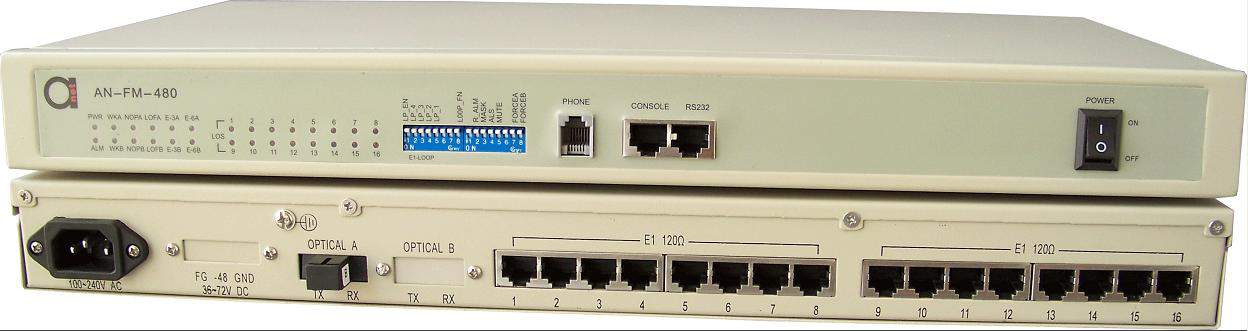

16 x E1 G.703 over fiber multiplexer

The AN-FM-480 is a fiber media transport for 16 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

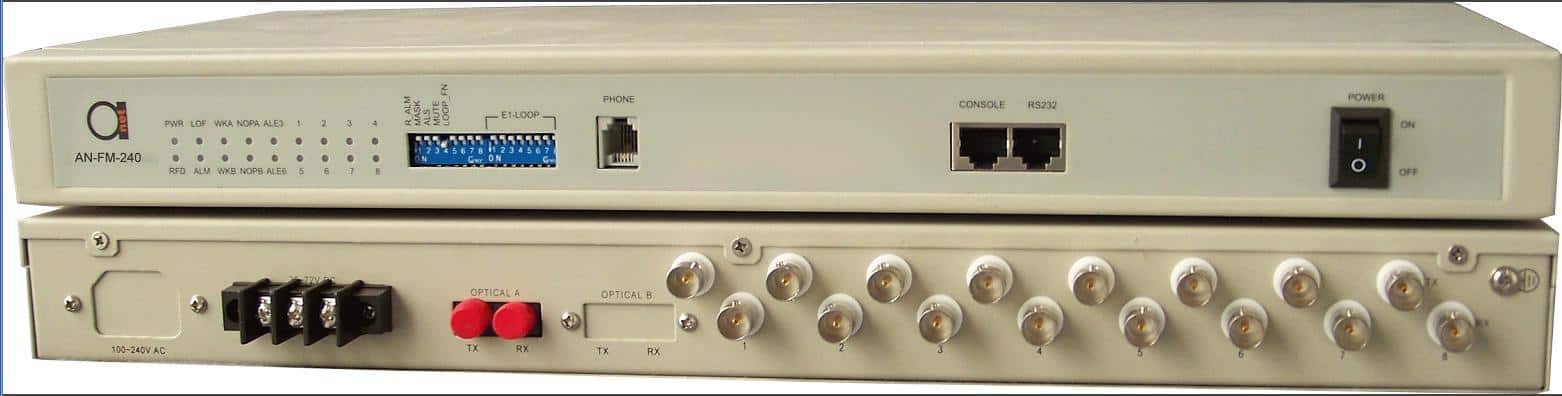

8 x E1 G.703 over fiber multiplexer

The AN-FM-240is a fiber media transport for 8 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are available…

Framed E1 G.703/G.704 fiber modem

As it is widely known, G.703 is typically transported over balanced 120 ohm twisted pair cables terminated in RJ48C jacks. However, some telephone companies use unbalanced (dual 75 ohm coaxial cables) wires, also allowed by G.703. Distance in this cases does not exceeds 100 m, and that is serious drawback. One way is use the GSHDSL modems, what can help…

Mini type 4 x E1 G.703 over fiber multiplexer

The AN-FM-120 is a fiber media transport for 4 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. Special mini type version model can be used anywhere where space is limited, like outdoor boxes and cabinets, high equipment density populated areas and elsewhere!…

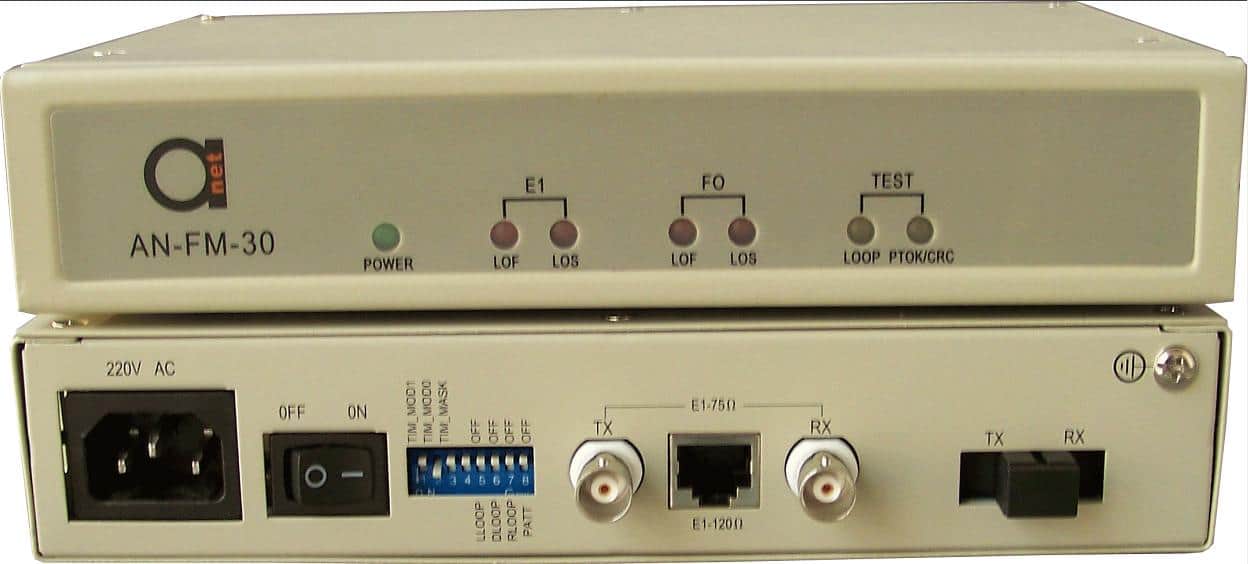

E1 G.703 fiber modem

AN-FM-30 E1 G.703 fiber modems / converters can be used in applications, when electrical E1 G.703/G.704 signal conversion and transmission to high distances are needed. Traditional E1 120 ohm interface, which uses UTP twisted pair, transmission distance is only 100 m. What to do, if distance is more than 1 km, moreover - 100 and more km? The AN-FM-30 is not just…
