Impedance converters (baluns) (7 Products)

It just happens sometimes when your E1 converter has RS-45 on board and your cables are BNC or vice versa. There is an easy way to solve these problems using single type balun 75 120 ohm and rack mount baluns.

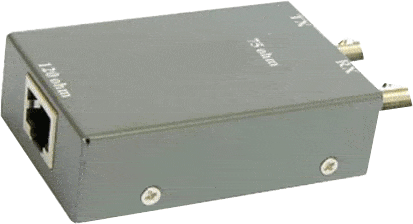

Metal casing single port balun

75/120 Ohm impedance matching baluns (G703 balun) allow users to use inexpensive shielded twisted pair cabling in place of expensive coaxial cabling. Especially useful in telecommunication applications for patching at the distribution frame. Units meet CCITT Recommendation G703 and are great for American or European applications. Supporting E1 data rates to 2.048 Mbps, the AN-IC-M receives 75 ohm signals and converts them…

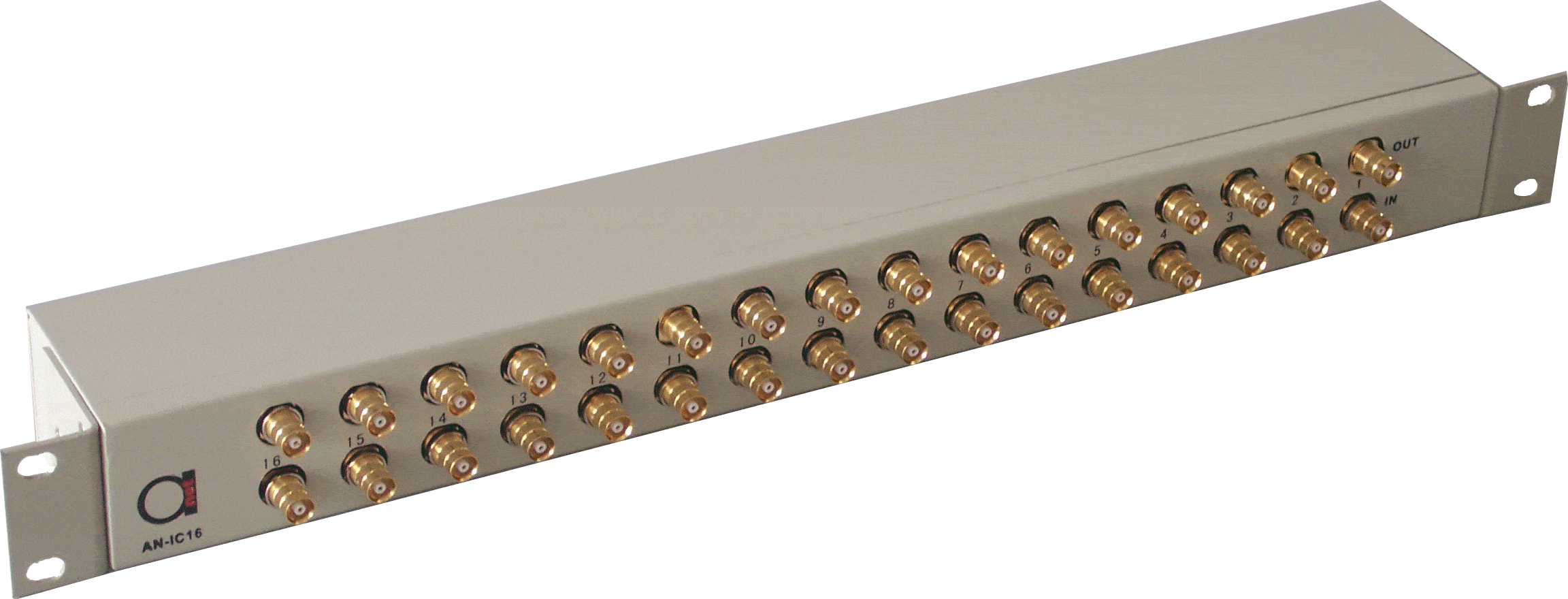

16 ports converter with L9 (DIN1.6/5.6) connectors

AN-IC16 G.703 rack mount balun panel lets you match the connectors, impedance and signal characteristics of up to 16 dual coax L9 (DIN1.6/5.6) connections (75 ohm) with up to 16 twisted pair connections (120 ohm). Operating in compliance with the CCITT G.703 specification, the AN-IC16 occupies only 2U (3.5"/8.9 cm) of vertical rack space in a 19" (48.3 cm) rack-allowing…

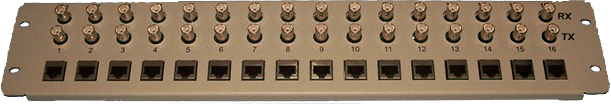

Front Mount Coax(75ohm) to RJ45(120ohm) 16 port balun panel with DB68 connector

G.703 rack mount balun panel lets you match the connectors, impedance and signal characteristics of up to 16 dual coax BNC connections (75 ohm) with up to 16 twisted pair connections (120 ohm). Operating in compliance with the CCITT G.703 specification, the AN-IC16-DB68 occupies only 2U (3.5"/8.9 cm) of vertical rack space in a 19" (48.3 cm) rack-allowing for efficient multiport matching.…

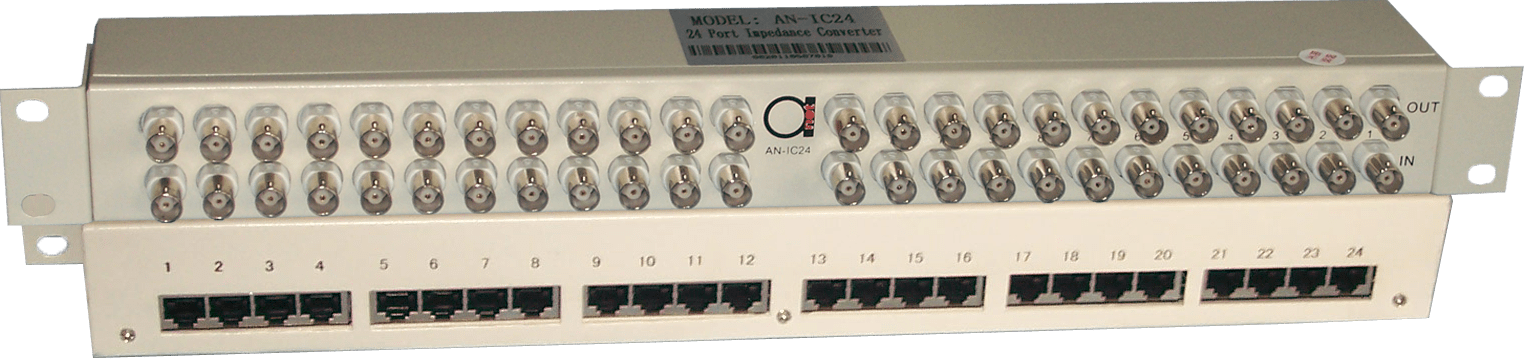

24 ports 75 to 120 ohm RJ-45 BNC impedance conversion balun panel

AN-IC24 balun panel G.703 rack mount balun panel lets you match the connectors, impedance and signal characteristics of up to 24 dual coax BNC connections (75 ohm) with up to 24 twisted pair connections (120 ohm). Operating in compliance with the CCITT G.703 specification, the AN-IC24 occupies only 2U of vertical rack space in a 19" rack-allowing for efficient multiport…

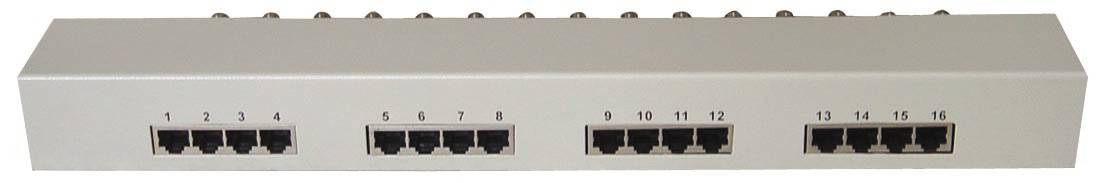

16 ports 75/120 ohm balun converter panel

AN-IC16 G.703 rack mount balun panel lets you match the connectors, impedance and signal characteristics of up to 16 dual coax BNC connections (75 ohm) with up to 16 twisted pair connections (120 ohm). Operating in compliance with the CCITT G.703 specification, the AN-IC16 occupies only 2U (3.5"/8.9 cm) of vertical rack space in a 19" (48.3 cm) rack-allowing for…

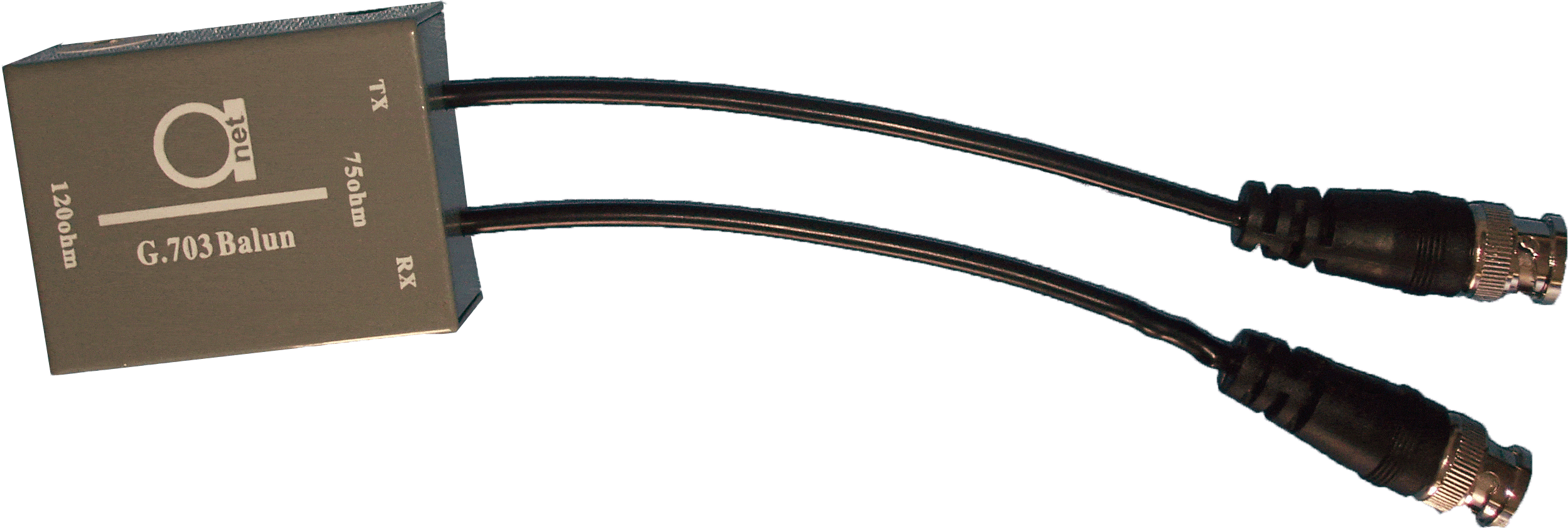

Cable type single port 75 120 ohm converter

AN-IC-C1 is single port balun G703 E1 interface cable type impedance converter (75Ω dual coax and 120Ω twist pair). It is used conveniently without power supply. Two coaxial cables are assemblied with converter, which make it's use more easy as ever.

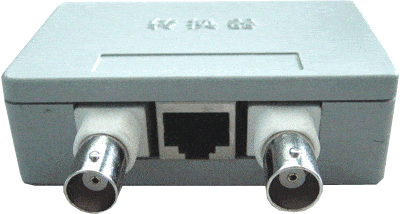

Balun 75 120 ohm – Single Port Converter

75/120 Ohm impedance matching balun 75 ohm allow users to use inexpensive shielded twisted pair cabling in place of expensive coaxial cabling. Especially useful in telecommunication applications for patching at the distribution frame. Units meet CCITT Recommendation G703 and are great for American or European applications. Single port balun 75 120 ohm supports E1 data rates to 2.048 Mbps, the AN-IC…
