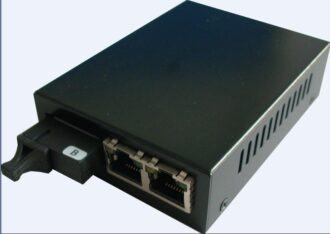

1 Fiber port & 2 x 10/100Base TX converter (1 FX + 2 TX)
AN-UM-100-2TX series ethernet to fiber converters are sophisticated and same time easy fiber optical media converter, with 1 100FX port, and 2 UTP 10/100BaseT TX ports, which can support both tagged and port based VLAN's and converter can be managed by RS-232 integrated console port.
- 2 ports 10/100Mbps and full/half duplex automatically configure in TP port.
- Ethernet to fiber converter is compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards
- MDI/MDI-X Auto Negotiation
- RS-232 port for Hyperterminal or any other terminal software management;
- Tagged dot1Q or port based VLAN’s supported at TX ports;
- LED Indicators: POWER, FX LINK/ACT, 100, TP LINK/ACT, FDX/COL.
- Supports LLR (Link Loss Return) for FX Port & LFP functions
- Wall-Mountable & Standalone
- FCC Class A & CE approved
Wavelength
Multi-mode: 1310nm; Single-mode: 1310nm, WDM bidi versions available, single fiber.
Fiber cable(m):
8.3/125, 8.7/125, 9/125 or 10/125 single-mode
Maximum distance: Multimode;2km(Default), Single-mode;20km/(Default)40km/60km/80km/100km/120km
Power supply: 100 to 240VAC 50 to 60Hz
Input power: 2A +5V,
Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)
Environment
Relative humidity: 5% to 90%
Operating temperature: 0 to 60
Storage temperature: -20 to 70
| AN-UM-2TX100-1 | 10/100 Base-TX/FX Bridge Converter 2Km SC Connector (Multimode) |
|
| AN-UM-2TX100-2 | 10/100 Base-TX/FX Bridge Converter 2Km ST Connector (Multimode) |
|
| AN-UM-2TX100SM-XX | 10/100 Base-TX/FX Bridge Converter XX=(20/40/60/80/100/120) Km SC Connector (Single mode) |
|
| AN-UM-2TX130-XX | 10/100 Base-TX/FX Bridge Converter XX=(20/40/60) Km SC Connector (TX=1330 nm) |
|
| AN-UM-2TX150-XX | 10/100 Base-TX/FX Bridge Converter XX=(20/40/60) Km SC Connector (TX=1550 nm) |
Description
AN-UM-100-2TX series ethernet to fiber converters are sophisticated and same time easy fiber optical media converter, with 1 100FX port, and 2 UTP 10/100BaseT TX ports, which can support both tagged and port based VLAN’s and converter can be managed by RS-232 integrated console port.
AN-UM-100-2TX series ethernet to fiber converters are media converters what makes easy conversion between 10/100BaseTx and 100BaseFx segments, converter supports Link Fault Pass Through (LFP) function, for easy tracing of network link failures, and the LFP function enhances integrity and conformity of twisted pair (TP)-Fiber linking to make the network easier to maintain.
In fact, AN-UM-100-2TX also is a simple VLAN supporting 1 port fiber switch – but so small and and compact, that it makes it in ethernet to fiber converter family – but still with powerful VLAN switch features!
Additional information
| Fast Ethernet 10/100 | Any |
|---|
