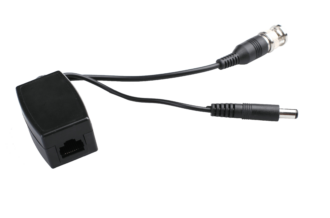

1 port Video + Power over Cat5 HD AHD/TVI/CVI 1080p Balun, BNC & RJ-45 ports

Transmit video and power (24VAC/ 12VDC) signal through CAT5 cable
Up to 200 meters for 1080p color signal
No need to provide power
Built-in transient protection, excellent anti-interference ability
RJ-45 terminal, easy to install

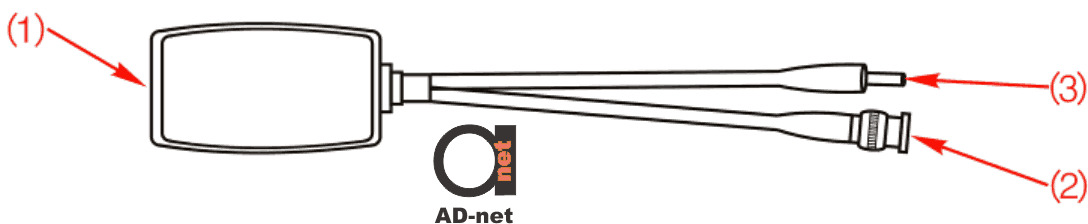

(1) — Power and Video IN or OUT

(2) — Video IN or OUT

(3) — Power IN or OUT

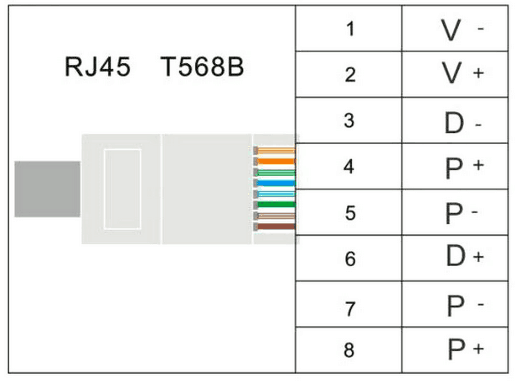

Pay much attention to RJ-45 pin description and line order
Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port

AN-VB-HD-P1

1 port Video + Power over Cat5 HD AHD/TVI/CVI 1080p Balun, BNC & RJ-45 ports

Description

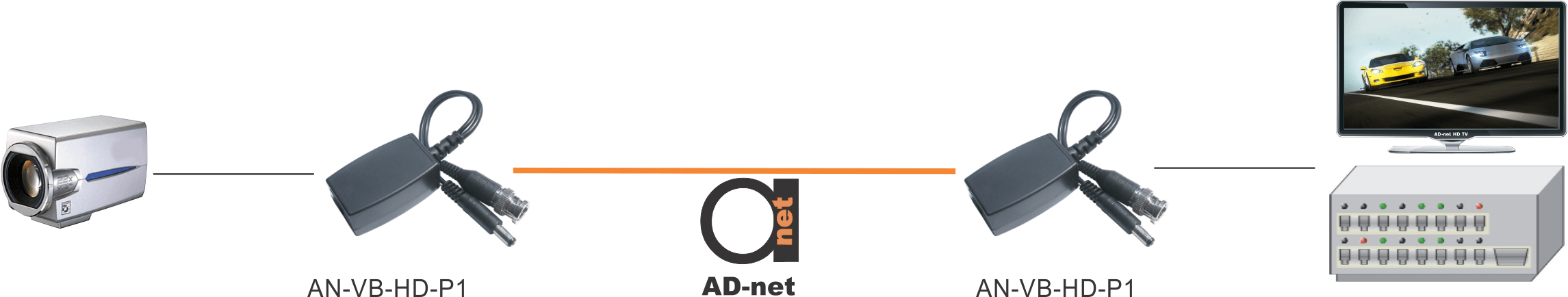

AN-VB-HD-P1 is a passive high definition balun with transmission distance of color signal up to 200m. It can transmit the video and power signal at the same time. It can be used as both transmitter and receiver, suitable for the expansion and application of HDTVI/CVI/AHD video surveillance system, such as office building, community, school and hospital, etc.
