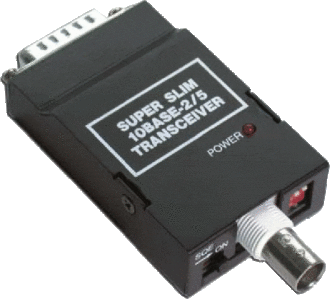

10Base-2 to 10Base-5 (AUI) Super Slim Transceiver / Media converter

AN-10B2-10B5 super slim 10 Base-2/5 Transceiver for apple Macintosh workstations and SUN SPARC, IBM RISC/6000 is a small, lightweight transceiver used to connect you existing Thick Ethernet adapter card environment to a 10 Base-2 Thin Ethernet network.

Super Slim design ideal for narrow slot spaces such as Sun Sparc, IBM RISC/6000 and Apple Macintosh workstations.
SQE switch provided 1 LED for Power indicate status.
Converts existing Thick Ethernet Card/10Base-2 application.
Conforms to IEEE 802.3 10 Base-2 and 10 Base-5 standard

Interface:
DB-15 male connector to 10 Base-5
BNC connector to 10 Base-2

Cable length:
500 m maximum per Thick Ethernet
185 m maximum per Thin Ethernet

LEDs: POWER
Temperature: 0 to 55 degree (standard operating)
Humidity: 10 to 90% (non-condensing)
Standard: IEEE 802.3 10Base-5/2 Ethernet
EMI: Meets FCC Class A Subpart B of Part 15 Requirement
Technique: Baseband
Dimensions: 3/4″ x 2 3/5″ x 1 3/8″

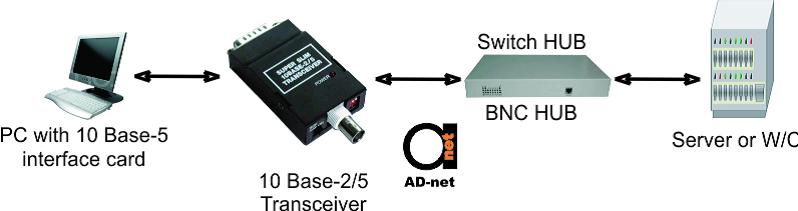

Application scenario

AN-10B2-10B5

Ethernet Super Slim 10Base-2/5 Transceiver

Description

AN-10B2-10B5 Super slim 10 Base-2/5 Transceiver for apple Macintosh workstations and SUN SPARC, IBM RISC/6000 is a small, lightweight transceiver used to connect you existing Thick Ethernet adapter card environment to a 10 Base-2 Thin Ethernet network. Its model enables you to get into narrow slot spaces. The transceiver simply converts signals from the standard Ethernet transceiver cable to a suitable format for transmission over Thin Ethernet coaxial cables to each workstation.
