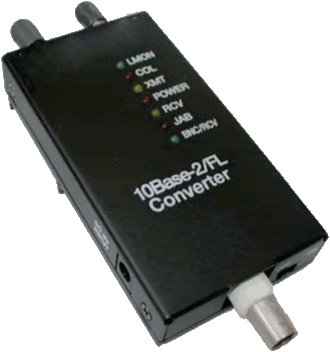

10Base-2 to 10Base-FL Ethernet Converter

AN-10B2-10BFL provides quick and easy conversion between BNC Jack for 10Base-2 to ST Connector for 10Base -FL - single or multimode type.

Interface: BNC Jack for 10Base -2 ,ST Connector for 10Base -FL

Cable length:
185 m maximum per Thin Coaxial cables
20Km 9/125um Single -Mode duplex Fiber Cable
2Km62.5/125um Multi -Mode duplex Fiber Cable

External Power:
Input 110V or 220V AC
Output 9V DC, 1 Amp

Temperature:
0 to 55 degree (standard operating)

Humidity:
10 to 90% (non-condensing)

Dimensions: 10 to 90% (non-condensing)
Standard: IEEE 802.3 10Base-2/10Base-FL Ethernet
EMI: IEEE 802.3 10Base-2/10Base-FL Ethernet
Technique: Baseband
LAN Expansion: Coaxial expand upon to 30 Daisy Chain
Topology: Coaxial expand upon to 30 Daisy Chain
Protocol: CSMA/CD

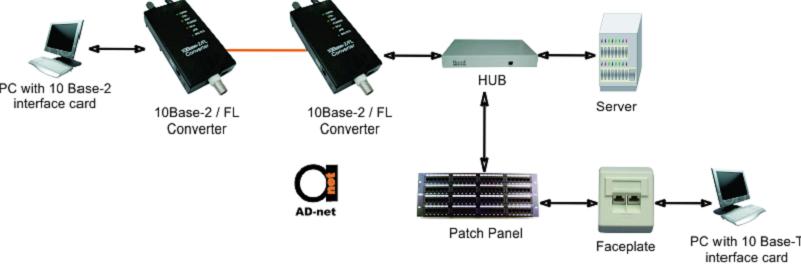

Application scenario:

AN-10B2-10BFL/MM	Ethernet 10Base-2/FL Multi-Mode Converter
AN-10B2-10BFL/SM	Ethernet 10Base-2/FL Single-Mode Converter

Description

AN-10B2-10BFL providers quick and easy conversion between BNC Jack for 10Base-2 to ST Connector for 10Base -FL – single or multimode type. AN-10B2-10BFL is a perfect solution to end your cabling headaches. No more cable distance restrains. The extender works in conjunction with a 10Base-2 Hub to double the 185-meter distance of the cable run to the workstations.Fiber optic cable up to 20 km (Single-Mode) & 2 km (Multi-Mode) The extender features included of 7 LEDs on POWER, LINK, RCV, COL, which is required external power and fully compatible with IEEE 802.3 10Base-2 and 10Base-FL standard.
