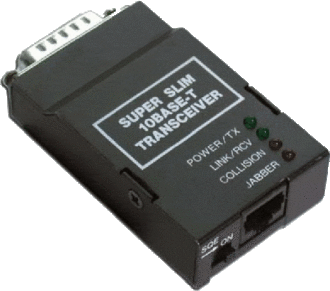

10Base-T to 10Base5 (AUI) Super Slim Transceiver / media converter

AN-10BT-10B5 converter simply repeats signals from the Thick Ethernet to a suitable from for transmission over UTP wires to the 10Base-T HUB or similar HUB.

Super Slim design ideal for narrow slot spaces such as Sun Sparc, IBM RISC/6000 and Apple Macintosh workstations.
SQE switch provided
4 LEDs for Link/Rcv, Collision, Power/TX, Jabber indicate status.
No external power required.
Converts existing Thick Ethernet Card/10Base-T application.

Interface:
DB-15 male to 10 Base-5
RJ-45 Jack to 10 Base-T

Cable length: 100 m max. per UTP cable
LEDs: 0 to 55 degree (standard operating)
Temperature: 0 to 55 degree (standard operating)
Humidity: 10 to 90% (non-condensing)
Standard: IEEE 802.3 10Base-5/T Ethernet
EMI: Meets FCC Class A Subpart B of Part 15 Requirement
Technique: Baseband
Dimensions: 3/4″ x 2 3/5″ x 1 3/8″

AN-10BT-10B5

Ethernet Super Slim 10Base-5/T Transceiver

Description

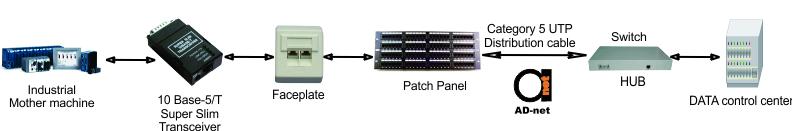

AN-10BT-10B5 converter simply repeats signals from the Thick Ethernet to a suitable from for transmission over UTP wires to the 10Base-T HUB or similar HUB. Super slim 10 Base-5/T Converter to connect your existing Thick Ethernet Network environment to a 10Base-T UTP network.
