10Base-T to AUI (Attachment Unit Interface) Ethernet

AN-10BT-AUI Ethernet 10Base-T/AUI Repeater / Converter can be used to connect your existing Thick Ethernet Network environment to a 10Base-T UTP network.

4 LEDs for Link, Collision, TP Receive.
Power indicates light to troubleshooting & network maintenance.
Includes external 12V DC/500 mA power adapter.
Converts existing Thick Ethernet to a 10Base-T network.
Conforms to IEEE 802.3 10 Base-T standards.

Interface:
1xDB-15 female to 10 Base-T/AUI
1xRJ-45 Jack to 10 Base-T

Cable length:
500 m max. per Thick Ethernet
100 m max. per UTP cables

LEDs: POWER, COL, LINK, TP/RCV 0 to 55 (standard operating)
Temperature: POWER, COL, LINK, TP/RCV 0 to 55 (standard operating)
Humidity: 10 to 90% (non-condensing)
Standard: IEEE 802.3 10Base-T/AUI Ethernet
EMI: Meets FCC Class A Subpart B of Part15 Requirement
Technique: Baseband
Dimensions: 4.2″ x 2.2″x 0.8″

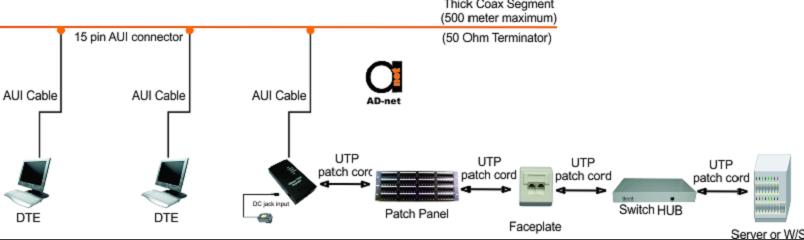

Application scenario:

AN-10BT-AUI

Request price

Ethernet 10Base-T/AUI Repeater /Media converter

Description

AN-10BT-AUI ethernet 10Base-T/AUI Repeater to connect your existing Thick Ethernet Network environment to a 10Base-T UTP network. The converter repeats signals from the Thick Ethernet to a suitable from for transmission over UTP wires to the 10Base-T HUB or similar HUB.
