10Base2 (10B2) Ethernet Signal Extender

AN-10B2-2 extender works in conjunction with a 10Base-2 Hub to double the 185meter distance of the cable run to the workstations.

Interface: 2 BNC Jack
Cable length: 185 M maximum per Thin Coaxial cables.
External Power: Input 110V or 220V AC Output 12V DC, 1 Amp
Temperature: 0 to 55C (standard operating)
Humidity: 10 to 90% (non-condensing)
Dimensions: 0.79″ (H) x 2.17″ (W) x 4.09″ (D)
Standard: IEEE 802.3 10Base-2 Ethernet
EMI: Meets FCC Class A Subpart B of Part 15 Requirement
Technique: Base band Coaxial
LAN Expansion: expand upon to 30 Daisy Chain
Topology: Daisy Chain
Protocol: CSMA/CD

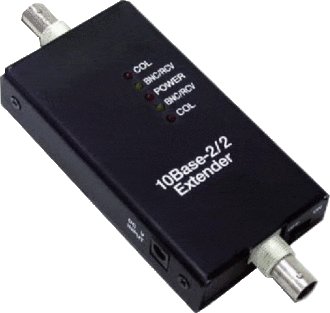

AN-10B2-2

Ethernet 10Base-2/2 Extender

Description

AN-10B2-2 extender is a perfect solution to end your cabling headaches. No more cable distance restrains. The extender works in conjunction with a 10Base-2 Hub to double the 185meter distance of the cable run to the workstations. The extender features included of 7 LEDs on POWER, LINK, RCV, COL, which is required external power and fully compatible with IEEE 802.3 10Base-2 standard.
