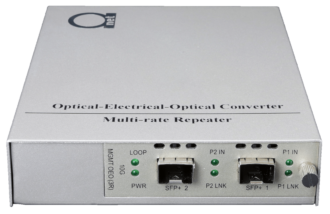

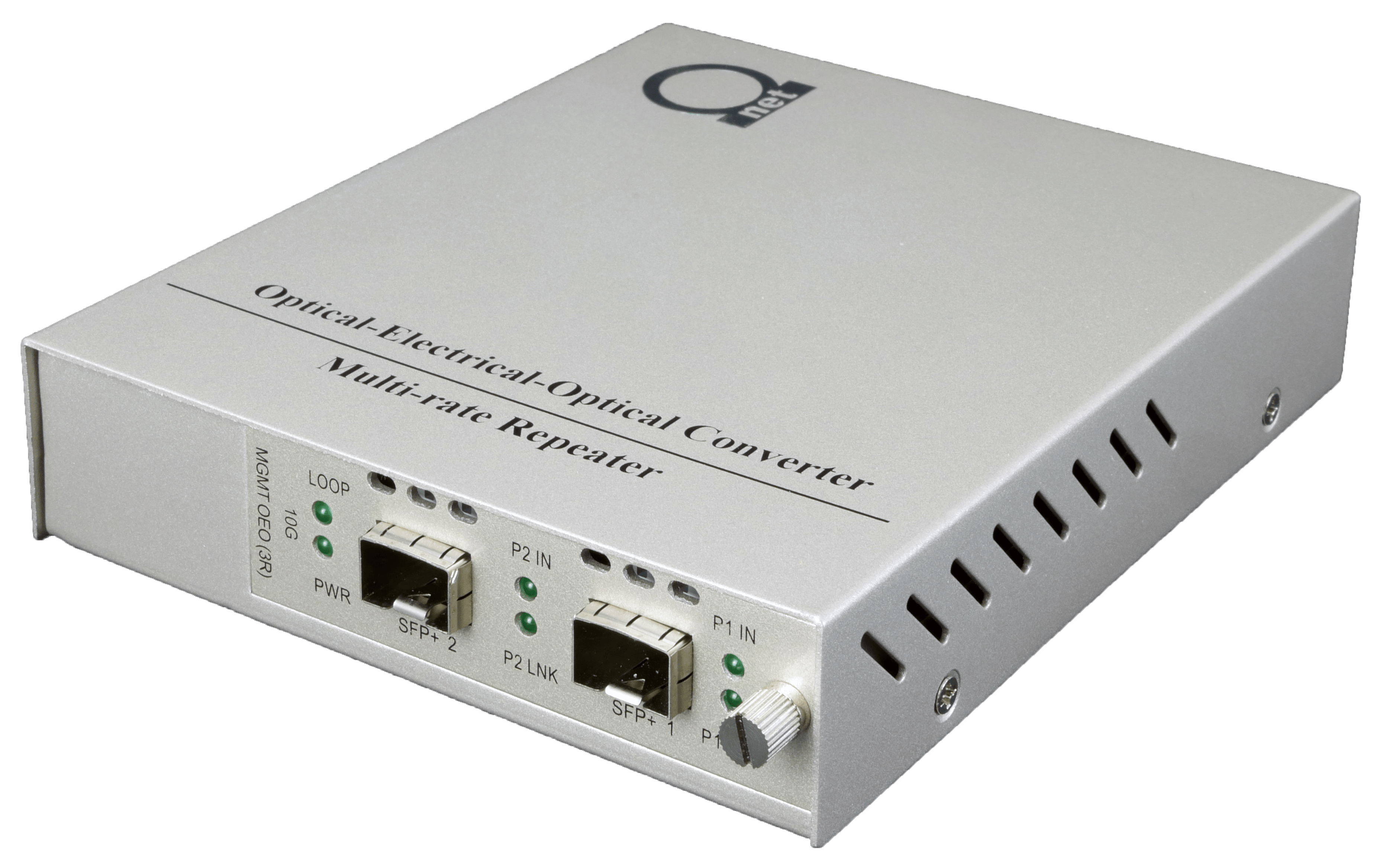

10G Optical-Electrical-Optical Converter (3R REPEATER)

AN-M10-10G-XX-M is XFP-XFP or SFP+ to XFP or SFP+ to SFP+ Optical-Electrical-Optical type media converter / repeater for connection between fiber to fiber 10Gbps equipment function as fiber mode converter ,or as fiber repeater for long distance transmission.

3R Repeater
Support Jumbo Frame
Transparent Transport and very low delay
Support ITUT prescribed DWDM/CWDM wavelength
Support DMI function for SFP+/XFP fiber module
Support PRBS31 Pattern Generator and Checker function
Support Loopback test function
Economic In-band Management function
Powerful Network Management function (Web，SNMP，Console) -used with AN-CH10 chassis
Support hot plugging
Support 2U Rack (16 slots) and standalone use
Full State Led display
Easy installation

Performance Data	Technical Indexes
Equipment function	3R Repeater / Extender / Media converter
Transmission Speed	10Gb/s (9.95Gb/s-11.35Gb/s)
Protocols	IEEE802.3ae (10Gbase-R/LRM)
Access Type	10G LAN/ 10G WAN
Interface Type	A Type: SFP+ To/From SFP+ B Type: SFP+ To/From XFP C Type: XFP To/From XFP
Transmission Distance	SFP+ module: Up to 80Km XFP module: Up to 80Km
Maximum Packet Forwarding Rate	14,880,950/S
Network management information:	• Card type information • SFP+ or XFP fiber module detection • SFP+ or XFP fiber module DMI function (Temperature 、 Voltage 、 Optical power) • Link status detector • Enable/Disabled Loopback test function • Enable/Disable PRBS Generator and checker function • Rate select (10Gbase-Lan or Wan) • Remote card’s status monitor (only in pairs)
power requirement	Rack-mountable : AC 85 ～ 220V OR DC -48V Standalone: AC 220V OR -48V Power consumption: ≤4W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% (non-condensing)
Dimension	Card ： 11.5mm (W) × 78mm (D) Standalone ： 156mm (W0 × 128mm (D) × 32mm (H)

AN-M10-10G-XX-M(A)	10G Optical-Electrical-Optical Converter (3R Repeater), A Type: SFP+ To/From SFP+
AN-M10-10G-XX-M(B)	10G Optical-Electrical-Optical Converter (3R Repeater), B Type: SFP+ To/From XFP
AN-M10-10G-XX-M(C)	10G Optical-Electrical-Optical Converter (3R Repeater), C Type: XFP To/From XFP

Description

AN-M10-10G-XX-M is XFP-XFP or SFP+ to XFP or SFP+ to SFP+ Optical-Electrical-Optical type media converter / repeater for connection between fiber to fiber 10Gbps equipment function as fiber mode converter ,or as fiber repeater for long distance transmission. It is available as standalone unit with separate external power supply, or as plug in card in AN-CH10 chassis.

It’s main applications are such as connection between fiber to fiber or fiber to copper 10Gbps equipment function as fiber mode converter ,or as fiber repeater for long distance transmission or OEO for network backbone(SAN, LAN, MAN).

It support SDH/SONET STM-64/OC-192，10G fiber channel，10G Ethernet etc and can be applied in Telecommunication room, R&D laboratory, Data center or even 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.
