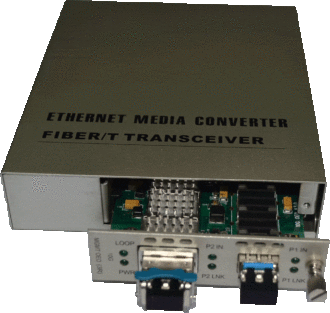

125M~4.25G Optical-Electrical-Optical Media Converter (3R Repeater)

AN-M10-4.25-C-M is 125M~4.25G Optical-Electrical-Optical Media converter Converter (3R Repeater) for Fast Ethernet, STS-3/STM-1, ESCON/SBCON, STS-12/STM-4, 1×Fiber Channel, Gigabit Ethernet, 2×Fiber Channel, STS-48/STM-16, 2.5 InfiniBand, 4×Fiber Channel applications.

Support 2U Rack (16 Slots) and independent use as standalone unit
Support network management (Web SNMP, Console)
Support in-band management
Support ITUT prescribed DWDM/CWDM wavelength
Transmission rate:125Mbps~4.25Gbps
3R function.
Support Jumbo Frame
Transparent Transport and very low delay
Support DMI function for SFP fiber module
Support Loopback test function
Support PRBS Generator and checker
Support hot plugging
Full State Led display
Easy installation

Performance Data	Technical Indexes
Equipment function	3R Repeater / Media converter / Extender
Access Type / Transmission Speed	Fast Ethernet	125Mbps
	STS-3/STM-1	155.52Mbps
	ESCON/SBCON	200Mbps
	STS-12/STM-4	622.08Mbps
	1×Fiber Channel	1.0625Gbps
	Gigabit Ethernet	1.25Gbps
	2×Fiber Channel	2.125Gbps
	STS-48/STM-16	2.48832Gbps
	2.5 InfiniBand or PCI Express	2.5Gbps
	4×Fiber Channel	4.25Gbps
Interface Type	SFP to/from SFP
Transmission Distance	Up to SFP module (Max 80Km)
Local SFP	Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules’s parameters
Remote SFP	Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules’s parameters
power requirement	Rack-mountable : AC 85 ～ 220V OR DC -48V dual-supply,optional Standalone: AC 220V OR -48V Power consumption: ≤ 3W
Work environment	Operating Temp: 0 ～ 50 ℃ Storage Temp: -10 ～ 70 ℃ Humidity: 5%~90% （ non-condensing ）
Dimension	Card ： 11.5mm (W)× 78mm (D) Standalone ： 156mm (W)× 128mm (D)× 32mm (H)

AN-M10-4.25-C-M

125M~4.25G Card managed OEO (Optical-Electrical-Optical Converter (3R Repeater)) SFP-SFP (without module) standalone media converter
