Home Products 16 E1 modular type Framed/Unframed, FXS/FXO/EM2-4/V35/V.24/RS232/422/385 TDM over IP multiplexer

16 E1 modular type Framed/Unframed, FXS/FXO/EM2-4/V35/V.24/RS232/422/385 TDM over IP multiplexer

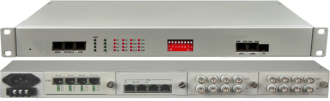

The AN-TDM-IP-MOD device is mainly used to provide 4 service card slots on the IP network. It can be inserted into the E1 module (4 E1 interfaces), voice module (4/8/16 FOX/FXS interface), V.35 module (2 channels). V.35 interface), serial interface module (4-ch RS232/422/485 interface); maximum capacity can be filled in 4 slots. Enables operators and enterprises to seamlessly and reliably connect TDM devices and user Ethernet on a standard low-cost wireless or wired Ethernet/IP fabric with no impact on voice quality. TDM over IP is transparent to TDM signals, ensuring that any device with a physical E1 interface is seamlessly connected, such as PBX, mobile base stations, SS7 signaling devices and voice mail systems. Can be used in IP-based communication systems such as LAN, WAN, MAN, and wireless networks.

  • Provide Console (CLI) and WEB management；
  • Provides 4 slot of 4*E1, 2*100M Ethernet ports, and 1*100M Ethernet SFP port；
  • E1 port can be 75Ω or 120Ω；
  • Transparent transmission of unframed/framing E1 (N*64K) signals over IP networks, in compliance with G.703 regulations；
  • The clock recovery adopts the unique clock algorithm technology, the frequency reproduction is stable, the jitter and drift are small, and the jitter and drift of the recovered clock are in accordance with G.823/G.824 and G.8261；
  • High transmission efficiency, low transmission delay; Ethernet packet length can be set, support long packet; support VLAN setting；
  • Support package loss indicator function for E1 transmission line；
  • Local and remote E1 loop and local E1 enable function；
  • High efficiency transmission, up to 90% bandwidth utility ratio；
  • Support WEB network management for online upgrade of local and remote device software and hardware；
  • Provide 4 slots plug-in modules：
    • 4×unFramed E1 module（75Ω）/（120Ω）
    • 4×Framed E1 module（75Ω）/（120Ω）,any timesolts can be set
    • 4×FXO/FXS/EM2-4/Magnet telephone module
    • 8×FXO/FXS/2 line audio/Magnet telephone module
    • 16×FXO/FXS/2 line audio/Magnet telephone module
    • 2×V.35/V.24 (2.048M Fixed speed) module
    • 2×V.35 (N*64K N=1-32) module
    • 4×RS232/422/485 module
  • E1 interface

Standard:      conform to G.703 standard

Code rate:     2.048Mbit/s±50ppm

Code type:     HDB3

Impendence: 75Ω（unbalance）/ 120（balance）

Connector: BNC（unbalance）/ RJ45（balance）

Jitter tolerance:  conform to G.742 and G.823



  • Ethernet interface(10/100M)

Interface rate:                         10/100 Mbps, half/full duplex auto-negotiation

Interface Standard:               Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability:      4096

Connector:                               RJ45, support Auto-MDIX



  • 35 interface

Interface rate:                        2048Kbps

Interface Standard:               Compatible with V.35 Standard

Connector:                               DB25

Connect Mode:                        DCE

Clock Type:                              G.703 restored clock, Internal clock



  • FXS Phone Interface

Ring voltage:                           75V

Ring frequency:                     25HZ

Two-line Impedance:            600 Ohm (pick up)

Return loss:                             40 dB



  • FXO Switch Interface

Ring detect voltage:                35V

Ring detection frequency:    17HZ-60HZ

Two-line Impedance:             600 Ohm (pick up)

Return loss:                              40 dB



  • Working environment

Working temperature:           -10°C ~ 50°C

Working Humidity:                5%~95 % (no condensation)

Storage temperature:             -40°C ~ 80°C

Storage Humidity:                  5%~95 % (no condensation)



Function

Multi-service  16E1 over IP

Ports

One SFP optic port， two 100M Ethernet ports，4 slots

Power

AC220V or DC-48V（Power optional），Support power back up

Dimension

(L×W×H)  485*138*45mm 1U rack

Weight

2.5Kg/pcs



AN-TDM-IP-MOD

Modular type TDM over IP multiplexer, provide 4 service card slots, 2*100M Ethernet ports, 1*100M Ethernet SFP port , Console (CLI) and WEB management
MOD-4E1

4* unFramed E1 module (75Ω or 120Ω)
MOD-4FE1

4* Framed E1 module(75Ω or 120Ω)
MOD-4FXS

4* FXS telephone module
MOD-4FXO

4* FXO telephone module
MOD-8FXS

8* FXS 2 line audio telephone module
MOD-8FXO

8* FXO 2 line audio telephone module
MOD-16FXS

16* FXS 2 line audio telephone module
MOD-16FXO

16* FXO 2 line audio telephone module
MOD-4EM

4* EM telephone module (2 wires or 4 wires)
MOD-4MGT

4* Magnet telephone module
MOD-8MGT

8* Magnet telephone module
MOD-16MGT

16* Magnet telephone module
MOD-2V35

2* V.35 module (2.048M Fixed speed or N*64K N=1-32)
MOD-2V24

2*V.24 module (2.048M Fixed speed)
MOD-4RS232

4* RS232 module
MOD-4RS422

4* RS422 module
MOD-4RS485

4* RS485 module

Description

The AN-TDM-IP-MOD device is mainly used to provide 4 service card slots on the IP network. It can be inserted into the E1 module (4 E1 interfaces), voice module (4/8/16 FOX/FXS interface), V.35 module (2 channels). V.35 interface), serial interface module (4-ch RS232/422/485 interface); maximum capacity can be filled in 4 slots. Enables operators and enterprises to seamlessly and reliably connect TDM devices and user Ethernet on a standard low-cost wireless or wired Ethernet/IP fabric with no impact on voice quality. TDM over IP is transparent to TDM signals, ensuring that any device with a physical E1 interface is seamlessly connected, such as PBX, mobile base stations, SS7 signaling devices and voice mail systems. Can be used in IP-based communication systems such as LAN, WAN, MAN, and wireless networks.

It is with 4 slot for 4*E1 service card, two 100M Ethernet ports, one 100M Ethernet optical port, and one console management interface.
