16 port + 1 fiber port managed switch

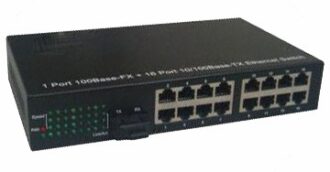

AN-M-FE4017 16 -port 10/100Mbps-TX and One (100Base-FX /100Base-T uplink port ) auto-negotiating Switch

  • Ideal for integrating the 10BaseT and 100BaseTX 16 10/100 and 1 100Base-FX ports. Provide Dedicated Bandwidth in Half or Full-Duplex Modes
  • NWAY Technology Detects Cabling Type, Speed, and Duplex mode
  • Transparent for all protocols such as TCP/IP, IPX, XNS, Appletalk, Vines, DECnet, ARP, DECLAT and Lansoft etc.
  • Compatible with All Major Network Operating Systems
  • Advanced Store-and-Forward Packet Switching Optimizes Data Transfers
  • One RS-232 console port for Local management
  • Full wire-speed layer 2 switch on all ports
  • Support port-based VLANs
  • Support Port Trunking
  • 2M Buffer Memory
  • Internal 4k MAC address table – Auto address learning – Auto address aging (default 300 Seconds)
  • Supports both Full/Half duplex ports
  • Flow control capabilities
  • Automatic Transmit delay control capabilities and maximum delay guarantee
  • Broadcast storm filtering
  • Filtering/Forwarding/Learning Rates
  • 3.6 Gbps aggregate bandwidth with speeds of up to 200Mbps per port Support Comprehensive At-a-Glance LED’s

Standard IEEE 802.3
10BASE-T IEEE 802.3U
100BASE-TX 100BASE-FX
IEEE 802.1Q
VLAN IEEE 802.1D
Spanning Tree IEEE 802.1p
Priority Queue IEEE 802.1x

Power Supply : 90 / 220 V
Power Consumption : Max 30 Watts
Dimension:4 40mm x 220mm x 44.4mm 1U rack-mount
Temperature: 0 to 50°C
Humidity: 5% to 95% non-condensing
Storage Temp. : -25 to +55 C

AN-M-FE4017

16 -port 10/100Mbps-TX and One (100Base-FX /100Base-T uplink port) auto-negotiating Switch

Description

AN-M-FE4017 Fast Ethernet Switch provides the power of switching with the ease of use and affordability of traditional shared hubs. Truly Plug-and-Play, the AN-M-FE4017 Fast Ethernet Switch automatically learns about the devices on your network and configures itself, without complicated setup procedures. Dramatic improvements in performance can easily be seen, with speeds of up to 200Mbps per port. Since full bandwidth capability is achieved on each individual port, the congestion problems of shared hubs are easily avoided.

Employing a Buffered Store-and-Forward transmission method with Back Pressure and Flow Control ensures maximum reliability. For added sturdiness, these switches are housed in steel casings and can be rack mounted using the included Rackmount kit. AN-M-FE4017Fast Ethernet Switch comes with 16-switched RJ45 ports and a 100Base-Fx uplink port.

Powerful enough to run your network’s backbone, yet so easy they can be used in place of your desktop hubs, let versatile AN-M-FE4017 Fast Ethernet Switch bring the power of switching to you
