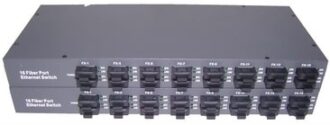

16 Port 10/100Base-Fx optical fiber ethernet switch

AN-216-X3X1 is an Optical fiber switch that offers 16 port 10/100Base-FX.

16-Port 10/100Mbps fiber module for option
Supports STORE AND FORWARD switching.
Conforms to IEEE 802.3x back pressure in half-duplex and flow control in full-duplex operation mode
Supports MAC self-learning
Dynamic LED indicators
Supports port-based VLAN
Steel case

Standard

IEEE802.3, IEEE802.3u, IEEE 802.1x

Topology

STAR

Number of Ports

16 Port 100Base-Fx

Uplink Ports

None

Transmission Rate

10Mbps: 14880pps,
100Mbps: 148800pps

Switching mode

Store and Forward

Flow control mode

IEEE 802.3x full-duplex flow control and back pressure flow control

LED Indicator

LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function

Cable Support

10Base-T: 3, 4 or Cat 5 shielded / unshielded twisted pair, 100 meters max.,
100Base-TX: Cat 5 shielded / unshielded twisted pair, 100 meters max.
100Base-Fx: 8.3μm, 8.7μm, 9μm and10μm on single mode fiber and 50, 62.5 and 100μm on multi-mode fiber

Power supply

AC:220V or DC:-48V

Temperature Humidity

	Temperature	Humidity
Operation	-20℃ to 70℃	10% to 90%
Storage	-40℃ to 75℃	5% to 95% RH

Description

The AN-216-X3X1 is an Optical fiber switch that offers 16 port 10/100Base-FX. It supports both Single optical fiber and dual optical fiber, its transmission distance ranges from 2km to 120km. This optical fiber switch works under both Half-duplex and full-duplex modes. It supports the STAR network topology and it is an ideal option for fiber to home (Ftth) optical fiber solution, city optical fiber networks,etc.
