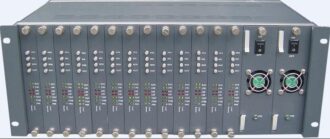

16 port 4U rack
AN-CH03 can support 1 SNMP card+12 function card and 2 power supply module (redundant), can used be for protocol converter series, fiber modem series, 4E1 fiber optical mux, making centrally located SNMP managed chassis solution.
- Support’s all type interface convertor cards, fiber modems, and (!) support mixed insert of those different boards,and functions will not be affected by each other
- You can insert 16 function boards and 2 power supply cards, and one SNMP card
- Power supply option: AC220V, DC-48V
- The positive and negative terminals can be easily exchanged for DC-48V
- Easy for installation and maintenance
- Supports power supply backup feature
- Uses standard 19 inch rack, 4U
- Convenienent for maintenance , all the LEDs in adaptor board is located on the front panel
- Sequence number of rack is displayed bynixie tube – convenient for management of large number racks used together
- Support network management
- Free SNMP software with each chassis
| AN-CH03 | 12 interface 4U Rack: 15 slot, for converters, fiber modem, 4E1 fiber mux, SNMP card , two power supply |
Description
AN-CH03 can support 16 function card and 2 power supply card. AN-CH03 full configuration: 1 SNMP card, 15 (or 16) function card and 2power supply module (1 redundant module)
Supports AD-net complete protocol converter series, fiber modem series , 4E1 fiber optical mux series.

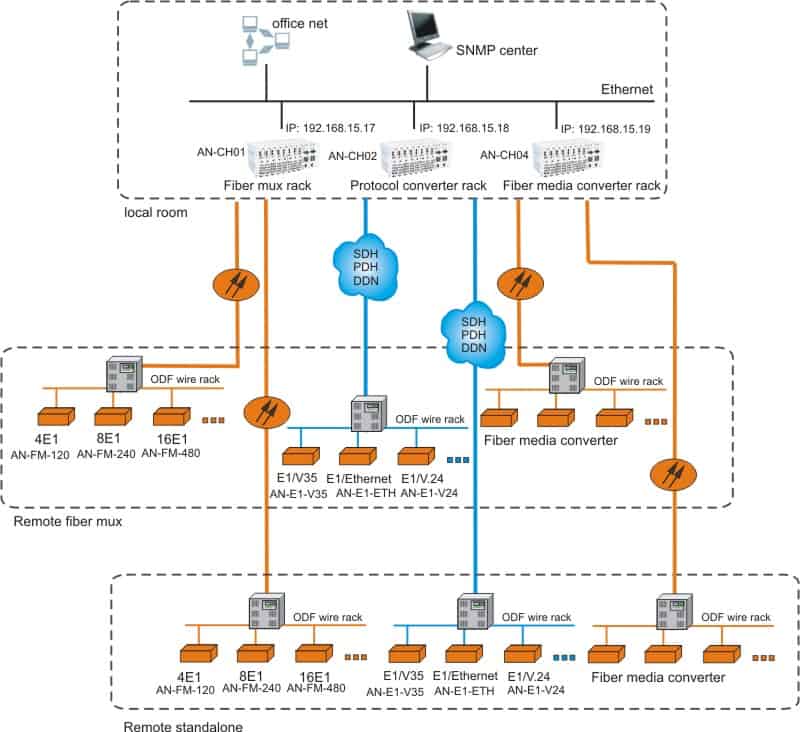

Centralized SNMP rack mount solution allows network operator efficiently use expensive collocation place in racks, monitor network and deploy efficient fiber point-to-multipoint systems for access networks.
Why waste space in your 19′ rack by stacking standalone units on each other?
Choose AD-net SNMP platform to save space in your POP, and free GUI software with each order!
Difference with AN-CH03? Less interface card slots, more economical power, budgetary solution, for smaller applications
