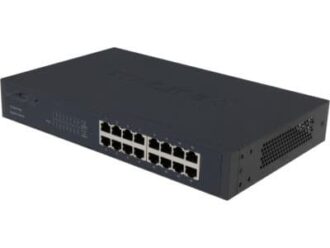

16 port Fast Ethernet switch

AN-U-FE2016 high performance 10/100Mbps auto negotiation RJ-45 ports ethernet switch

Support IEEE802.3 10BASE-T ethernet and IEEE802.3u 100BASE-TX/FX fast ethernet standard

Transparent transfer protocols ,such as:TCP/IP, IPX, XNS, Appletalk, Vines, DECnet, ARP, DECLAT, Lansoft, etc.
16 high performance 10/100Mbps auto negotiation RJ-45 ports
One RS-232 interface to manage the switch(optional)
Electrical port auto MDI/MDIX switch
All ports are auto negotiation ,full-deplex and half-deplux
Provide the maximum bandwidth to 3.2Gbps, 100% data transmit rate
Filter broadcasting storm
Line speed is filtrate / transmit
Support VLAN And Trunking
Support port MAC address binding
Auto MAC address learning

Network standard:
IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX 100BASE-FX
IEEE 802.1D SPD
IEEE 802.1p Priority Queue
IEEE 802.3x

Dynamic buffer memory: 4M

MAC LIST: 8K

Auto pack transmit/filter rate: line speed, 148,800 pps/port(100Mbps)
Auto MAC address learning
Auto MAC address aging

AN-U-FE2016

16 ports fast Ethernet Switch

Description

16 high performance 10/100Mbps auto negotiation RJ-45 ports
One RS-232 interface to manage the switch(optional)
Electrical port auto MDI/MDIX switch
Provide maximum bandwidth to 3.2Gbps, 100% data transmit rate
Support VLAN and Trunking
Dynamic buffer memory: 4M
MAC address list: 8K
