16 port HD AHD/TVI/CVI 1080p Video Balun Receiver Hub with Surge Suppression

Transmission distance of color signal via CAT5 or CAT6
Up to 200m (1000 ft) with passive HDTVI/CVI/AHD transmitter
No need to provide power
Built-in transient protection
Excellent anti-interference ability and stable performances

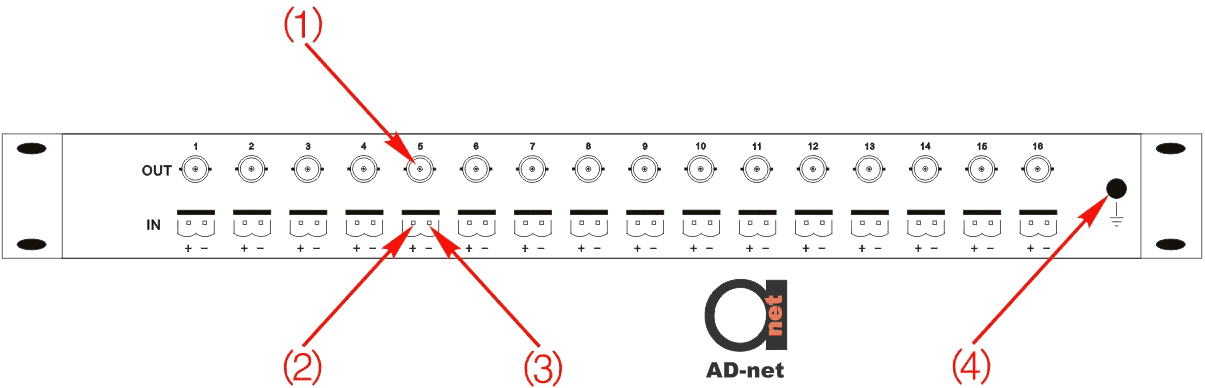

(1) – Video OUT

(2) – Video IN V + (UTP Cable)

(3) – Video IN V – (UTP Cable)

(4) — GND

Instructions:

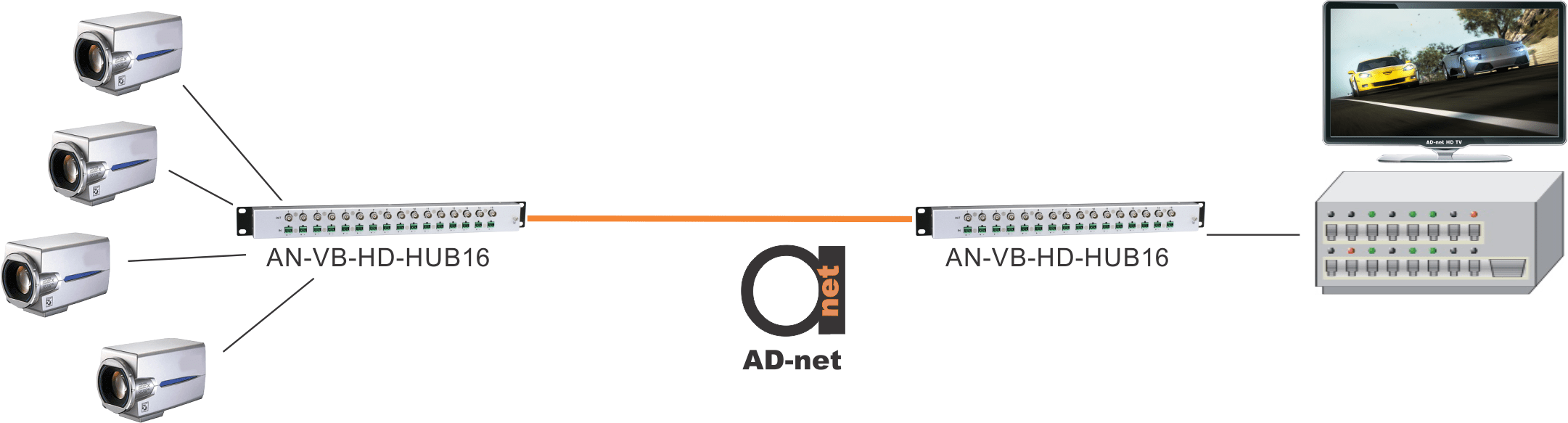

Connect coming transmission TVI/CVI/AHD video indicator to BNC terminal of transmitter
Select one pair of UTP cable (It must be the same color) and respectively connect to VIDEO +/- of transmitter
Connecting the receiver hub TVI/CVI/AHD video signal to the BNC terminal of TVI/CVI/AHD display devices
Connect GND terminal to the ground

AN-VB-HD-HUB16

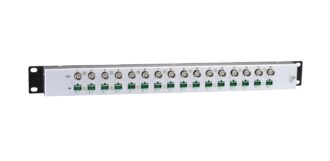

16 port HD AHD/TVI/CVI 1080p Video Balun Receiver Hub with Surge Suppression

Description

AN-VB-HD-HUB16 is a 16 port HDTVI/CVI/AHD video receiver hubs with surge suppression. It is suitable for centralized mounting of big project. And it is very convenient in project installation.
