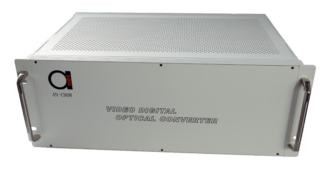

16 slots chassis for central node

AN-CH08 provides 16 module slots for any combination of Video/Audio/Data/Voice/Ethernet converters. This is an universal chassis for any type of AD-net video over fiber, and can be used as central concentrator node.

16 slots for video over fiber converter
19 inch rack mount, 2U high
Internal back up power supply
Plug and play operation
Two power supply units in set;
Compact & easy to install;
State of art AD-net special design
Any type of AN-DV converters can be ordered as plug in module;

Diagnostic LED: Power LED

Power input: 100-240VAC 50~60Hz
Power consumption (full mode): 60W
Power consumption (empty mode): 10W
Operation temperature: 0~50 C
Storage temperature: -30~60 C

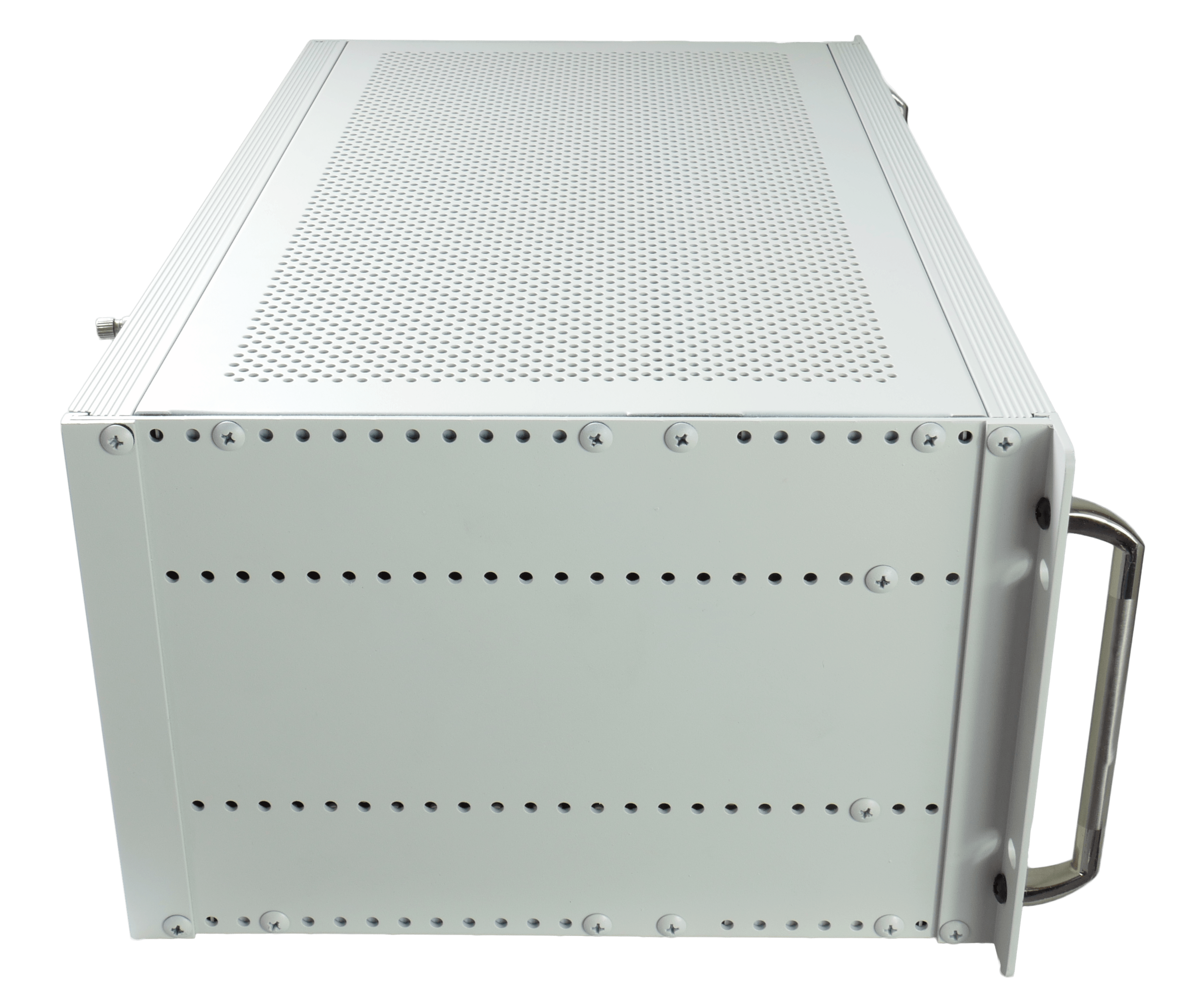

Dimension: 430mm(L) X 200mm(W) X 110mm(H)

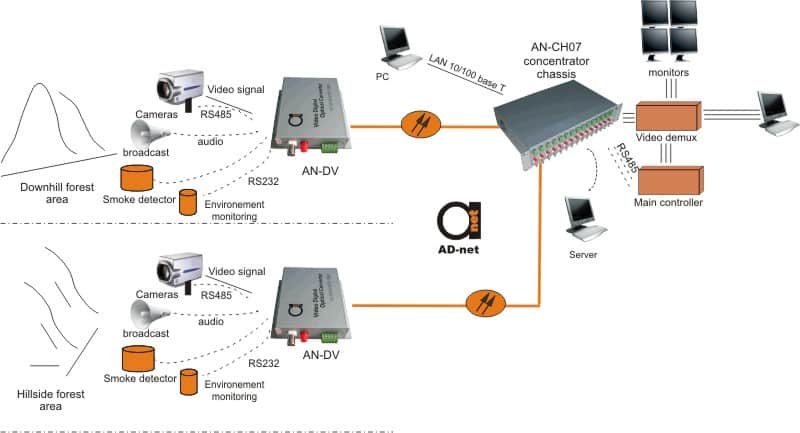

Application scenario:

Features Presentation:

Chassis installation + remote end testing tutorial video:

AN-CH08/AA	16 slots media converter rack, for video over fiber series, dual power supply included - AC+AC
AN-CH08/AD	16 slots media converter rack, for video over fiber series, dual power supply included - AC+DC
AN-CH08/DD	16 slots media converter rack, for video over fiber series, dual power supply included - DC+DC

Description

AN-CH08 has 16 slots, and you can use it for any combination of Video | Audio | Ethernet | Phone or RS-232/422 multiplexers as a central node concentrator – for installing in 19′ rack.

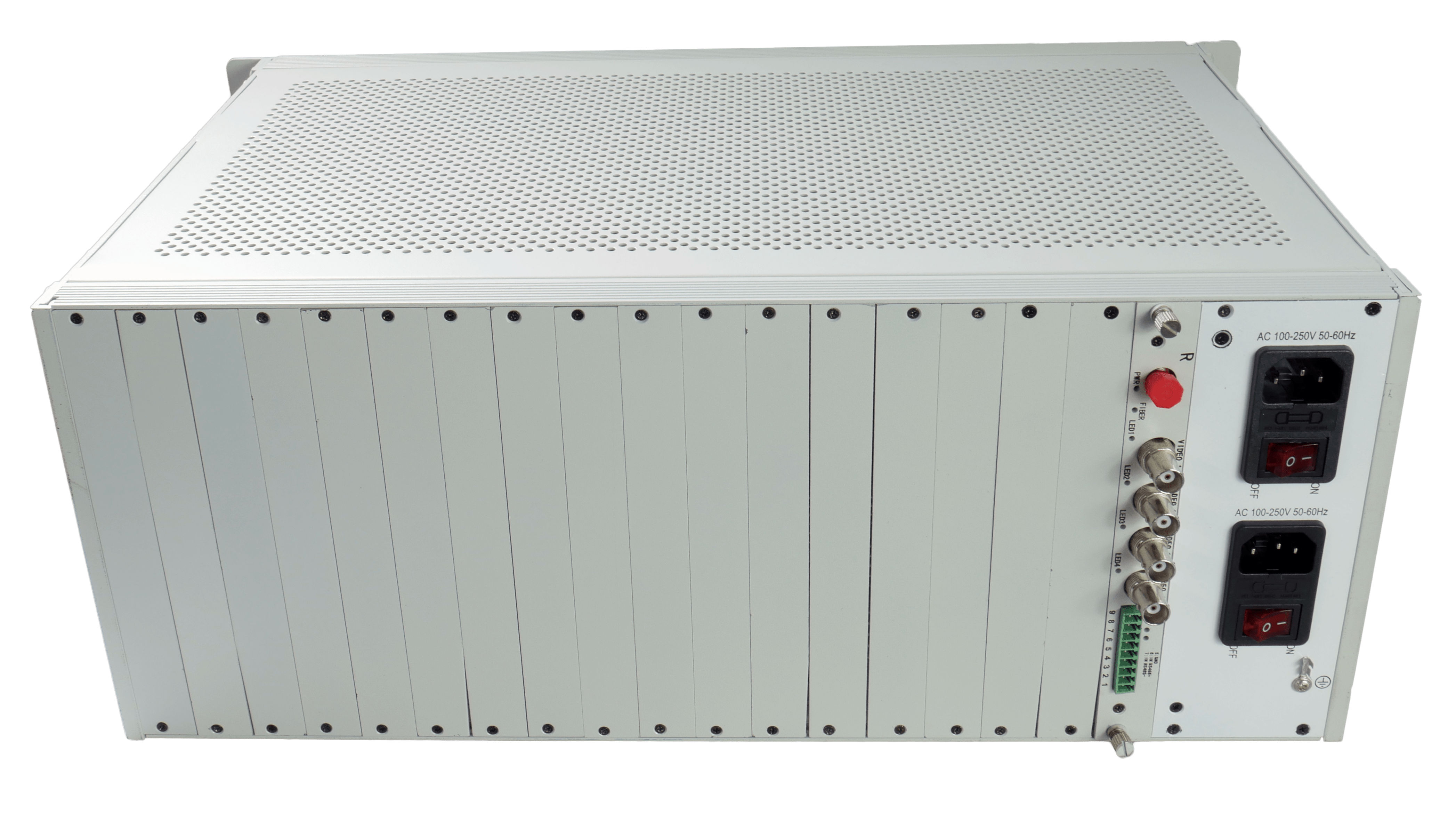

Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. AN-CH08 rack-mount chassis eliminates the external power adapters for AN-dv series video over fiber converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple AN-DV series converters.
