16 voice FXS/FXO POTS over IP converter | Multiplexer – Telephone over Ethernet IP Converter System

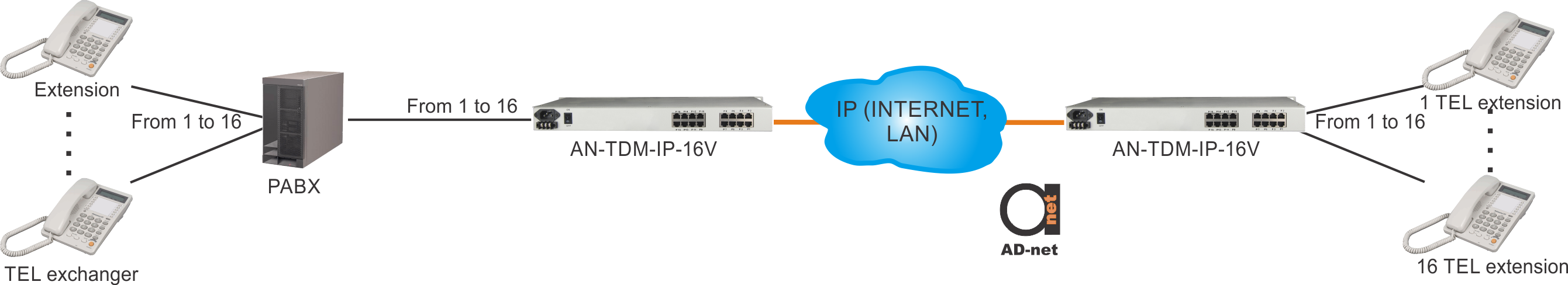

The converter encapsulates voice data in IP data packets and supports UDP encapsulation to realize the conversion of 1-16 voice services to two 100M Ethernet networks. It can communicate on the same network segment or different network segments via routers.

provide Console (RS232) management interface convenient for installation;
Ethernet interface rate of 10M / 100M full / half duplex adaptive;
support automatic recovery after power off or network off ;
support Ethernet packet disorder recovery and cache to resist network delay;
adjustable frame length to balance the bandwidth and transmission delay;
based on hardware design quick start;
Voice port support FXO / FXS / two /four-wire EM / two-wire audio / magnet telephone interface FXO port and program-controlled switches docking FXS port and the user’s telephone connected;
Voice FXO / FXS access support for caller ID function / reverse polarity billing / fax function;
telephone interface support mutual number allocation function;
Support Console serial port network management and WEB network management;
A variety of power options: AC220V DC-48V / DC24V etc . support AC + DC; AC + AC; DC + DC dual power backup mode;

E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: n*64Kbps±50ppm;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance) 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

Ethernet interface (10/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

Dimension

Product Size: Mini Type 216X140X31mm(WXDXH)

Simple packaging: 274X193X84mm(WXDXH)

Piece Weight : 1.25KG

Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

AN-TDM-IP-16V

16 voice FXS/FXO over IP converter, FXS or FXO side, AC, DC or dual power options available
