16 Voice (FXS/FXO) POTS fiber multiplexer
AN-FM-PCM16 fiber mux is an optical transmission equipment realizing long-distance voice transmission through fiber. Primary interfaces are 16 x FXS/FXO voice but additional E1, Ethernet or E1 can be added upon request
- Low cost solution for delivering analogue POTS lines over long distance fibers;
- up to 16 FXO ports for connection to PABX or PSTN;
- up to 16 FXS ports for connection of phones or faxes;
- Ethernet port for LAN interconnection;
- RS-232 for data transmission
- Up to 4E1 ports as an option for PABX interconnection or any other E1 Leased lines services
- MTBF more than 10 years
- WDM Bidi fiber interfaces avalaible
FXS
ringing voltage: 75V
ringing frequency: 25HZ
FXO
two line input impedance: 600 Omega (hanging off)
wastage: 40 db
ringing detecting voltage: 35V
Optical Interface Parameter
optical wavelength: 850nm/1310nm for multi-mode optical interface, 1310nm/1550nm for single-mode optical interface
optical interface: SC/FC
receiving and dispatching module: >-6dBm
optical receiver receiving sensitivity -30dB
transmitting range: Multi-mode 2 Km, single-mode 40Km, single-mode 60 Km, single-mode 120Km, WDM bidi available
vibration characteristic: Comforms G.742 and G.832 standard
Quick Setup Video
Features Slideshow
In this case are using BNC 75 ohm type for 4E1 ports – but we have little tip inside the video what to do, if you want change from 75 ohm to 120 ohm, without ordering new units with RJ-45 on board.
Anyway, E1 ports can be ordered either BNC 75 ohm or RJ-45 120 ohm types
| AN-FM-PCM16 | 16 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, AC110/220V or DC-48V; |
|
| AN-FM-PCM16/4E1/ETH | 16 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), AC110/220V or DC-48V; |
|
| AN-FM-PCM16/4E1/ETH/RS-232 | 16 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), and RS232 port AC110/220V or DC-48V; |
Description
This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities.

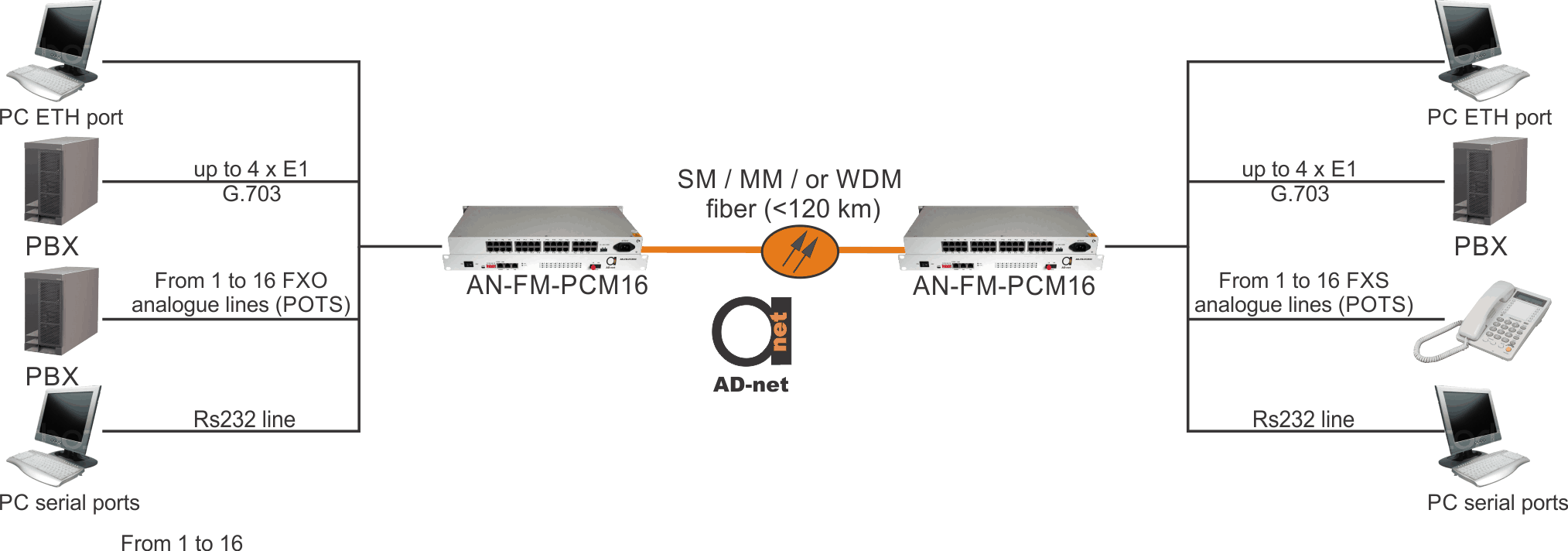

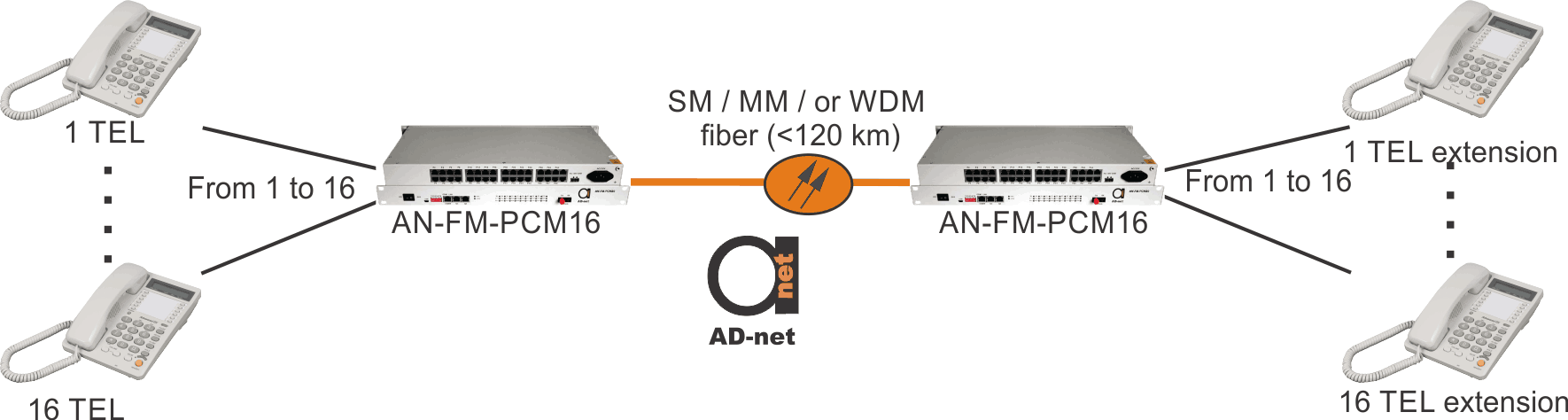

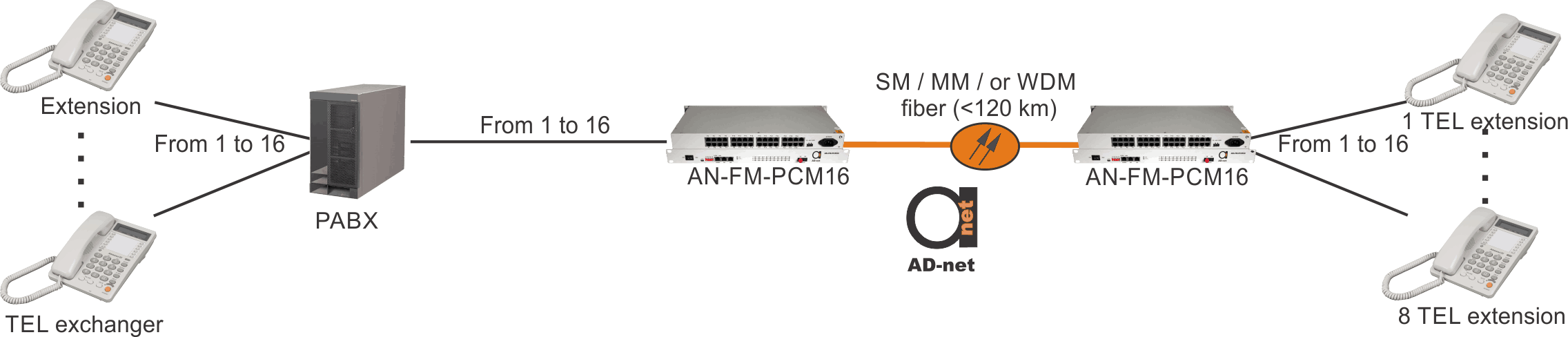

AN-FM-PCM16 fiber mux can provide 1-16 channels, telephone through optical cable, the network application is point-to-point, supporting FXO/FXS. It has solved telephone transmission problem of edge customers. This equipment uses special digital multiple-connected chip whose function is formidable, and it integrates nearly all the digital logical function of equipment, thus remarkably enhancing product performance and reducing cost.
Additional channels of E1, Ethernet and RS-232 can be added upon request
