16 x E1 G.703 + 4 x 10/100 Ethernet fiber multiplexer with dot1Q VLAN’s, QoS, and BW shaping
AN-FM-480-4ETH is state-of-art 16 x E1 G.703 + Ethernet 10/100BaseT fiber multiplexer with logical bandwidth control, QoS, and dot1Q VLAN's which allows effetive transmission of those protocols over fiber optical cable over distances more than 120 km. Single mode, dual mode and WDM (BiDi) versions
- Provides 16 E1 G.703 transparent transmission over the fiber;
- Provide 4 x 100 Mbit/s Ethernet channels, Ethernet speed can be set for each port on based on any multiples of n x 32 Kbit/s;
- Provides one RS232 channel for option;
- Provide one hotline channel for option (enginering ordewire);
- Speed of optical port is 155Mbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100km,120KM;
- E1 interface code is HDB3; E1 vibration characteristic conforms to ITU-T G.703、G.823 and G.742;
- Ethernet port supports full/half duplex, 10M/100M auto-ataptable, throughput is full duplex 100 Mubit/s;
- Ethernet port supports dot1Q VLAN setting possibility and port based VLAN’s.
- Layer2 intelligent switch possibilities for 4 x Ethernet ports
- Ethernet packet size supports 1916 byte and 4 Ethernet port could be set seperately, jumbo frames are supported;
- Simultaneous 8 E1 & 100 Mbit/s full duplex operation;
- Complete alarm function and can monitor remote device status;
- Supports E1 loop from remote so as to detect and manage device conveniently;
- The combination AC220V and DC-48V for redundant options;
- Broadcast Storm Protection, Port monitoring.
- Provide SNMP MIB support if used together with AN-CH01 central solution
- Current alarm and alarm history database
- AN-NM-PDH GUI manager for easy and convienent monitoring and managment

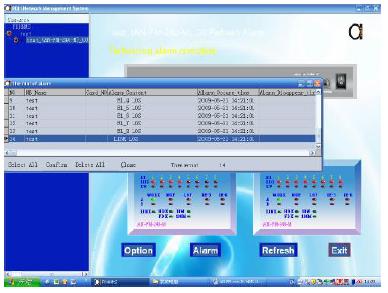

Alarm history and current alarms via AN-NM-PDH NMS

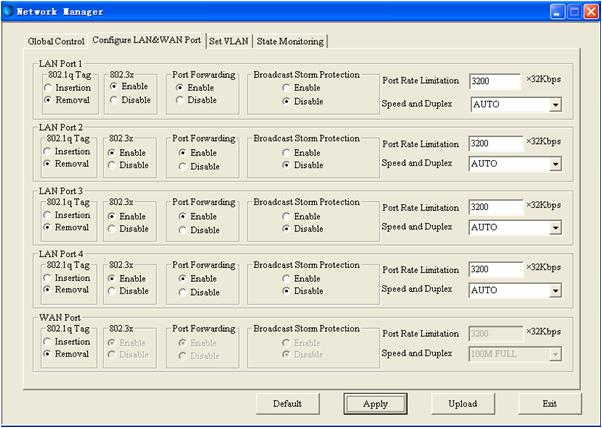

Port rate limitation setting via NMS

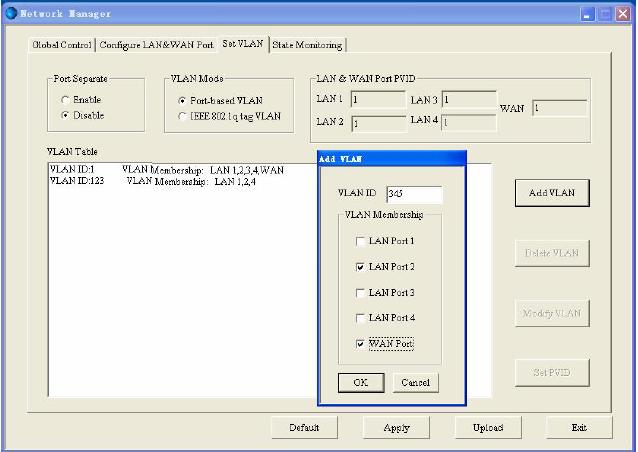

VLAN ID setting via NMS
4 10/100 BaseT ports:
Rate: 10/100M, full/duplex auto-negotiation
Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address entries: 4096 EntriesConnector: RJ45
RS232/Console port for GUI NMS manager
Rate: 9600Kbps (Asynchronous)
Interface characteristic: satisfies ITU-T V.24 standard
Connector: RJ45
RS232 data port
Rate: 9600Kbps (Asynchronous)
Interface characteristic: satisfies ITU-T V.24 standard
Connector: RJ45
Optical interface:
Optical wavelength:
1310nm/1550nm for single-mode optic interface for option
850nm/1310nm for multi-mode optic interface for option
WDM single fiber lasers are available
Transmitting range:
MM 2Km/5Km,SM 20Km/40Km/60 Km/120Km for option
transmit distance: <120KM
Optical interface: SC/FC/ST for option
Transmit budget: -3dBm/2dBm
eceiving and dispatching module: >-36dBm
Optical receiver receiving sensitivity: <-36 (BER<10):
Optical code: NRZ
Length Height Width (Depth): 483mm×44.45mm×200mm
Weight: 2.5kg
Installation video shows how quick and easy to install this mux, just repeat same steps and you are done.
| AN-FM-480-4ETH-MM | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Multimode 2 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-S40 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Dual Fiber 40 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-S60 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Dual Fiber 60 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-S80 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Dual Fiber 80 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-S100 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Dual Fiber 100 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-S120 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Dual Fiber 100 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-WDM20 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Single Fiber 20 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-WDM40 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Single Fiber 40 km, AC or DC power supply. 1+1 double power supply as ordering option |
|
| AN-FM-480-4ETH-WDM60 | 16*E1 G.703 PDH Fiber Multiplexer + 4 x 10/100 Ethernet ports, 19" ,75ohm BNC or 120ohm RJ-45 ,1*orderwire phone, Network Management system, FC/ST/SC Single Mode Single Fiber 60 km, AC or DC power supply. 1+1 double power supply as ordering option |
Description
AN-FM-480-4ETH series of Multi E1 & Fast Ethernet Optical Terminal is a product combining of a PDH optical transport system and an Ethernet transceiver.
AN-FM-480-4ETH can provide up to 8 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting.
The AN-FM-480-4ETH is a fiber media transport for 8E1 + 4 x 10/100BaseT transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring.
All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are available in up to 120 km versions reach, which will provide the ability to transmit and receive data using only a single optical fiber pair.
AN-FM-480-4ETH provides an order-wire for which a standard telephone can be used.
AN-FM-480-4ETH provides a user RS232 transparent data link with a RJ45 connector.
AN-FM-480-4ETH possesses complete operation monitoring function. Those indicators include Loss of optical signal, LOF, 10-3, 10-6 bit error rate, Loss of each E1 tributary signal and Ethernet status. Since some overhead bytes are taken as monitoring channel, all alarm and status of Remote can be display locally.
AN-FM-480-4ETH provides RS232 interface for Network Management. Supported by AN-NM-PDH GUI network manager utility, users can observe the status of Local and Remote, as well as other alarm information unable to be displayed by LEDs in the front panel. Also, with AN-NM-PDH, user can make certain E1 loop back for testing purpose.
4 x 10/100 Ethernet ports support intelligent Layer 2 switch features, such as QoS, dot1Q and port based VLAN’s, flow control per port with steps n x 32 Kbit/s and more.
Additional information
| E1 ports | 16 |
|---|---|
| Fast Ethernet Ports | 4 |
| Managed | Yes |
