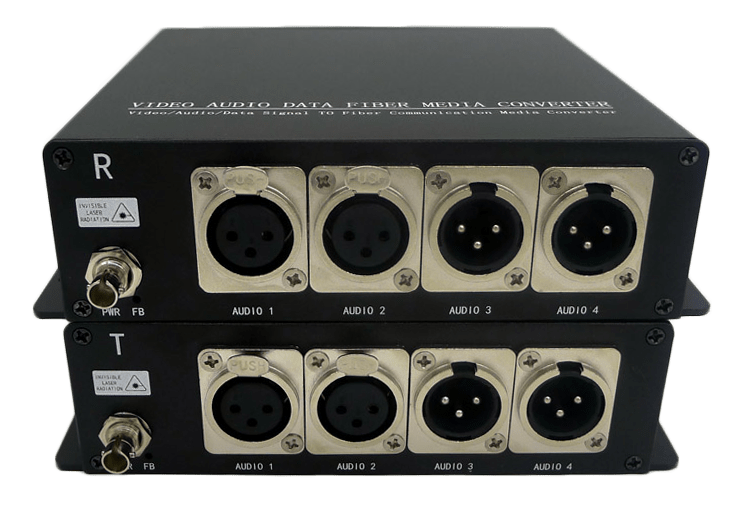

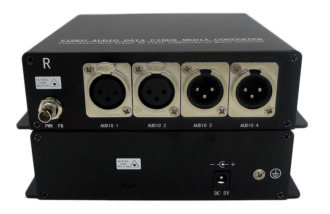

2 XLR Balanced Audio Channel BiDirectional over Fiber Optic Converter

2 CH BIDI Balanced Audio（XLR）To Fiber OpticConverter support 2 Channel BIDI balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Opitcal：

Wavelength	1310nm&1470nm~1610nm
Output Power	-14~ -8dBm / -5~0dBm
Optic fiber	50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity	-30dBm
Optical connector	FC、ST、SC (optional)
Distance	0~2KM (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balanced Audio

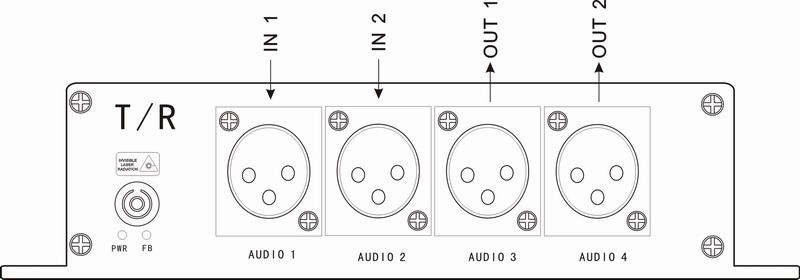

Number of Channels	2 Input +2 Output
Input Connector	XLR（female）
Output Connector	XLR（male）
Input / Output Impedance	10K Ohm
Input capacitance LINE inputs	10 pF
Max input/output voltage	1.0Vp-p
Frequency Response	20 Hz～24kHz @±3dB
Sample Rates From	48kHz
SNR	> 80dB

Electrical & Mechanical

Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 90V~240V
Power Consumption:	< 5W

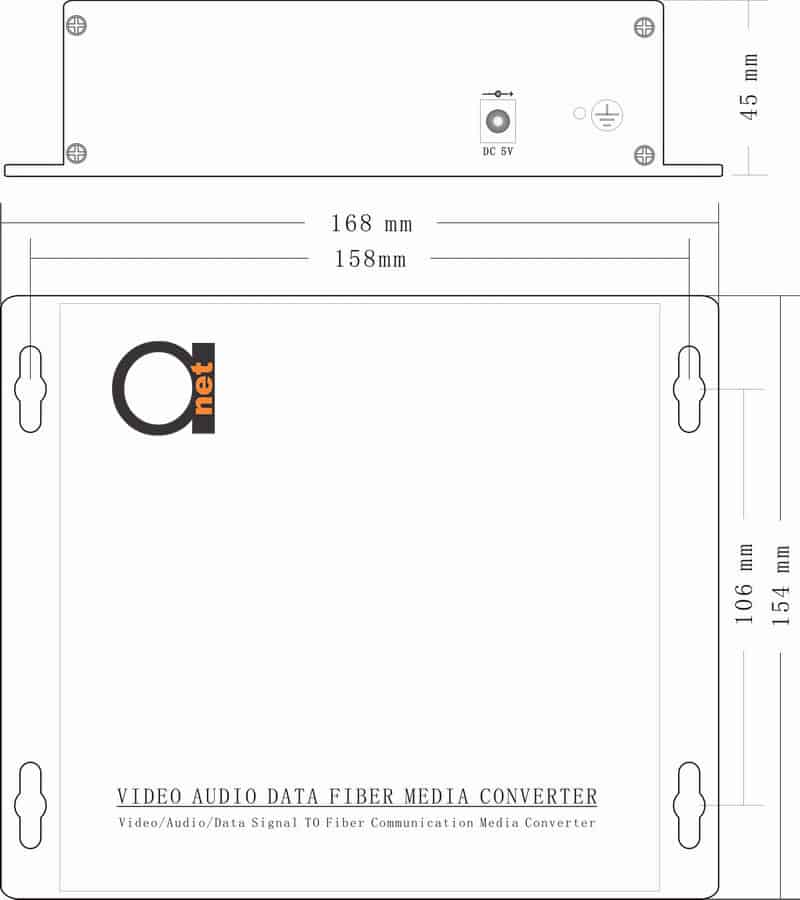

Stand-Alone Dimensions:	168mm × 154mm × 45mm
Shipping Weight:	(include Transmitter & Receiver ) 2.5kg

Environmental

Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

In video you can see that no settings are required to get 2 channel bidirectional signal, and it’s really plug and play

Now, this one is interesting one – we’ve got Karaoke mic with 48V phantom power device and 20km of single mode fiber, and a mini PC with RCA input – and this how we hook this all up using our XLR over fiber 2 port bidi type converters!

AN-DV-XLR-2-BIDI-SM20	2 XLR Audio Channel BiDirectional over Fiber Optic Converter, Single Mode 20 km
AN-DV-XLR-2-BIDI-MM500	2 XLR Audio Channel BiDirectional over Fiber Optic Converter, Multi Mode 500 m
More Distance?	Check Customized Versions with Our Sales Now!

Description

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
