Home Products 24 port + 2 fiber ports managed switch

24 port + 2 fiber ports managed switch

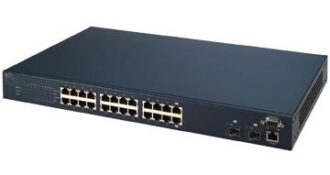

AN-M-FE4026 24 high performance 10/100 auto-negotiation RJ-45 ports plus 2 optical ports(SM/MM)



  • Support IEEE802.3 10BASE-T ethernet and IEEE802.3u 100BASE-TX/FX fast ethernet standard
  • Transparent transfer protocols ,such as:TCP/IP、IPX、XNS、Appletalk、Vines、DECnet、ARP、DECLAT、Lansoft, etc.
    24 high performance 10/100 auto-negotiation RJ-45 ports plus 2 fibre ports(SM/MM)
  • One RS-232 interface to manage the switch
  • Electrical port auto MDI/MDIX switch
  • All ports are auto negotiation ,full-deplex and half-deplux Provide maximum bandwidth to 5.2Gbps, 100% data transmit rate Filter broadcasting storm
  • Line speed is filtrate / transmit
  • Support VLAN and Trunking
  • Support port MAC address binding
  • Auto MAC address learning

Network standard:
IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
100BASE-FX IEEE 802.1D
SPD IEEE 802.1p
Priority Queue IEEE 802.3x

Dynamic buffer memory: 8M
MAC LIST:12K
Auto pack transmit/filter rate: line speed, 148,800 pps/port(100Mbps) Auto MAC address learning Auto MAC address aging

AN-M-FE4026

24 high performance 10/100 auto-negotiation RJ-45 ports plus 2 optical ports(SM/MM)

Description

AN-M-FE4026 Fast Ethernet Switch provides the power of switching with the ease of use and affordability of traditional shared hubs. Truly Plug-and-Play, the AN-M-FE4026 Fast Ethernet Switch automatically learns about the devices on your network and configures itself, without complicated setup procedures. Dramatic improvements in performance can easily be seen, with speeds of up to 200Mbps per port. Since full bandwidth capability is achieved on each individual port, the congestion problems of shared hubs are easily avoided.

Employing a Buffered Store-and-Forward transmission method with Back Pressure and Flow Control ensures maximum reliability. For added sturdiness, these switches are housed in steel casings and can be rack mounted using the included Rackmount kit. AN-M-FE4026 Fast Ethernet Switch comes with 16-switched RJ45 ports and a 100Base-Fx uplink port.

Powerful enough to run your network’s backbone, yet so easy they can be used in place of your desktop hubs, let versatile AN-M-FE4026 Fast Ethernet Switch bring the power of switching to you
