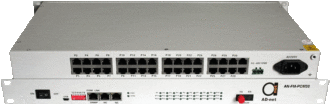

30 Voice (FXS/FXO) POTS fiber multiplexer
AN-FM-PCM30 fiber mux is an optical transmission equipment realizing long-distance voice transmission through fiber. Primary interfaces are FXS/FXO but additional E1, Ethernet or E1 can be added upon request
- Low cost solution for delivering analogue POTS lines over long distance fibers;
- up to 30 FXO ports for connection to PABX or PSTN;
- up to 30 FXS ports for connection of phones or faxes;
- Ethernet port for LAN interconnection;
- RS-232 for data transmission
- Up to 4E1 ports as an option for PABX interconnection or any other E1 Leased lines services
- MTBF more than 10 years
- WDM Bidi fiber interfaces avalaible
FXS
ringing voltage: 75V
ringing frequency: 25HZ
FXO
two line input impedance: 600 Omega (hanging off)
wastage: 40 db
ringing detecting voltage: 35V
Optical Interface Parameter
optical wavelength: 850nm/1310nm for multi-mode optical interface, 1310nm/1550nm for single-mode optical interface
optical interface: SC/FC
receiving and dispatching module: >-6dBm
optical receiver receiving sensitivity -30dB
transmitting range: Multi-mode 2 Km, single-mode 40Km, single-mode 60 Km, single-mode 120Km, WDM bidi available
vibration characteristic: Comforms G.742 and G.832 standard
Applications:
Scenario Nr1: Full connection scenario, where all possible connections are used – 30 FXS/FXO, RS-232, Ethernet and 4E1

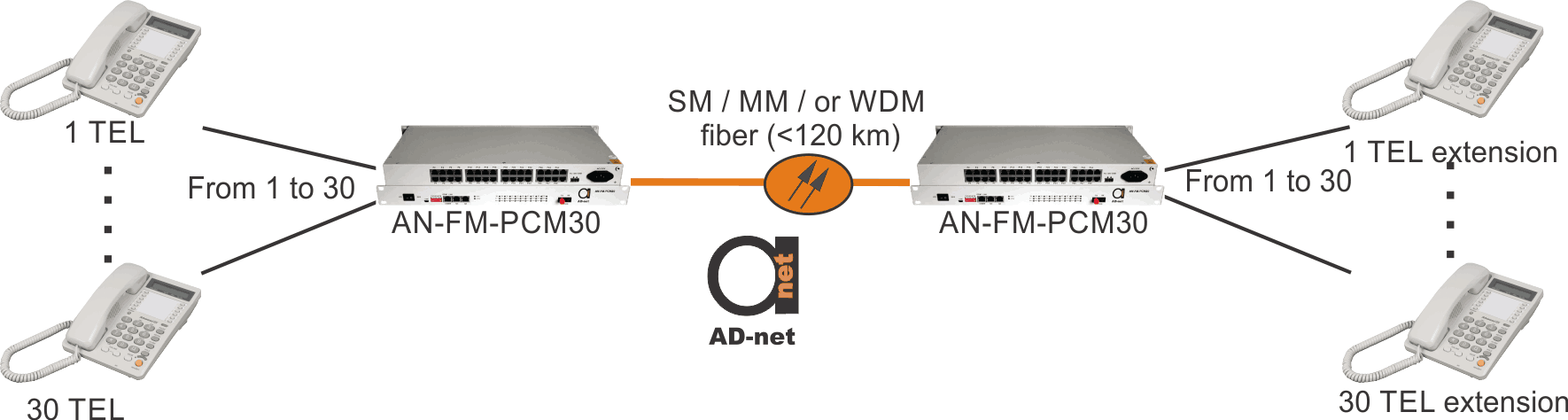

Scenario Nr.2: 1 – 30 FXS to 1 – 30 FXS configuration, clear channel

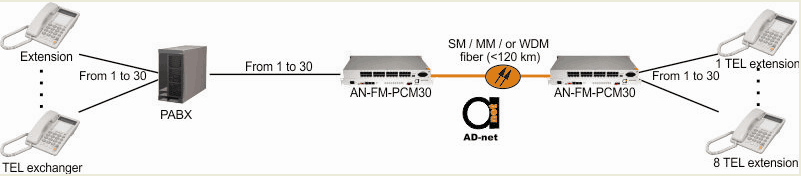

Scenarion Nr.3: 1 – 30 FXS —–> 1 – 30 FXO, for remote extensions from PABX
Quick Setup Video
Features Slideshow:
In this video we connect some phones and Ethernet ports to see how quickly it can be up and running after all cables are plugged in.
Now, in this video above, we are getting a bit geeky, and testing 2 type of phone traffic over same PCM mux. What you see there is that it’s classic PCM30 mux with FXS and FXO side as usual, but here, to additional Ethernet port, which usually are getting connected to LAN, we connected FXO side muxes Ethernet port to IPPABX, and FXS part Ethernet port to remote IPphone. Now, regular POTS phones and IPhones work thru same mux, using different media, but all get’s into same fiber, thus seriously saving cost on fiber and equipment.
Now, in above video, multiplexer for 4 E1’s are having RJ-48 120 ohm ports. Now, in below video it is practical same mux, but instead of 120 OHM E1 ports, we have BNC 75 ohm. Compare both – which one fits your application most?
| AN-FM-PCM30 | 30 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, AC110/220V or DC-48V; |
|
| AN-FM-PCM30/4E1/ETH | 30 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), AC110/220V or DC-48V; |
|
| AN-FM-PCM30/4E1/ETH/RS-232 | 30 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), and RS232 port AC110/220V or DC-48V; |
Description
This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities.
AN-FM-PCM30 fiber mux can provide 1-8 channels, 1-16 channels, 1-24 channels, or 1-30 channels telephone through optical cable, the network application is point-to-point, supporting FXO/FXS. It has solved telephone transmission problem of edge customers. This equipment uses special digital multiple-connected chip whose function is formidable, and it integrates nearly all the digital logical function of equipment, thus remarkably enhancing product performance and reducing cost.
Additional channels of E1, Ethernet and RS-232 can be added upon request
