- 4 port 10/100M RJ-45
- 1 port 100Base-Fx Optical fiber
- Store and forward mode
- 10/100M auto-negotiation, maximum speed to 20/200M (full-duplex)
- Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control
- Supports MAC self-learning
- Automatic MDI/MDI-X configuration
- Port base VLAN
- LED status of Link, activity, Full/half duplex, speed,and power on diagnostic function
- Steel case
Protocol | CSMA/CD | |||||||||||
Standard |
IEEE802.3 10BASE-T,IEEE802.3u, 100BASE-TX/FX, IEEE802.3x | |||||||||||
Topology | STAR | |||||||||||
Number of Ports | 1 Port 100Base-Fx optical + 4 port 10/100Base-Tx copper | |||||||||||
Uplink Ports | None | |||||||||||
Transmission Rate | 10Mbps: 14880pps, 100Mbps:148800pps | |||||||||||
Switching mode | Store and Forward | |||||||||||
Flow control mode | IEEE 802.3x full-duplex flow control and back pressure flow control | |||||||||||
LED Indicator | LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function | |||||||||||
Cable Support | 10Base-T: 3, 4 or Cat 5 shielded / unshielded twisted pair, 100 meters max., 100Base-TX: Cat 5 shielded / unshielded twisted pair, 100 meters max. 100Base-Fx: 8.3μm, 8.7μm, 9μm and10μm on single mode fiber and 50, 62.5 and 100μm on multi-mode fiber |
|||||||||||
Fiber Cables/Connectors | Single Mode/Multi Mode fiber cable SC,ST connector optional |
|||||||||||
Power supply | AC:220V or DC:-48V | |||||||||||
Temperature Humidity |
|
Description

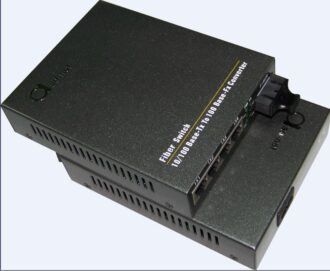

The AN-314-X3X1 is an Optical fiber switch that offers 1 port 10/100Base-FX optical and 4 port 10/100Base-Tx Copper. It supports both Single optical fiber and dual optical fiber, its transmission distance ranges from 2km to 120km. This optical fiber switch works under both Half and full-duplex mode. It supports the STAR network topology and it is an ideal option for fiber to home (FTTH) optical fiber solution, city optical fiber networks,etc.
