4 port USB 2.0 Over Fiber Optic Extender Kit

Max extension distance 250m (SM or MM fiber cable).
Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Auto recognition of High-speed (25Mbps~480Mbps), Full-speed (500Kbps~12Mbps), Low-speed (10Kbps~1.5Mbps) USB device.
Support USB1.1 and USB 2.0 devices, cameras, printers, U disk, scanners, audio devices, touch screens, game controllers, mouse and keyboard, etc.

Optical	Connector	SM/MM SC/FC/ST
Optical	Wave length	1310nm/1550nm
Physical	Size (L× W ×H)	104mm x104mm x28mm
	Case	Aluminum
	Color	Black
	N.W.	0.75Kg
Power	Voltage	5V DC
	sender power consumption	<5W
	receiver power consumption	<5W
Environment	Working temperature	-20℃-70℃
	Storage temperature	-40-85℃
	Humidity	0-95% (non-condensing)

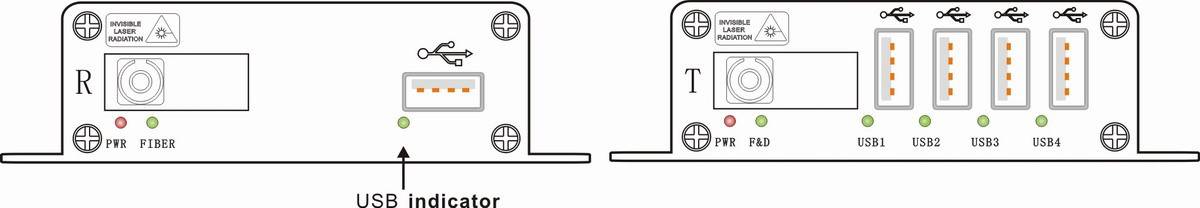

USB interface (Type A)

RX	1, connect to PC
TX	4 , connect to USB devices, max 500mA

Note: The USB indicator green light flash when the device is connected well, otherwise you need to re plug USB devices.

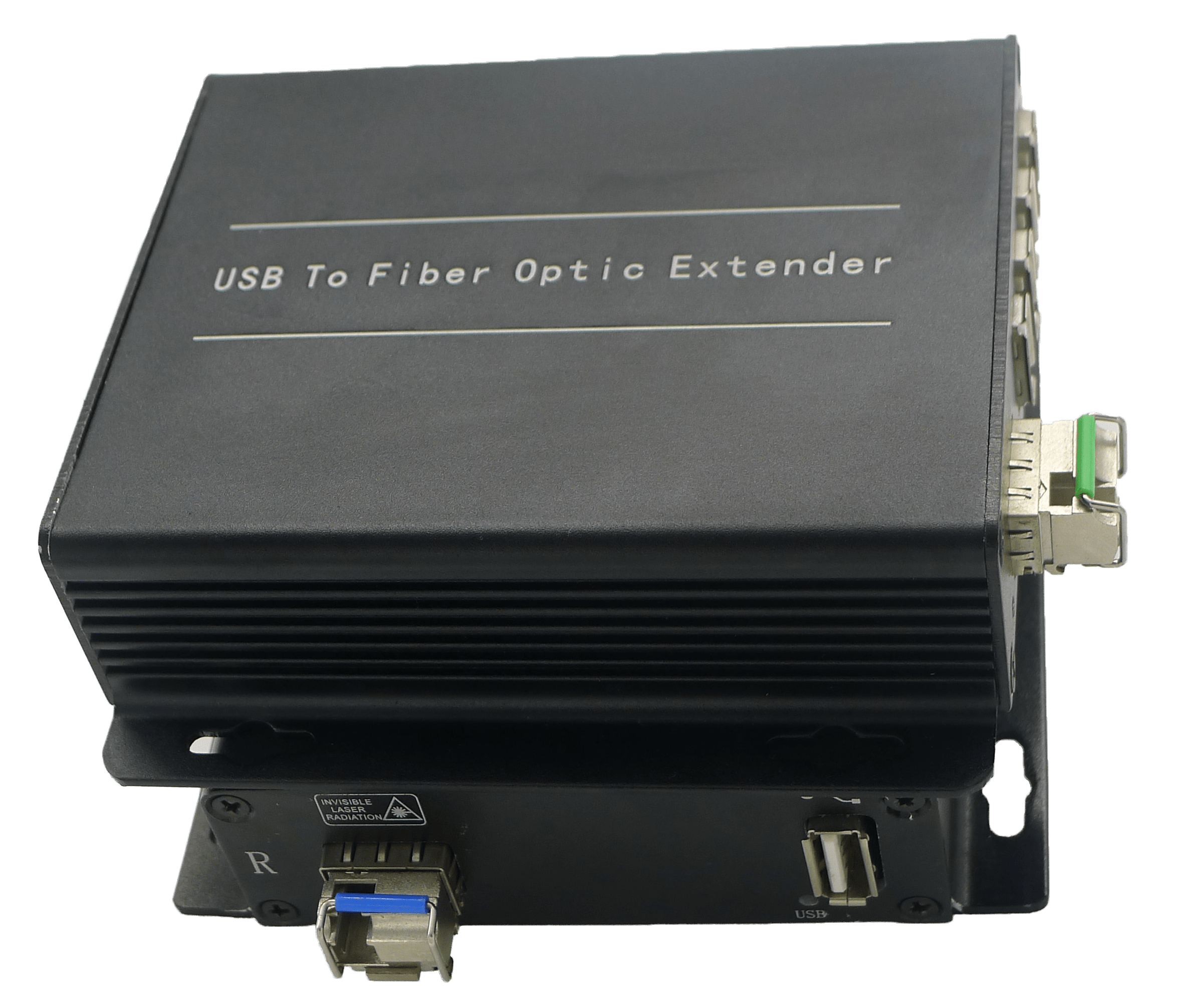

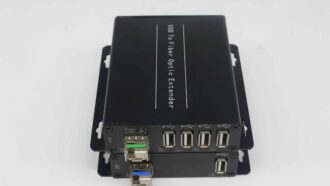

What we have here is a receiver side of USB over Fiber Extender set, which get’s connected to PC, and then another side – 4 port USB 2.0 transmitter where we connect USB camera and USB flash drive same time.

AN-USB-EXT-2.0-4

4 PORT USB 2.0 To Fiber Optic Extender set, Transmitter + Receiver, Supports USB 2.0, USB 1.1 & USB 1.0 (not compatible to USB 3.0 or USB 3.1), max distance 250 m, universal Single mode and Multimode Cable support

Description

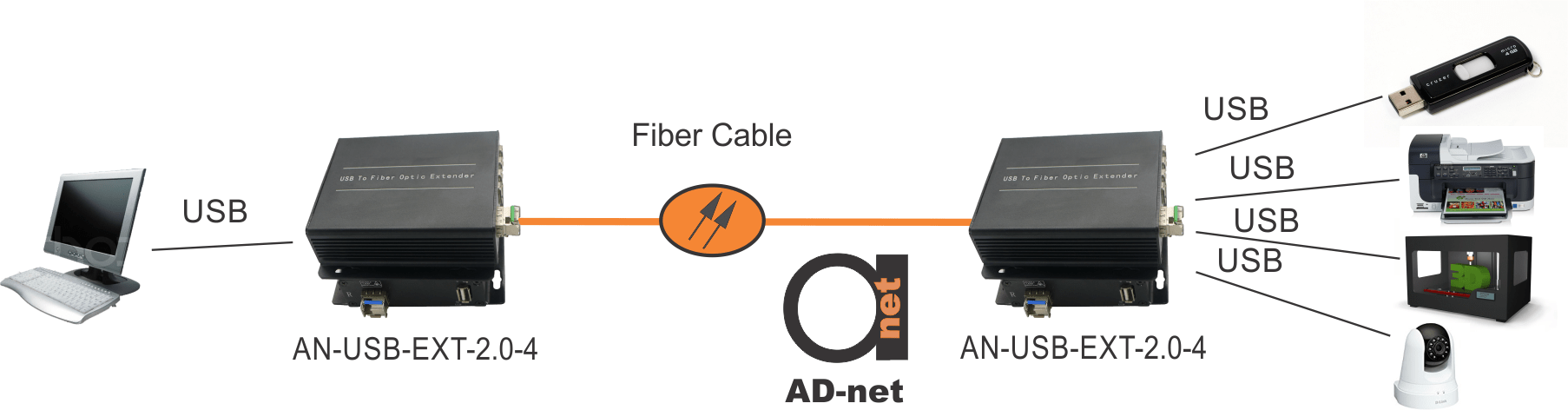

4 port USB 2.0 Fiber Optic Extender, Also called 4 Fort USB2.0 To Fiber Converter. The device includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 fiber cable, max distance 250m (SM or MM fiber cable). An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
