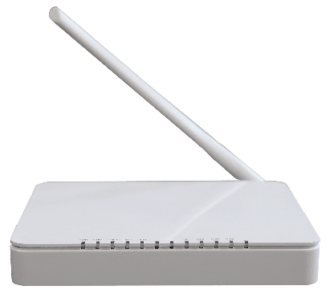

4 x Gigabit Ethernet port GPON HGU ONT with WiFi
AN-ONT-HGU06 HGU GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.
- Full compatible with ITU-T G.984
- Support fourGEauto-adapting Ethernet ports
- Support one 802.11 n/b/g Wi-Fi port
- Support OMCI for remote management
- Support Web for local management
- Support Auto-negotiation andMDI/MDIX
- Support the Ethernet interface rate, working mode andflows control
- Support loopback at UNI
- Support packet filtering and anti-illegal message attack protection
- Support performance statistics of Ethernet lines
- Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
- Support IGMP Snooping
- Support AES-128
|
Item |
Parameters |
Specification |
|

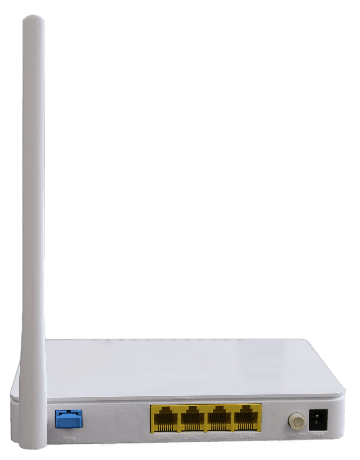

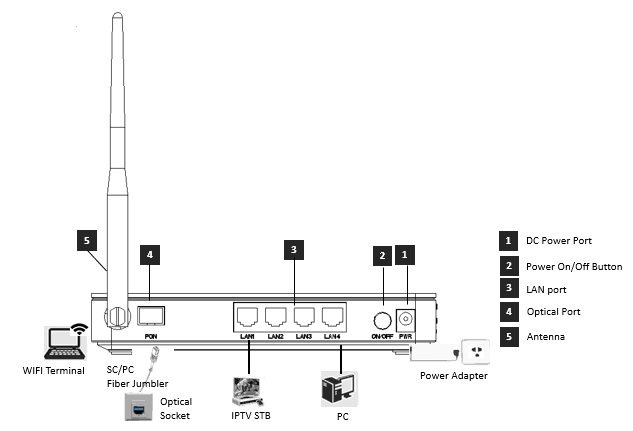

Interface |
PON Port |
1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128 |
|
Ethernet Port(LAN) |
4*10/100/1000M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
|
Power Supply Port |
12V DC input |
|
|
Management |
NetworkManagement |
Standard compliant OMCI interface as defined by ITU-T G.984.4 Support WEB management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
|
Environmental |
Shell |
Plastic casing |
|
Power |
External 12V 1A AC/DC power supply adapter Power consumption: <6W |
|
|
Dimensions |
170mm(L)*130mm(W)*30mm(H) 0.3kg |
|
|
Environment |
Operating Temperature：0～50℃ StorageTemperature：-40～85℃ Operating Humidity：10%～90%(Non-condensing) StorageHumidity：5%～95%(Non-condensing) |
WIFI Features
- IEEE 802.11n compliant, 2.4 GHz
- Full IEEE 802.11b/g legacy compatibility withenhanced performance
- Two-stream spatial multiplexing up to300 Mbps PHY data rates
- Support multi-SSID（Maximum 4 SSID）
- Support automatic channel selection
- Support hide SSID
- Support wireless security of 64/128 bit WEP、1x、WPA and WPA2
|
WIFI Specification |
||
|
Performance parameters |
Standard |
IEEE802.11b/g/n |
|
Frequency |
2.400 ~ 2.500 GHz |
|
|
Wireless data rate |
IEEE 802.11b: 1,2,5.5,11Mbps IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps IEEE 802.11n: up to 200 Mbps |
|
|
Modulation schemes |
802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS 802.11b: CCK, DQPSK, DBPSK HT20: 64 QAM, 16QAM, QPSK, BPSK |
|
|
Channel |
13*Channel, configurable to meet the standard of USA, Canada, Japan and China |
|
|
RF receive sensitivity |
802.11b: -96dBm @ 1 Mbps; -93dBm @ 2 Mbps; -91dBm @ 5.5 Mbps; -88dBm @ 11 Mbps 802.11g: -90dBm @ 6 Mbps; -89dBm @ 9 Mbps; -89dBm @ 12 Mbps; -867dBm @ 18 Mbps; -83dBm @ 24 Mbps; -79dBm @ 36 Mbps; -75dBm @ 48 Mbps; -75dBm @ 54 Mbps 802.11n: -96dBm @ 1 Mbps;-88dBm @ 11 Mbps; -90dBm@6Mbps; -75dBm@54Mbps; -86dBm@m0/20MHz;-69dBm@m15/20MHz; |
|
|
RF TxPower |
•TX power out B mode @ 11 Mbps: 18dBm +/- 2 • TX power out G mode @ 54 Mbps: 16dBm +/- 2 • TX power 11n mode @ HT20: 16 dBm +/-2 |
|
|
Encryption Mode |
64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x |
|
|
Transmission distance |
100m indoors coverage area 300m outdoors coverage area (varying depending on the actual environment) |
|
Application

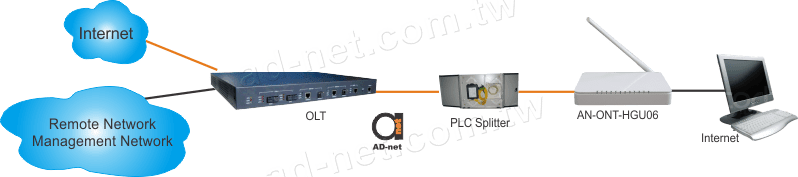

- Solution：FTTH、FTTO、PON+EOC
- Business：Broadband Internet、IPTV、IP Camera
|

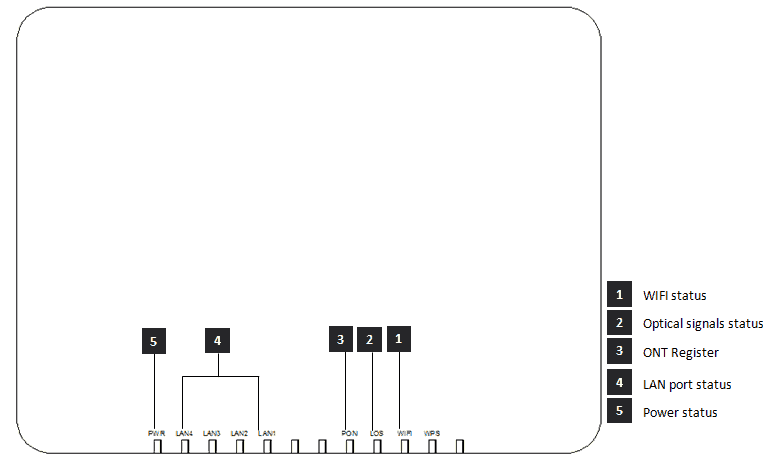

Indicator |
Description |
||
|
1 |
WIFI |
WIFI |
Blinking：Data is being transmitted On：Wi-Fi function Opens |
|
2 |
LOS |
GPON optical signals |
On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
|
3 |
PON |
ONT Register |
On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT; |
|
4 |
LANn |
LAN port status |
On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up; |
|
5 |
PWR |
Power status |
On: The ONT is power on; Off: The ONT is Power off; |
| AN-ONT-HGU06 | 4*GE Ethernet interface, 1 GPON interface, support Wi-Fi function, plastic casing, external power supply adapter |
Description
AN-ONT-HGU06 HGU GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic.GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
AN-ONT-HGU06 provide four GE auto-adapting Ethernet ports and one 802.11 n/b/g WiFi port. The AN-ONT-HGU06 features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the AN-ONT-HGU06 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
