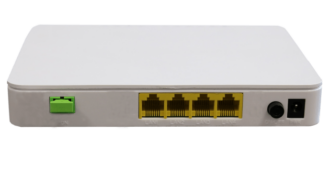

4 x Gigabit Ethernet port GPON ONT
AN-ONT-4-1000 GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.
- Full compatible with ITU-T G.984
- Support four GE auto-adapting Ethernet ports
- Support OMCI for remote management
- Support Web for local management
- Support Auto-negotiation andMDI/MDIX
- Support the Ethernet interface rate, working mode andflows control
- Support loopback at UNI
- Support packet filtering and anti-illegal message attack protection
- Support performance statistics of Ethernet lines
- Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
- Support IGMP Snooping
- Support AES-128
|
Item |
Parameters |
Specification |
|

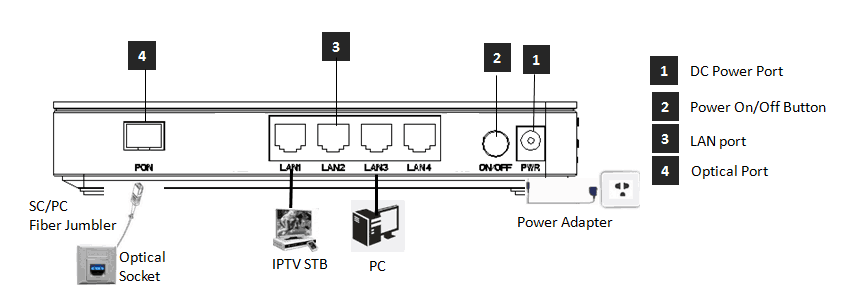

Interface |
PON Port |
1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128 |
|
Ethernet Port(LAN) |
4*10/100/1000M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
|
Power Supply Port |
12V DC input |
|
|
Management |
NetworkManagement |
Standard compliant OMCI interface as defined by ITU-T G.984.4 Support WEB management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
|
Environmental |
Shell |
Plastic casing |
|
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: <5W |
|
|
Dimensions |
170mm(L)*130mm(W)*30mm(H) 0.3kg |
|
|
Environment |
Operating Temperature：0～50℃ Storage Temperature：-40～85℃ Operating Humidity：10%～90%(Non-condensing) Storage Humidity：5%～95%(Non-condensing) |
Application
- Solution：FTTH、FTTO、PON+EOC
- Business：Broadband Internet、IPTV、IP Camera
|

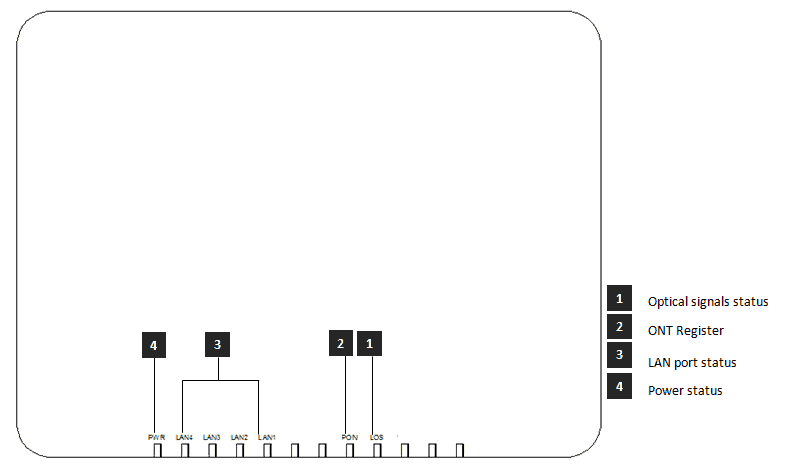

Indicator |
Description |
||
|
1 |
LOS |
GPON optical signals |
On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
|
2 |
PON |
ONT Register |
On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT; |
|
3 |
LANn |
LAN port status |
On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up; |
|
4 |
PWR |
Power status |
On: The ONT is power on; Off: The ONT is Power off; |
| AN-ONT-4-1000 | 4*GE Ethernet interface, 1 GPON interface, plastic casing, external power supply adapter |
Description
AN-ONT-4-1000 GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
AN-ONT-4-1000 provide four GE auto-adapting Ethernet ports. The AN-ONT-4-1000 features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the AN-ONT-4-1000 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
