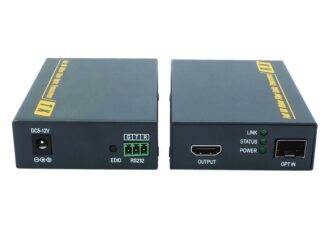

4K HDMI to Fiber Optic Extender with RS-232 port Industrial Pin Type Terminal
The AN-HDMI-EXT10 HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K@60Hz, EDID copy and RS232 function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Transmits HDMI video signals up to 2km-10km over a pair fiber optic cable;
- Support video resolution max up to 4Kx2K@60Hz, 1080p@60hz; 3D;
- Support copy EDID copy, can match many kind display device;
- Support RS232 undirectional transmission
- Compliance with HDMI 2.0 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 2.0 |
|
Maximum pixel clock |
340MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution range |
Up to 4Kx2K@60Hz, 3D, 1920*1200@60Hz |
|
|
Connector |
HDMI-A Interface |
|
|
HDMI Cable Range |
<5M( Resolution: 1920*1200@60Hz) |
|
|
Impedance |
100Ω |
|
|
RS232 |
Interface |
Industrial Terminal |
|
Signal Direction |
Unidirectional |
|
|
Baud Rate |
Self-adaptive,Max: 115200bps |
|
|
Data Bits |
8 |
|
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode |
|
|
Wavelength |
Single-mode 1310nm/ 1550nm |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
Single-mode fiber: standard 2km；maximum 10km Multi- mode fiber: < 300M |
|
|
Other |
Power supply |
The power adapter: DC 12V/1A |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
94.5*73*26mm |
|
|
The warranty |
1 year free warranty |
|

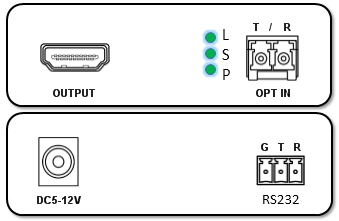

Receiver:

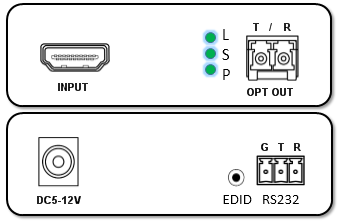

Transmitter:
|
Port name |
Description |
|
HDMI IN/OUT |
HDMI signal input/output |
|
EDID |
EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID. |
|
DC/5-12V |
Power adapter socket |
|
TX/ RX |
TX: Transmitter RX: Receiver |
|
RS232 |
Industrial Terminal |
|
FIBER |
SFP model — LC connector |
|
LED indicator |
Description |
|
L |
Optical fiber signal connection indicator |
|
S |
Video signal connection indicator |
|
P |
System power indicator |
|
TX/ Rx L,S, P All bright |
Devices is on EDID,HDCP, pass-through process |

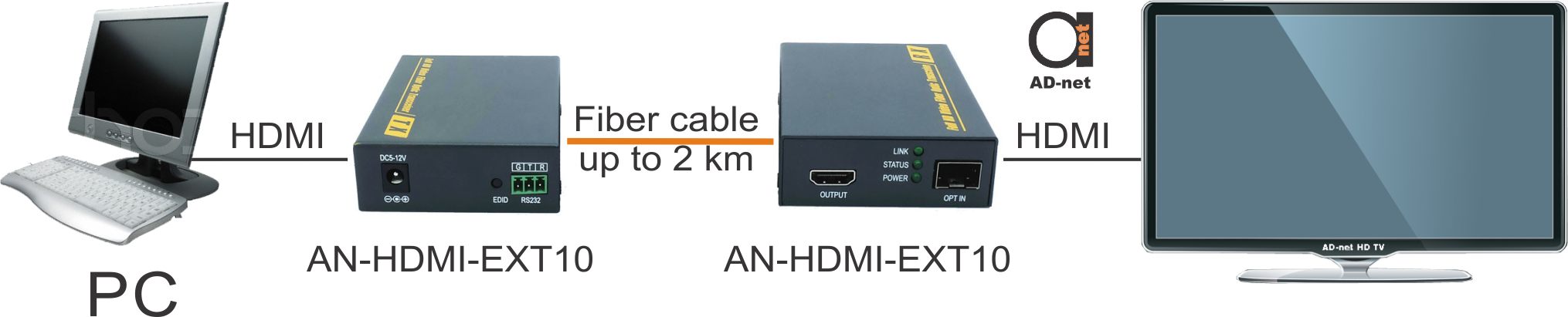

- The HDMI source HDMI optical transceiver connected to the sender,
- The HDMI optical receiver connected to the display device (such as high-definition TV, mosaic screen, etc.)
- The use of LC interface fiber optic cable to connect the sending end and the receiving end of the SFP module optical interface,
- The transmitter and receiver connected to the power supply, when the indicator light is lit, the system is running.
- On the EDID button use, such as the connection after the launch of the P, S, light, the receiving end of the indicator light, no display or color, the transmitter power to the HDMI port of the monitor and the transmitter HDMI port , Press the EDID button until the S light flashes, stop after the restart power, repeat 1-5 steps can be, if access to dual-fiber EDID and HDCP transparent mode for the signal source for the Blu-ray DVD and the need for two-way RS232 client
| AN-HDMI-EXT10 | 4K HDMI to Fiber Optic Extender with RS-232 port Industrial Pin Type Terminal, power adapter comes in set. |
Description
The AN-HDMI-EXT10 HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K@60Hz, EDID copy and RS232 function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
