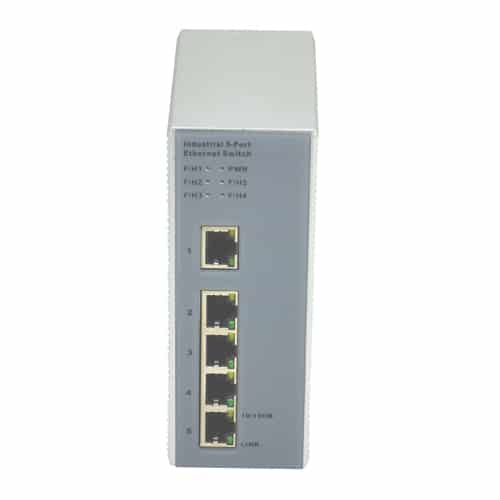

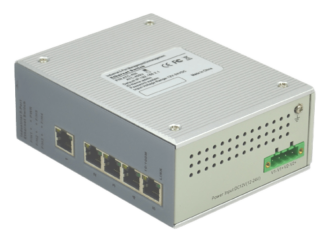

5 & 8 Port Industrial Managed & Unmanaged Fast Ethernet Switch
The AN-M-FE2005-I are standalone 5-port manged Ethernet switches and operates in store and forward mode. AN-M-FE2005-I have a lot of rich feature for different applications, include router application, firewall, IEEE 802.1Q, IGMP snooping, policy-based QoS. It provides powerful QoS function,include traffic policy, traffic meter, and flexible queue scheduling (WRR/WFQ/SP). In virtual LAN, IP175DLF support port-based VLAN and IEEE 802.1Q tag-tagged VLAN (up to 16VLAN groups).
- Support 16 VLAN (IEEE Std 802.1q)
- Shared/Independent VLAN Learning
- Support insert, remove tag
- Support VLAN priority remarking
- Support auto-polarity for 10Mbps
- Support Port mirror
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS and TOS, WRR/WFQ/SP to increase determinism
- Layer2-4 Multi-Field classifier
- Support 8-MultiField entry
- Support traffic policy
- Support Multi-Filed filter
- Support copy to mirror port
- Support trap to CPU port
- Support STP, RSTP and MSTP
- Support port-based access control
- Supports rate control
- In/Out port rate control
- Traffic Policy
|
Network Interface |
|||
|
Interface Type |
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
||
|
Connector |
8-pin RJ-45 * 5 |
||
|
Isolation Protection |
Built-in 1.5KV |
||
|
Technology |
|||
|
Standards |
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication |
||
|
Network Protocols |
ICMP,IP,TCP,UDP,DHCP,BOOTP,Telnet,DNS,HTTP,ARP |
||
|
Flow Control |
802.3X flow control frames on both transmit and receive sides |
||
|
Configure Options |
Web Page,Windows Utility |
||
|
OS support |
Windows Serial / Linux real / TTY / UNIX |
||
|
Switch Properties |
|||
|
Priority Queues |
4-level per port |
||
|
Max. Number of Available VLANs |
16 |
||
|
VLAN ID Range |
VID 1 to 4094 |
||
|
IGMP Table |
Up to 1K |
||
|
MAC Table Size |
2K |
||
|
Rate Control |
Range 0-100Mbps |
||
|
LED Indicators |
PWR |
Power Indicator |
|
|
F/H.x |
Indicate full duplex or half duplex |
||
|
LINK |
Indicate network connections status |
||
|
10/100M |
Speed Indicator |
||
|
Power Requirements |
|||
|
Input Voltage |
12VDC (12 to 24VDC),redundant dual inputs |
||
|
Protection |
Over-current and over-vvoltage protection |
||
|
Connector |

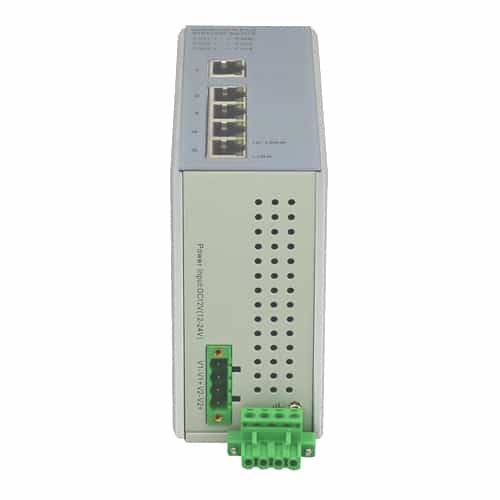

Removable 4-contact terminal blocks |
||
|
Physical Characteristics |
|||
|
Installation |

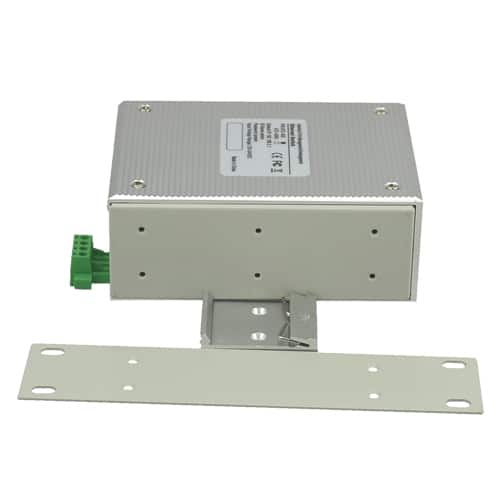

DIN-Rail Mounting |
||
|
Housing |
Aluminum & Iron |
||
|
Weight |
1.0Kg |
||
|
Dimensions |
106 × 54 × 136 mm(4.17 × 2.13 × 5.35 in) |
||
|
Environmental Limits |
|||
|
Operating Temperature |
-25 ~ 70°C (-13 ~ 158°F) |
||
|
Storage Temperature |
-40 ~ 85°C (-40 ~ 176°F) |
||
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
||
|
Standards and Certifications |
RoHS, CE, FCC |
||
| AN-M-FE2005-I | 5-Port 10/100M Fast Managed Industrial Ethernet Switches |
|
| AN-U-FE2005-I | 5-Port 10/100M Fast Un-managed Industrial Ethernet Switches |
|
| AN-M-FE2008-I | 8-Port 10/100M Fast Managed Industrial Ethernet Switches |
|
| AN-U-FE2008-I | 8-Port 10/100M Fast Un-managed Industrial Ethernet Switches |
Description
The AN-M-FE2005-I are standalone 5-port manged Ethernet switches and operates in store and forward mode. AN-M-FE2005-I have a lot of rich feature for different applications, include router application, firewall, IEEE 802.1Q, IGMP snooping, policy-based QoS. It provides powerful QoS function,include traffic policy, traffic meter, and flexible queue scheduling (WRR/WFQ/SP). In virtual LAN, IP175DLF support port-based VLAN and IEEE 802.1Q tag-tagged VLAN (up to 16VLAN groups). With the broadcast storm protection function support AN-M-FE2005-I increase the reliability and availability of your industrial Ethernet network.Models with an wide operating temperature range of -40 to 85°C are also available, and the switches support advanced management and security features, making the AN-M-FE2005-I switches suitable for any harsh industrial Environment. AN-M-FE2005-I series switches can be installed easily via DIN-Rail or in a distribution box.
