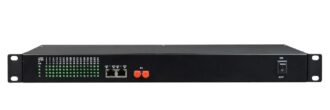

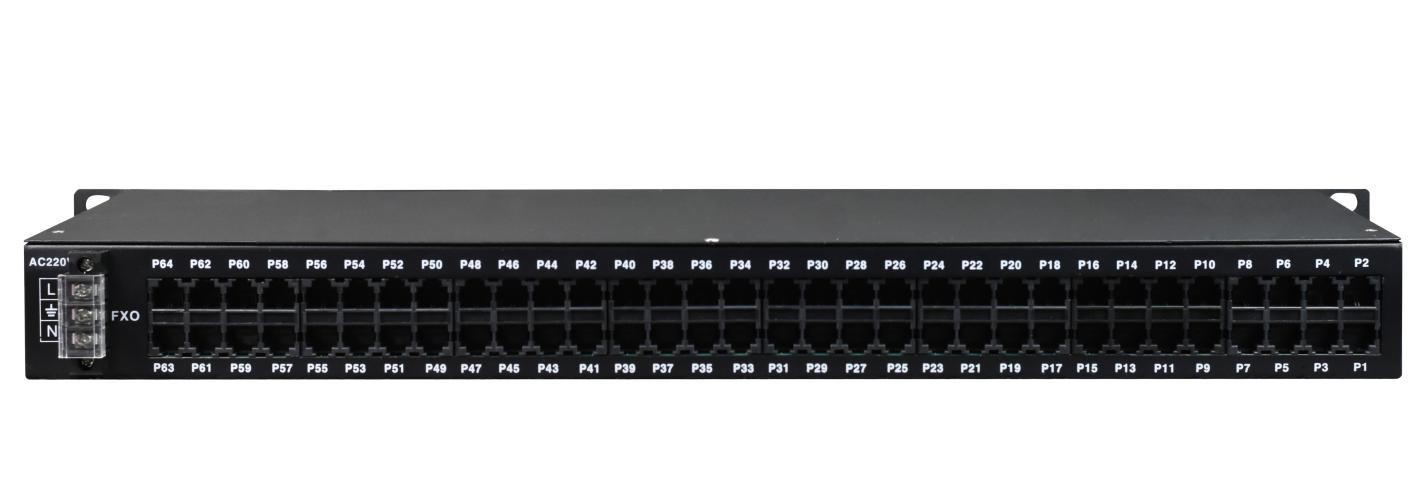

64 ports RJ-11 Phone Voice over Fiber Multiplexer with 2 x Fast Ethernet ports

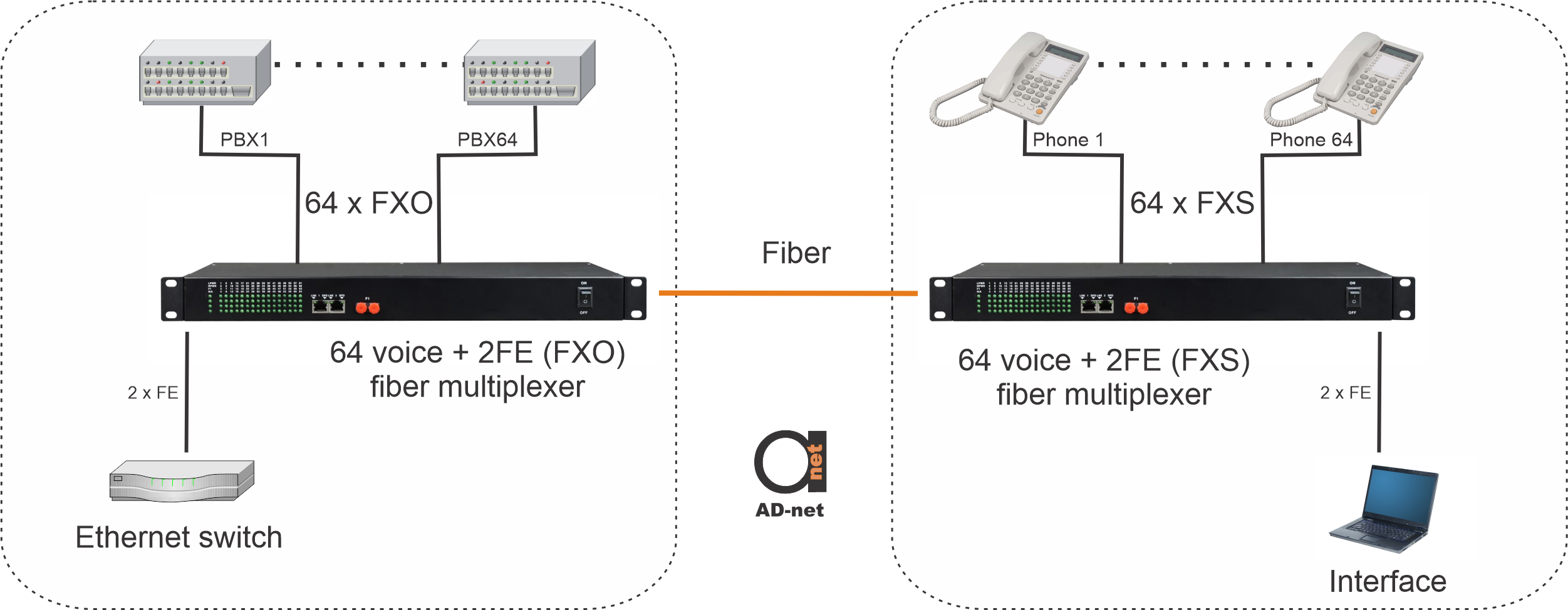

This device provides 1-64 Channel telephone, 2 Channel 10M/100M Ethernet interface (Wire Speed 100M), 2 Channel Ethernet interface is switch interface, can support VLAN. The whole machine works reliably and stably with low power consumption, high integration, small size and easy installation and maintenance.
- Based on self -copyright IC
- Voice port supports FXO and FXS port,Support FXO/FXS, Magnet telephone Interface, FXO port docking with program-controlled switchboard, FXS port connected to the user’s telephone;
- 1~64 channel Voice access, Voice FXO / FXS interface, support for caller ID / reverse polarity billing / fax function;
- Support various sites mutual number allocation function
- Ethernet interface supports 10/100M, half/full duplex auto- adaptable, support VLAN
- Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable)
- Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs, the peak output voltage 6KV open standards.
- The transmission distance is up to 2-120 Km without retranslations – depends on fiber type, and ordering option
- AC 220V, DC-48V, DC24V can be optional
Fiber
Multi-mode Fiber
50/125um
62.5/125um
Maximum transmission distance
5Km @ 62.5 / 125um multi mode fiber, attenuation (3dbm/km)
Wave Length: 1310nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um
9/125um
Maximum transmission distance: 20 – 120 Km (depends on ordering option
Transmission distance for 40m module
40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
Ethernet interface(10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
Return loss: 20 dB
Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
| Model | AN-FM-PCM64-2ETH |
| Functional Description | 64 * telephone，2*100 Mbps Ethernet，1* Fiber interface |
| Power |
Power supply: AC180V ~ 260V; DC –48V; DC +24V Power consumption: ≤10W |
| Dimension | Product Size: 485X138X45mm(WXDXH) 19 1U |
| Weight | 2.0KG |
| AN-FM-PCM64-2ETH | 64 ports RJ-11 Phone Voice over Fiber Multiplexer with 2 x Fast Ethernet ports, AC or DC power options available, SM or MM fiber with various distances |
