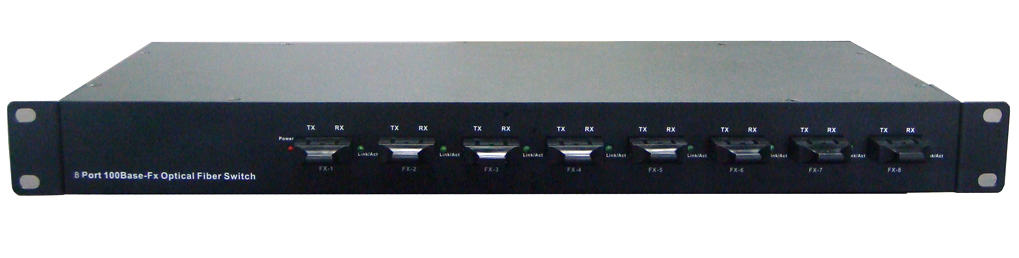

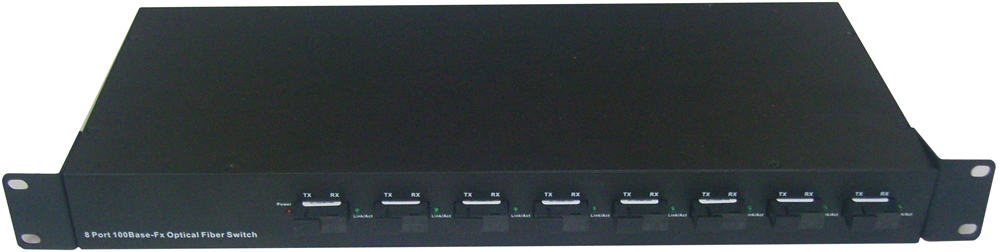

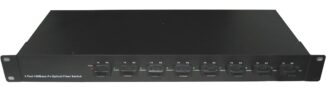

8 Port Web-managed Fiber optic switch

AN-WEB-S5008 is an 8-port web- configurable optical Ethernet switch specifically designed to deliver enterprise-class features, customized and priced for small and mid-sized organizations. It provides an affordable solution for direct connection of up to eight computers / Ethernet-based terminals of FTTx, optical LAN, Ethernet based DCS and security surveillant system, etc., where the environmental conditions exceed the reach of CAT5 copper cable.

Eight 100Base-FX Half/Full duplex switch ports
2048 MAC address table (4-way hashing)
Two queues for QOS (1:2 or 1:4 or 1:8 or 1:16)
Port-based, 802.1p and IP TOS priority
Store & forward architecture and performs forwarding and filtering at non-blocking full wire speed
An aging function and 802.3x flow control for full duplex and a backpressure function for half duplex
Packet lengths up to 1522 bytes
Congestion Flow Control (HOL)
Port-based VLAN and adjustable VLAN to support up to 32 VLAN groups
Broadcast storm filter

Network Protocol and Standards
IEEE802.3u 100Base-FX optical Ethernet
IEEE802.3ah 100Base-BX10
IEEE802.3x flow control
IEEE802.1p priority
IEEE802.1q VLAN
TCP/IP, DHCP

Port Configuration
Eight 100Base-FX or eight 100Base-BX10 ports.

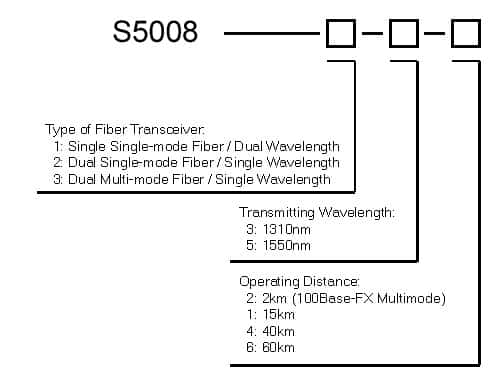

Optical Interface Options
Single single-mode fiber, dual wavelengths, SC/PC connector, operating distance 15/40 km.
Dual single-mode fibers, single wavelength, SC/PC connector, operating distance 15/40/60 km.
Dual multi-mode fibers, single wavelength, SC/PC connector, operating distance 2 km.

Dimensions: 19-inch rack-mount width, 1.0U height.
Weight: 3Kg
Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -25 ℃ ~ 55 ℃
Humidity: 5% ~ 95% RH Non-condensing.

Description

S5008 combines the latest advancements in fiber optic and chip technologies with feature-rich network management controls to give the most advanced, yet affordable optical Ethernet solutions. The functions of the S5008 Ethernet switch permit all the connected computers / terminals to be able to communicate and share the resources with each other without the limitation of physical location. A user-friendly browser interface provides easy-to-use tools so that even network novices can easily configure and administer the network, configure individual port speeds, VLANs, link aggregation, and traffic prioritization, keep an eye on network traffic and statistics, and troubleshoot the switch.
