8 Voice (FXS/FXO) POTS fiber multiplexer, Ethernet & E1, serial ports as options
AN-FM-PCM08 fiber mux is an optical transmission equipment realizing long-distance voice transmission through fiber. Primary interfaces are 8 x FXS/FXO voice but additional E1, Ethernet or E1 can be added upon request
- Low cost solution for delivering analogue POTS lines over long distance fibers;

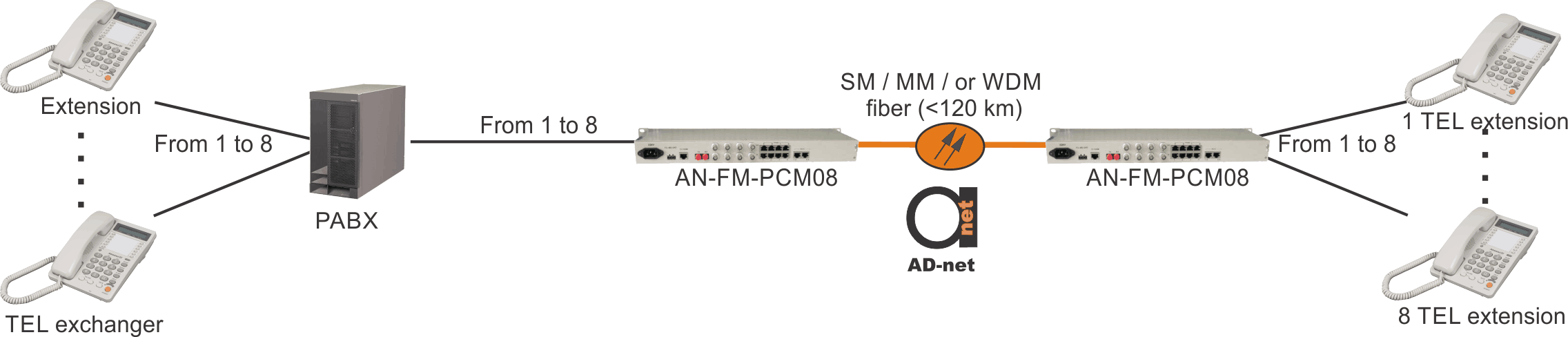

- up to 8 FXO ports for connection to PABX or PSTN;

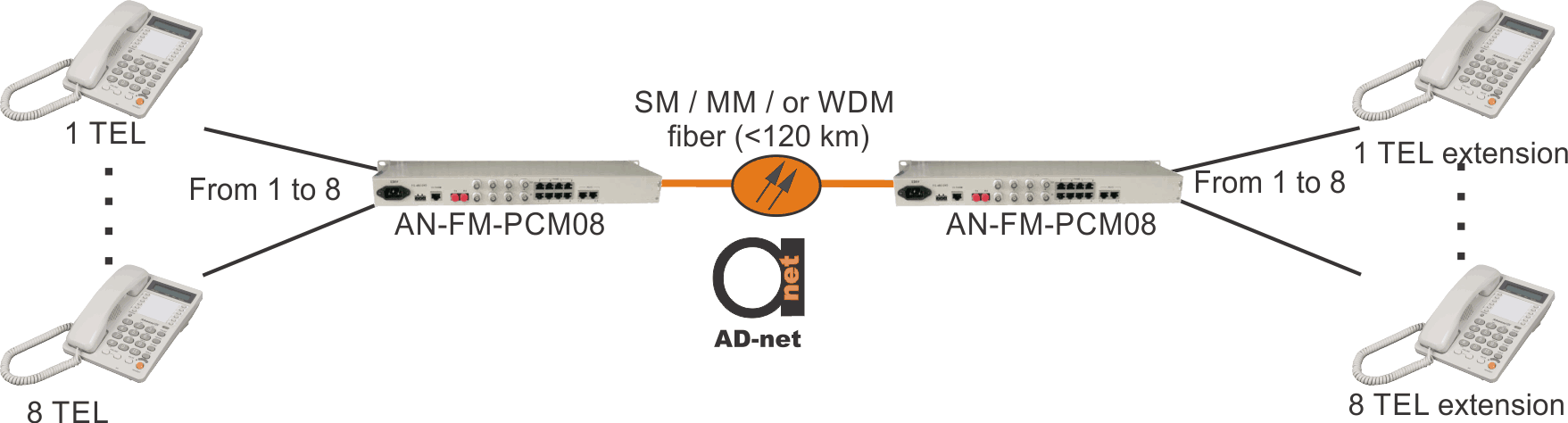

- up to 8 FXS ports for connection of phones or faxes;
- Ethernet port for LAN interconnection;
- RS-232 for data transmission
- Up to 4E1 ports as an option for PABX interconnection or any other E1 Leased lines services
- MTBF more than 10 years
- WDM Bidi fiber interfaces avalaible
FXS
ringing voltage: 75V
ringing frequency: 25HZ
FXO
two line input impedance: 600 Omega (hanging off)
wastage: 40 db
ringing detecting voltage: 35V
Optical Interface Parameter
optical wavelength: 850nm/1310nm for multi-mode optical interface, 1310nm/1550nm for single-mode optical interface
optical interface: SC/FC
receiving and dispatching module: >-6dBm
optical receiver receiving sensitivity -30dB
transmitting range: Multi-mode 2 Km, single-mode 40Km, single-mode 60 Km, single-mode 120Km, WDM bidi available
vibration characteristic: Comforms G.742 and G.832 standard
Features Slideshow:
Real beauty & difference for these type of models, from M-type RJ-11 types, are that it can have 19′ rack mount casing, and – double power, just like in below video we are testing 48VDC + AC 110/220 version:
| AN-FM-PCM08 | 8 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, AC110/220V or DC-48V; |
|
| AN-FM-PCM08/4E1/ETH | 8 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), AC110/220V or DC-48V; |
|
| AN-FM-PCM08/4E1/ETH/RS-232 | 8 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), and RS232 port AC110/220V or DC-48V; |
Description
This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities.
AN-FM-PCM8 fiber mux can provide 1-8 channels, telephone through optical cable, the network application is point-to-point, supporting FXO/FXS. It has solved telephone transmission problem of edge customers. This equipment uses special digital multiple-connected chip whose function is formidable, and it integrates nearly all the digital logical function of equipment, thus remarkably enhancing product performance and reducing cost.
Additional channels of E1, Ethernet and RS-232 can be added upon request
