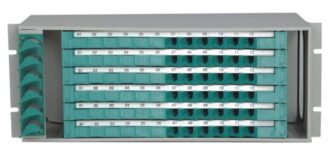

AN-FDB-01-72-A Type Multitray Slide in Optical Distribution Frame
AN-FDB-01-72-A is high quality, 19' rack mount fiber distribution box/cabinet for fast and convienent cable laying and distribution on optical distribution rooms, frames. There are LC/SC/FC or any other connectors available on request
- 12 or 24 ports easy move-in/move-out trays are available upon request;
- Suitable for 19′ or 23′ ODF’s and rack’s;
- Adaptors are clipped at 28 degree angle, so it protects the fiber cable from unnecessary bending, also protects technician eyes;
- Can be used as for ribbon type cable, or for regular pigtails;
- SC/PC/LC or any you ask adapters are available in set;
- Big enough to store more than 3 m of pigtail;
- Effective mounting elements for cable laying inside the box
- Full set of installation materials are supplied like nuts&bolts, protection elements, tape and more;
- Up to 72 ports capacity for this model
| AN-FDB-01/12 | Multitray Slide in Optical Distribution Frame, 1 in-out slide in tray in set, 12 ports capacity |
|
| AN-FDB-01/24 | Multitray Slide in Optical Distribution Frame, 1 in-out slide in tray in set, 24 ports capacity |
|
| AN-FDB-01/36 | Multitray Slide in Optical Distribution Frame, 1 in-out slide in tray in set, 36 ports capacity |
|
| AN-FDB-01/48 | Multitray Slide in Optical Distribution Frame, 1 in-out slide in tray in set, 48 ports capacity |
|
| AN-FDB-01/60 | Multitray Slide in Optical Distribution Frame, 1 in-out slide in tray in set, 60 ports capacity |
|
| AN-FDB-01/72 | Multitray Slide in Optical Distribution Frame, 1 in-out slide in tray in set, 72 ports capacity |
Description
The box is made in a style of separately installable cassetes, each of them can have or 12 or 24 ports. This allows cable installer make more easy fiber cable splicing and connection, because each of the trays can be removed separately, so it later makes also more easy maintanance. You can add more cassetes (trays) as you grow. Pure pay as you grow solution in optical distribution solutions.
