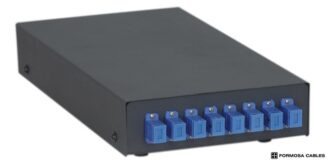

AN-FDB-07-SC8 micro fiber optical termination box
AN-FDB-07-SC8 is high quality, micro sized fiber optical termination box for fast and convienent cable laying and distribution on optical distribution rooms, frames.
- Plastic Body & Metal Shelf
- Splice trays optimized
- Heat shrinkable protecting tube,hang tools available
- Up to 8 cores splice capacity
- Outside dimension (LxWxH): 260X140X40
- Advanced internal structure design
- The casing is made of high quality ABS, compact and lightweight
- Lightning strike, erosion, aging resistance.
- Easy to re-enter, it never requires re-entry kits
- SC – SC adapter version
| AN-FDB-07-SC8 | 8 cores FTTH/FTTH micro fiber termination box, for SC adapter type |
Description
SC connector version AN-FDB-07-SC8 small ODF (optical distribution & termination box) is designed specially for FTTH / FTTB applicatons, of which the application needs small fiber count splicing. Capacity – up to 8 cores
