AN-GSHDSL-CH – Central SNMP & GUI managed access node / platform

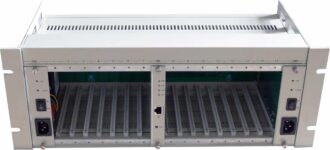

AN-GSHDSL-CH is a 19” standard Rack, designed for Central site. AN-GSHDSL-CH contains one backplane board, Power supply Card, Management Card & different types of GSHDSL modem function cards.

AN-GSHDSL-CH can be populated by 15 function cards, 2 power supply cards & 1 management card.

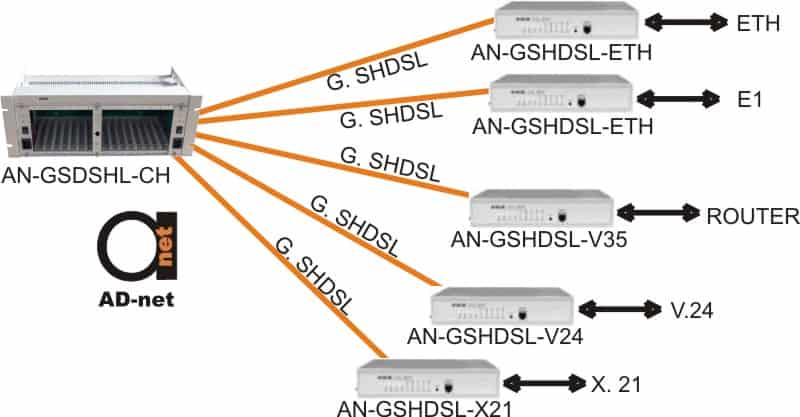

Support different type of function cards (like G.SHDSL card), which can be inserted in any slot of rack (1 – 15)
Power Supply (DC or AC) with hot standby Redundancy (1+1)
One power supply card can meets the requirement of fully configured rack

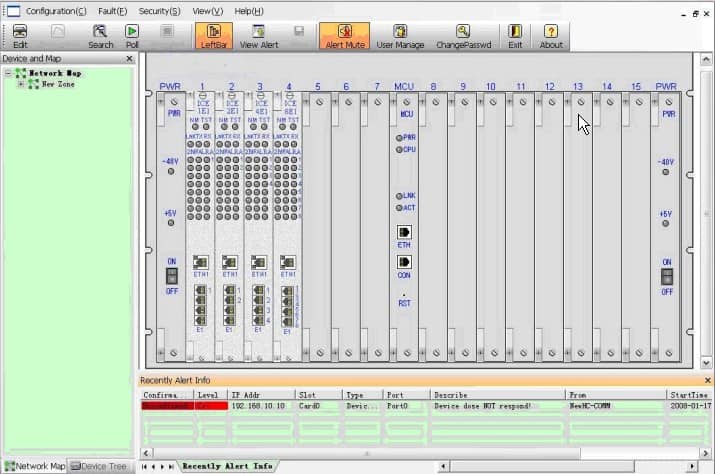

Centralized Management through MCU card
Power consumption when the rack is fully configured is < 60W.
Center slot marked MCU used for MCU card
1 to 7 and 8 to 15 slots from left to right are universal slots for function cards i.e. optical to E1 card, Ethernet to E1 card, V.35 to optical card, E1 to Ethernet card, E1 to G.SHDSL card, Ethernet to G.SHDSL card, V.35 to G.SHDSL card or any combination may be inserted in any slot.
The left most & right most slots marked with PWR are used for power supply cards
(Optional) Two in-built FAN are available for cooling purpose.
Can manage various function cards which are inserted in various slots
Support console interface for Firmware upgrade

Equipment dimension: 4U height & 19” rack Mountable
Power Supply: -48V DC or 220V AC
Redundancy: In Power Supply and it is hot swappable
Temperature: 0°C to +55°C
Humidity: 0 – 95% non-condensing

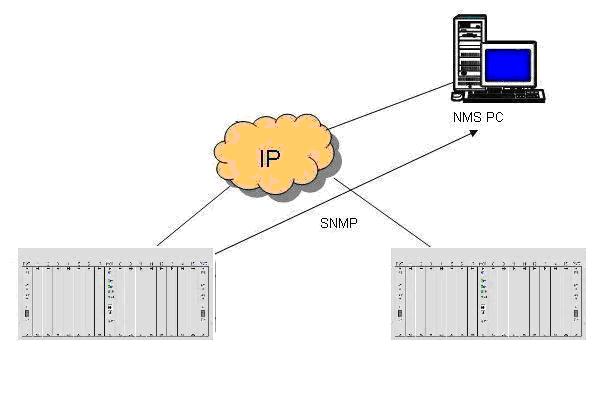

Figure1: SNMP network management topology, based on AN-GSHDSL-ETH

AN-GSHDSL-CH/AC	15 function card slots, 2 power supply cards & 1 management card, AC power
AN-GSHDSL-CH/AC/AC	15 function card slots, 2 power supply cards & 1 management card, AC + AC power
AN-GSHDSL-CH/DC	15 function card slots, 2 power supply cards & 1 management card, DC power
AN-GSHDSL-CH/DC/DC	15 function card slots, 2 power supply cards & 1 management card, DC + DC power

Description

AN-GSHDSL-CH has total 18 slots and out of 18 slots, one left most & one right most slots marked with PWR are used for power supply cards and one Center slot marked MCU used for management card. In case of power supply hot standby redundancy (1+1) is provided, if one PWR card fails then other one can take care for the power supply requirement of the rack and the rack will work normally. Each PWR card has been capable to meets power requirement of the fully configured rack has total 18 slots and out of 18 slots, one left most & one right most slots marked with PWR are used for power supply cards and one Center slot marked MCU used for management card. In case of power supply hot standby redundancy (1+1) is provided, if one PWR card fails then other one can take care for the power supply requirement of the rack and the rack will work normally. Each PWR card has been capable to meets power requirement of the fully configured rack.
