AN-GSHDSL-ETH (Ethernet 10/100 Mbit/s) shdsl modem
AN-GSHDSL-ETH shdsl modem uses G.SHDSL technology, complying with the ITU and ETSI standards, to extend the range of 10/100 Mbit/s Fast Ethernet interfaces.
- Extends the range of 2Mbps data transmission up to 4Km
- Up to 2.048 Mbit/s Ethernet speed for deliver LAN and Internet services to remote areas via existing twisted pair infrastructure
- Shdsl modem supports all industry standards, and made especially to work with other third party vendors TDM equipment, what supports G.SHDSL standard
- Monitoring, control and diagnostics of local and remote units are made by Network Management System
- Perfomance monitoring available on console management
- Robust, error free transmission algorithm used
- Remote and local loopbacks for testing purposes
- Industries probably most effiecient TC PAM-16 line coding for effective twisted pair usage and high distances
| Line Interface | User Interface |
| Stadard：ITU_T G.991.2 G.994.1 Line: 2-Line Data Rate：64K~2048Kbps Line Coding: TC 16-PAM Approximate range：4Km (test in 0.4 mm , 2-wire) Connector：RJ11 |
E1： 2048Kbps,both 75 and 120Ω V.35 DTE： 64～2048Kbps 10/100Base-T： 10/100 Mbps |
|
other |
|
| L*W*H：175×44×200 mm Power：-48VDC（80mA）or 220VAC（20mA） |

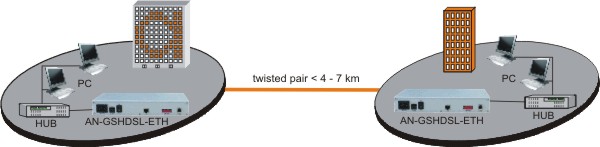

Application scenario:
| AN-GSHDSL-ETH | Standalone G.SHDSL Modem with 10/100 Ethernet LAN interface, 220 V AC or 48 VDC for option |
Description
AN-GSHDSL-ETH shdsl modem use TC PAM-16 line coding, equalization, adaptive filtering and echo cancellation to compensate for line impairments, bridge taps and mixed cabling. This provides immunity to background noise and enables transmission of multiple SHDSL lines on the same physical cable. AN-GSHDSL-ETH can be managed via VT-100 compatible Asynchronous Terminal Interface.
AN-GSHDSL-ETGH is equipped with an adaptive auto rate capability that identifies the maximum line rate supported by the copper loop.
