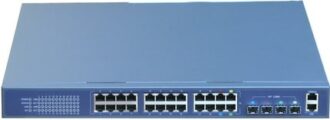

AN-L3-S5024TF 24 Port 10/100/1000 Base-T + 4 Port Gigabit SFP Layer 3 Gigabit Switch

AN-L3-S5024TF 24 Port 10/100/1000 Base-T + 4 Port Gigabit SFP Layer 3 Gigabit Switch is ecurity intelligent multi-layer switch is a new-generation switch for network security. It offers multi-service and high performance.

Advanced Security
Comprehensive ACL access control policies
User MAC address based ACL list definition
IP protocol (TCP/UDP) based ACL
TCP port number based ACL
UDP port number based and time based ACL
Can identify legal service terminals with bounded VLAN-IP-MAC
Supports user access control protocol 802.1x
Provides more efficient user port control than the traditional method
Port MAC address limitation function can control the host number accessing the specified port;
Supports PVLAN
Offers strict port segregation within 802.1Q VLAN
Patented CPU protection technique checks and filters the data sent to the CPU to avoid malicous attacks
Several authentications for protocols such as RIP, OSPF, etc

Flexible QOS
Supports intelligent QoS to meet the high quality demand for voice, video and other real-time multimedia services
Priority based on IEEE802.1P tagged information and quintuple flow classification service
Supports flow-based multilayer CoS and ToS to meet the demand of real-time multimedia service such as ideo conference; Self-defined multilayer flow classification rules, with 1024 flow rules supported in one device
8 priority queues supported per port, with congestion prevention and flow-shaping

Comprehensive routing protocol support
Supports a rich set of routing technology which covers almost all the current existing routing technologies
Supports unicast routing protocols: RIP V1, RIP V2, OSPF, BGP, static routing
Supports multicast routing protocols: IGMP, PIM-SM
Supports redundancy backup protocol: VRRP
Convenient Maintenance and Control
Supports NM methods such as SNMP, CLI, RMON, TELNET, WEB; Supports BOOTP,TFTP and FTP


System
Port Number	24 10/100/1000Base-T interfaces; 4 Gigabit SFP COMBO
Switching Capacity	48G
Packet Forward Capability	>35.7Mpps
Power Consumption	<70W
Basic Performance
MAC Address Table	32K
Routing Table Entries	8K
Buffer Capacity	Shared 32M
Forwarding Mode	Store-and-forward
Network and Flow Control
PVLAN	Yes
VLAN	802.1Q 4k
QoS	8 priority queues per port; flow shaping and rich scheduling methods
Queue Dispatching Methods	WRR, SP, WRR+ SP
Port Convergence	FE, GE port convergence; maximum 32 groups with 8 ports per group
Routing protocols
Unicast	Static Routing, RIP V1/V2, OSPF V2,
Multicast	IGMP, PIM-SM,
Policy Routing	Yes
Num of Routing Interfaces	512
Security Feature
802.1X	Yes
Web portal	Yes
ACL	1K
MAC address limitation	Yes
Broadcast Strom Suppression	Yes
CPU Protection	Yes
Port Speed Limitation	8K granularity
Management Features
SNMP	SNMP V1 /V2c /V3
RMON	1,2,3,9
HTTP	Yes
CLI	Yes
*Dimension (LW H)*	443mm×360mm×44.5mm	443mm×280mm×66.7mm
Working Environment	0~40℃ 10～90％ non-condensing
Weight	<6.5Kg

AN-L3-S5024TF

24 ports Gigabit TX interfaces, 4 Port Gigabit SFP slots

Description

With large capacity and high performance switching, it also features advanced security. It is the premium option for the convergence layer access control of small or middle-sized MAN, or the access switch for enterprise users.

Nowdays, when tetwork faces all kinds of security threats, secret leakage and attacks, The AN-L3-S5024TF security
