AN-miniSDH
AN-miniSDH is a carrier-class, cost-effective, compact (only 1U high) SDH/MSPP platform
- 4 General Slots, supporting a range of interface cards, including SDH, PDH, Ethernet, and V.35 cards.
- Ethernet service supporting GFP encapsulation, VC12 virtual concatenation (1~63 VC12)
- Large cross-connect matrix capacity is 504—504 VC-12s (8—8 VC-4s) and powerful networking ability
- LCD display for system configuration and alarm
- Inter-working with popular SDH/MSPP products of various vendors
- Suitable for 3G access network transmission
- Easy commissioning and maintenance
- High integration, compact design
- High reliability, low CAPEX and OPEX
SDH signal interface:
Bit rate： 155520kbit/s (STM-1，G.957, framing G.707)
Line code： Scrambled NRZ
Optic ports：1 or 2 optic ports selected
V35 port
Comply with ITU-T V.35/V.36， DCE mode，DTE mode，N ×64kbps （1 £ N £ 32）
Ethernet data port
Two 100Base-Tx Ethernet ports.
Comply with IEEE 802.3 related suggestions.
10M/100M auto-adapted
The channel rate of Ethernet can be adjusted among 2M to 100M, and the rate can be decided by setting the quantity of VC12(1~46).
Half duplex/full duplex auto-adapted
HP auto-MDIX，MDI and MDI-X auto-adapted,connector:RJ45 socket
E1 port
Comply with ITU-T G.703.Bit rate:2048kbit/s ±50ppm，code：HDB3, 75ohm or 120ohm

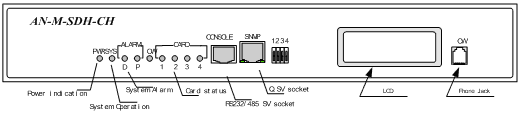

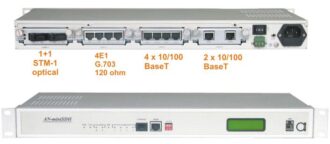

Front panel functional drawing scheme are below:
Application scenario:

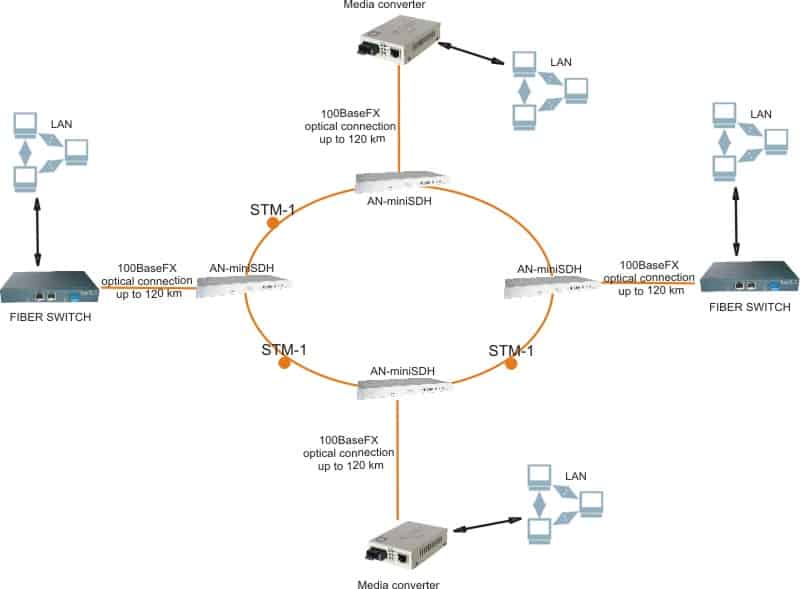

Application Scenario Nr.1 SDH core network integration with FtFH/FTTB Ethernet networks.
Application Scenario Nr.2: SDTH core, and access networks with varios AD-net SDH multiplexers involved
| AN-M-SDH-CH | Multi-service SDH access equipment, core chassis with 4 physical slots for modules. AC/DC power supply |
|
| AN-M-SDH-STM1v1 | Single STM-1 optical interface card with 1-port STM-1 optical interface, connector: SC |
|
| AN-M-SDH-STM1v2 | Single STM-1 optical interface card, 1-port STM-1 optical interface ,Single 1310nm, connector：SC |
|
| AN-M-SDH-STM1-WDM | Single STM-1 optical interface card, 1-port STM-1 optical interface ,Single mode WDM (BIDI) 1310nm, connector：SC |
|
| AN-M-SDH-STM1v3 | Single STM-1 optical interface card, 1-port STM-1 optical interface , 1310nm, high-power, transport distance < 70km |
|
| AN-M-SDH-STM1v4 | Single STM-1 optical interface card, 1-port STM-1 optical interface , 1550nm, high-power, DFB, transport distance < 120km |
|
| AN-M-SDH-2-STM1v1 | Double STM-1 optical interfaces card, 2-port STM-1 optical interface，connector: SC |
|
| AN-M-SDH-2-STM1v2 | Double STM-1 optical interfaces card, 2-port STM-1 optical interface and 1-port is high-power，transport distance < 70km |
|
| AN-M-SDH-2-STM1v3 | Double STM-1 optical interfaces card, 2-port STM-1 optical interface and 1-port is high-power，transport distance < 120km |
|
| AN-M-SDH-2-STM1v4 | Double STM-1 optical interfaces card, 2-port STM-1 optical interface，high-power, transport distance < 70km |
|
| AN-M-SDH-2-STM1v5 | Double STM-1 optical interfaces card, 2-port STM-1 optical interface，high-power, transport distance <120km |
|
| AN-M-SDH-2-STM1v6 | Double STM-1 optical interfaces card, 2-port STM-1 optical interface and 1-port is high-power and 1-port is DFB high-power |
|
| AN-M-SDH-2-STM1v7 | Double STM-1 optical interface card, 1-port STM-1 optical interface ,Single mode WDM (BIDI) 1310nm, connector：SC |
|
| AN-M-SDH-2-STM1v8 | Double STM-1 optical interface card, 1-port STM-1 optical interface ,Single mode WDM (BIDI) 1550nm, connector：SC |
|
| AN-M-SDH-2-STM1v9 | 2-port STM-1optical interface, single fiber, 1310nm for east, 1550nm for west |
|
| AN-M-SDH-4E1-75 | 4-port E1, 75 ohm tributary card |
|
| AN-M-SDH-4E1-120 | 4-port E1, 120 ohm tributary card |
|
| AN-M-SDH-8E1-75 | 8-port E1, 75 ohm tributary card |
|
| AN-M-SDH-8E1-120 | 8-port E1, 120 ohm tributary card |
|
| AN-M-SDH-2V35 | 2-port framed V35 serial interface tributary card |
|
| AN-M-SDH-2ETH | 2-port Ethernet，sharing the transport channel, transmit VC12 |
|
| AN-M-SDH-4ETH | 4-port Ethernet，separate VC mapping on each of the ports, transmit VC12 |
|
| C-75-OHM | 75 ohm cable |
Description
As a key member of AD-net SDH/MSPP Product family, AN-miniSDH is a carrier-class, cost-effective, compact (only 1U high) SDH/MSPP platform that is designed for applications in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers.
AN-miniSDH is a modularized unit with 4 universal slots, supporting different interface cards, such as STM-1 fiber optic cards, E1 cards, Ethernet cards (EoS VCAT), and V.35 card. The main board cross-connect capacity is 504—504 VC-12s (8—8 VC-4s), allowing non-blocking adding/dropping services among different interfaces. It supports the hybrid transmission of SDH, PDH, Ethernet and N—64K V.35 services within the same equipment. With the large capacity cross-connect matrix, the AN-miniSDH can be configured as ADM, TM, and REG. It is suitable for multiple network topologies such as point-to-point, chain, ring, hub, and mesh networks
