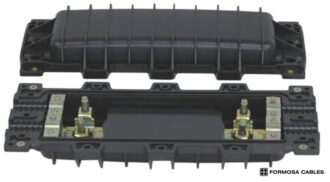

AN-OCJE-(04) 2 Type – 2 way in | 2 way out outdoor fiber optic joint enclosure, up to 96 cores capacity
AN-OCJE-(04)-2 Type - 2 way in | 2 way out outdoor fiber optical joint enclosure, with 12, 24, 36, 48, or 60 cores capacity. Plastic body, metal shelf ,fiber splice tray, airtight materials, heat shrinkable protecting tube,hang tools etc in set.
- Advanced internal structure design
- AN-OCJE-(04) 2 Type – 2 way in | 2 way out outdoor fiber optical joint enclosure, up to 96 cores capacity
- The casing is made of high quality ABS, compact and lightweight
- Lightning strike, erosion, aging resistance.
- Logical design, waterproof structure, easy installation, convenient maintenance;
- Easy to re-enter, it never requires re-entry kits
- Technician protection system for eyes;
- Elastic seal fitting , easy for future capacity upgrades and re-enters
- Insert plates and fixing bolts are used for fixation of closure
- Outside dimension (LxWxH): 435X190X120
- Max capacity is up to 96 cores (more on request)
- Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc ;
| AN-OCJE-(04)-2/12 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 12 cores capacity |
|
| AN-OCJE-(04)-2/24 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 24 cores capacity |
|
| AN-OCJE-(04)-2/36 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 36 cores capacity |
|
| AN-OCJE-(04)-2/48 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 48 cores capacity |
|
| AN-OCJE-(04)-2/60 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 60 cores capacity |
|
| AN-OCJE-(04)-2/72 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 72 cores capacity |
|
| AN-OCJE-(04)-2/84 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 72 cores capacity |
|
| AN-OCJE-(04)-2/96 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 72 cores capacity |
Description
AN-OCJE-(04)-2 Type is a superb, Taiwan quality lightning strike, erosion, aging resistance Logical design, waterproof structure, easy installation, convenient maintenance Optical Cable Joint Enclosure for up to 96 fibers.
Selectable capacities as ordering options are 12 | 24 | 36 | 48 | 60 | 96 cores
Used worldwide in cable desiging of FTTH/FTTB networks, AD-net cable splicing solutions proven to be one of most effective and good quality in market.
