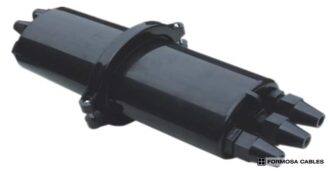

AN-OJCE-JF/K type (overhead), 3 in 3 out, up to 147 cores

AN-OJCE-JF/K-O - 3 way in | 3 way out outdoor fiber optical joint enclosure (overhead), with up to 147 cores capacity. Special type for various applications, robust waterproof structure body

Advanced internal structure design
The casing is made of high quality ABS, compact and lightweight
Lightning strike, erosion, aging resistance.
Logical design, waterproof structure, easy installation, convenient maintenance;
Easy to re-enter, it never requires re-entry kits
Technician protection system for eyes;
Elastic seal fitting , easy for future capacity upgrades and re-enters
Insert plates and fixing bolts are used for fixation of closure
Outside dimension (LxWxH): 690X280X190
Max capacity is up to 147 cores (more on request)
Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc
Suitable for buried underground and overhead use and harsh outdoor environment

AN-OJCE-JF/K-O/12	Optical fiber joint enclosure for outdoor applications, 12 cores
AN-OJCE-JF/K-O/24	Optical fiber joint enclosure for outdoor applications, 24 cores
————————	—————————- and so on n x 12 cores till
AN-OJCE-JF/K-O/147	Optical fiber joint enclosure for buried applications, 147 cores

Description

AN-OJCE-JF/K-O Type for overhead applications is a superb, Taiwan quality lightning strike, erosion, aging resistance Logical design, waterproof structure, easy installation, convenient maintenance Optical Cable Joint Enclosure for up to 147 fiber cores.

Selectable capacities as ordering options are n x 12 and up to 147 cores

Used worldwide in cable desiging of FTTH/FTTB networks, AD-net cable splicing solutions proven to be one of most effective and good quality in market.
