AN-TP-1 Ground Loop Isolator

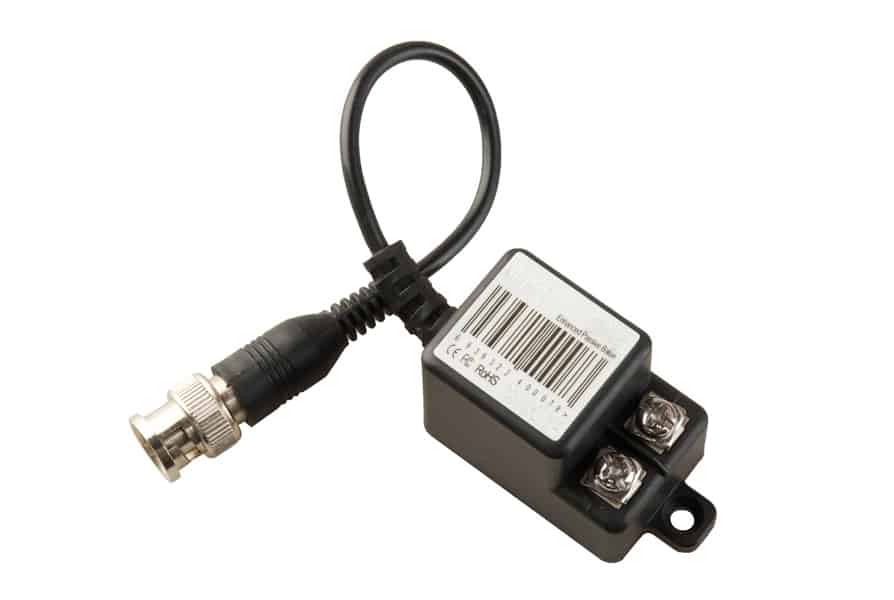

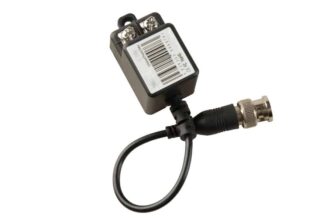

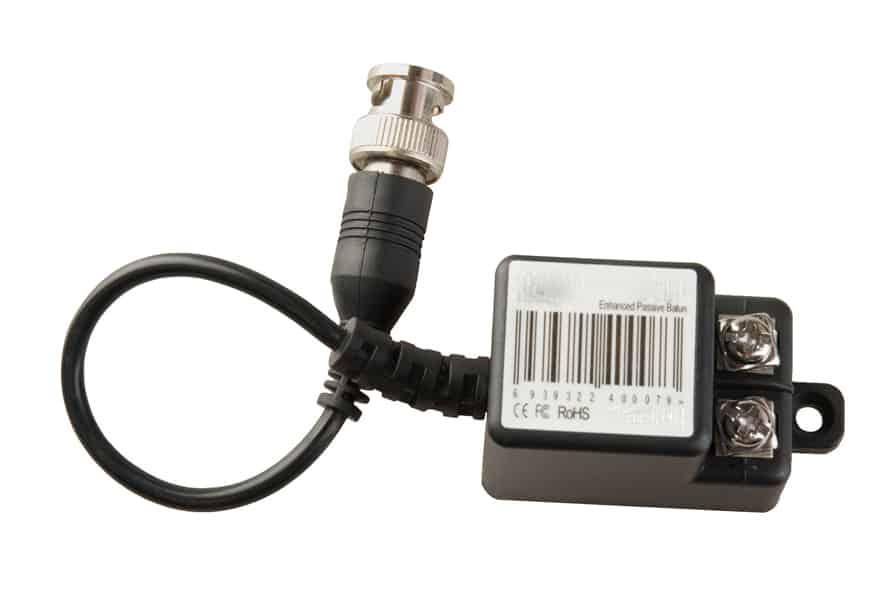

AN-TP-1 Ground Loop Isolator with Two Screw Terminals for UTP cable and Male BNC with extend 175mm pigtail

Transmission range: color signal 225m(750 feet) working with AD-net Passive Receivers, and 800m(2624 feet) with AD-net Active Receivers;
Built-in unique video iso-type transformer and passive isolation circuit, connects two equipments via magnetic circuit, effectively cut ground-loop circuit current;
Built-in transient protection;
Directly connected to output terminal of camera.
Better interference rejection than coax

Video
Frequency	DC20Hz-10Hz+0/-3dB
Attenuation	Maximum 1.5dB
Common mode/Differential-mode Rejection	15KHz-5MHz Typical 60dB
Resistance BNC Coax	75ohm
Connector UTP Cable	100ohm
Cable Type:
Specification	24AWG or Thicker Cat-3 above
Resistance	100ohm±20％
DC Loop Resistance	18ohm/100m
Differential Capacitor	62pf/m
Ground Loop Circuit Isolation	>90dB >50Hz
Environment:
Temperature	Operating: -20° to 75° C
Humidity	0~95%
Anti-transient Ability	6000V 1.2μS×50μS
Weight	48g(1.693oz)
Dimensions	Length 52mm(2.047in) * Width 18mm(0.709in) * Height 30mm(1.181in)

AN-TP1

Single Channel Passive Isolator, Two Screw Terminals for UTP cable, Ground loop circuit isolation, Male BNC with extend 175mm pigtail

Description

Along with the development of the CCTV, it’s more and more necessary to utilize a kind of high-quality and low-priced video transferring method. The traditional coaxial cable and fibre-optical transferring methods can only solve the short and long-distance video transferring problems, however, the picture signal transferring for a distance around 1000 meters becomes the bottle-neck of the monitoring field. A series of twisted-pair video transferring equipment researched and developed by AD-net Technology Co. Ltd. use one of the four non-sheltering Cable 5 or above twisted-pairs to transfer the basic band video signal with high-quality, and can realize the transferring of one or more high-quality video signal or control signal in the same cable. What’s more, the signals will not interfere with each other with the nominal transferring distance between 0~1500 meters. This kind of twisted-pair video transferring equipment has super strong anti-interference ability, which makes it the best choice in such strong-interfering environments as the lift, concrete plant, steel plant and electric plant etc.

This kind of transferring method has lots of advantages such as convenient wiring, simple installation, high reliability, strong anti-interference ability, good transferring effects and low system cost etc. Its utilization has brought great changes to the traditional wiring methods in all kinds of monitoring places as the intelligent building and residential districts. It provides a high performance/price ratio solution to the monitoring engineering system design
