Cable type single port 75 120 ohm converter

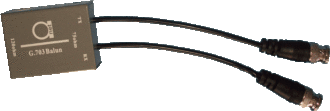

AN-IC-C1 is single port balun G.703 E1 interface cable type impedance converter (75Ω dual coax and 120Ω twist pair). It is used conveniently without power supply. Two coaxial cables are assemblied with converter, which make it's use more easy as ever.
- Data Rates to 2.048 Mbps
- 75 Ohm Dual Coax to 120 Ohm Twisted Pair
- Bi-Directional Signal Conversion
- No AC Power or Batteries Needed
- Male BNC Cable Available, the cable length is 15cm
- Ultra-Miniature Enclosure
- easy to use and high quality balun G.703
Transmission Line: CCITT G.703 (unstructured)
Data Rate: 2.048 Mbps
75 Ohm Connection: Dual coax BNC connectors, male or female (RG 59 or 2002 coax)
120 Ohm Connection: Shielded RJ-45 jack (standard) or External Terminal Block
Power Supply: none required
Link-to-Data Isolation: 500 volts AC/DC
Operating Temperature: 0° to 50°C (32° to 122°F)

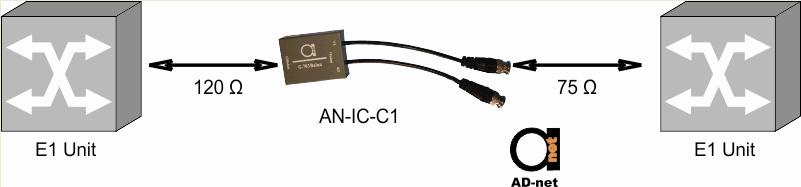

Application scenario:
| AN-IC-C1 | G.703 BALUN 75/120 OHM Female/Male BNC cable type impedance converter / balun G703 |
Description
AN-IC-C1 is single port balun G703 E1 interface cable type impedance converter (75Ω dual coax and 120Ω twist pair). It is used conveniently without power supply. Two coaxial cables are assemblied with converter, which make it’s use more easy as ever.
