Compact Gigabit Ethernet Aggregator – AN-EoPDH-AG
AN-EoPDH-AG is a Gigabit Ethernet aggregator with inverse multiplexing and VLAN TAG function; it provides three gigabit Ethernet interfaces (2 electrical and 1 optical Ethernet interfaces) compliant with IEEE 802.3 series standard and up to 24 E1 interfaces. It can separate the Ethernet data from GE port (the carried VLAN Tag correspond to different VCG channels), encapsulate them into EoPDH signal, and then into E1 signal; in the opposite direction, it can de-map the Ethernet data from E1 signal, aggregate them into GE port.

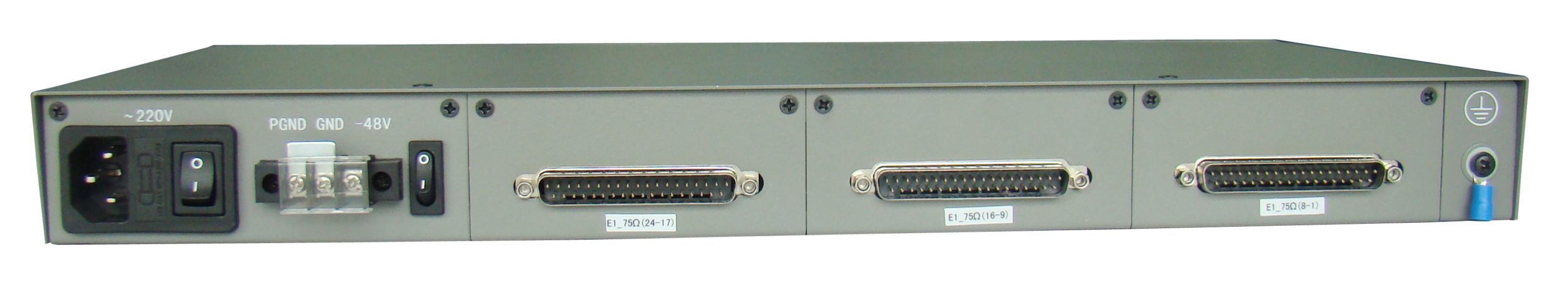

- Compact design with 1U height, 19 inch, 205mm depth, and can be installed on standard rack
- E1 interface
- Provides 8/16/24 E1 interfaces, compliant to G.703, and balanced/unbalanced selectable
- Jitter tolerance, jitter transfer characteristic and jitter generation fully comply with ITU-T G.823 and G.742 recommendations
- Supports E1 line loop and device loop
- Supports E1 BERT function
- Ethernet interface
- One fiber gigabit Ethernet interface and two copper gigabit Ethernet interfaces compliant with IEEE802.3 serial standard;
- The copper gigabit Ethernet interfaces adopt RJ45 connector, support auto-negotiation, which can work in 1000M full-duplex, 100M full/half-duplex, 10M full/half-duplex mode;
- The fiber gigabit Ethernet interface adopts 25G SFP module, which can work in 1000M full-duplex mode, transmission distance is optional (depend on the SFP optical module);
- Proprietary technique (patent pending) adopted to prevent Ethernet frames from looping back in case of unexpected transmission line loopback;
- Supports unicast, multicast and broadcast frame;
- Supports flow control and broadcast storm filtering control;
- 4K MAC address table, with optional 12s / 300s ageing time configurable, the default is 300s;
- Supports MAC address dynamic learning function;
- Accepts frames with length between 64 and 1552 bytes (otherwise filtering);
- Supports port-based VLAN and IEEE802.1Q tag-based VLAN;
- Supports up to 30 VLAN table
- Provides performance statistic for each Ethernet interface;
- Supports QinQ(Double Tag VLAN);
- Supports port rate control for LAN port
- Ethernet encapsulation
- In single E1 mode, it supports GFP-F encapsulation compatible with ITU-T G.7041 recommendation and HDLC encapsulation compatible with RJ017, under HDLC encapsulation, it supports framed PCM31/ unframed mode;
- In Multi-E1 conversion mode, it supports GFP-F encapsulation;
- Communication with remote equipment
- In single E1 mode, it supports communication with the remote FE1-ETH converter and the equipment adopted the same Ethernet encapsulation from other vendor;
- In Multi-E1 conversion mode, it can communicate with the remote EOP series, and the equipment adopted the same Ethernet encapsulation from other vendor ;
- Compliant to ITU-T standards
- GFP-F encapsulation , compatible with ITU-T G.7041 recommendation;
- Virtual concatenation (VCAT) and Link Capacity Adjustment Scheme (LCAS) recommendation G.7042;
- Ethernet to nxE1 mapping recommendation G.7043;
- Ethernet to single E1 mapping recommendation G.8040;
- NE Management
- Supports Simple Network Management Protocol (SNMP), compatible with V1 and V2C protocol;
- Supports FTP protocol and firmware download online without disturbance of existing traffic;
- Monitoring the alarms and status in real-time;
- Supports hot-spare power, the power consumption is less than 20W
|
Type |
Specification |
Description |
Remarks |
|
|
Metal chassis |
AN-EoPDH-AG metal chassis |
434mm×44mm×205mm (W × H × D） |
Required |
|
|
FAN |
FAN of AN-EOPDH-AG |
Two are required |
||
|
Mainboard |
AN-EoPDH-AG mainboard |
Gigabit Ethernet aggregator mainboard |
Required |
|
|
ARM card |
CARM701 card |
Realize card management and network-based management |
Required |
|
|
E1 card |
CLIU8 card |
DB37F-BNC-8E1 cable adapter |
8-unbalanced E1 card, provide BNC interface by the cable adapter |
Optional |
|
CLIUB8-B card |
– |
8-balanced E1 card, RJ48C interface |
||
|
1.25G SFP optical module |
15Km, 1310nm 30Km, 1310nm 80Km, 1550nm 120Km, 1550nm single fiber, 1550/ 1310 nm , 15Km |
1.25G SFP optical module |
Optional |
|
|
Power module |
-48V DC single power 220V AC single power -48V DC +220V AC double power -48V DC +-48V DC double power 220V AC +220V AC double power |
PW25DC-K5V5, -48V to +5.5V (DC/DC）; PW25AC-K5V5, ~220V to +5.5V (AC/DC)； |
Optional |
|
| AN-EoPHD-AG | Ethernet over PDH Aggregator, 8/16/24E1 for option, max support 16 VCG channels, dual or single power, AC or 48VDC |
Description
AN-EoPDH-AG is a Gigabit Ethernet aggregator with inverse multiplexing and VLAN TAG function; it provides three gigabit Ethernet interfaces (2 electrical and 1 optical Ethernet interfaces) compliant with IEEE 802.3 series standard and up to 24 E1 interfaces. It can separate the Ethernet data from GE port (the carried VLAN Tag correspond to different VCG channels), encapsulate them into EoPDH signal, and then into E1 signal; in the opposite direction, it can de-map the Ethernet data from E1 signal, aggregate them into GE port.
AN-EoPDH-AG supports 16 VCG channels, and each VCG channel can be configured to work in single E1 mode or Multi-E1 conversion mode independently, In single E1 conversion mode, each channel bandwidth is one E1; In multi-E1 conversion mode, the maximum bandwidth of each channel is 16 E1.

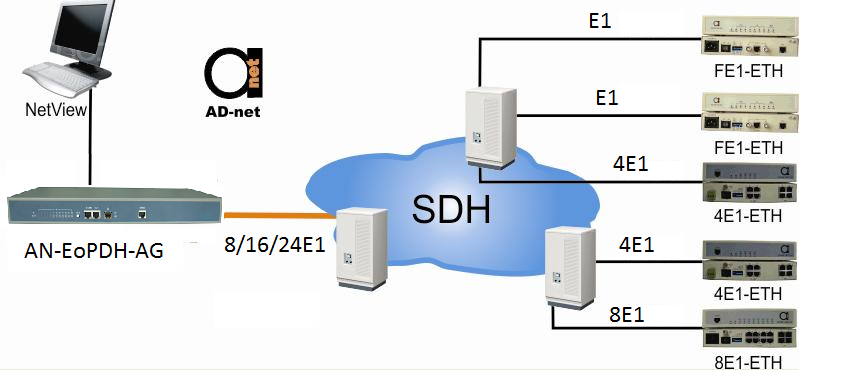

AN-EoPDH-AG can be used in the traffic convergent network, supports point-to-multipoint application; it supports NE management based on simple CLI command via RS232 type; meanwhile, it supports SNMP_V1 and SNMP_V2 protocol, supports network management platform NetView based on C/S architecture, which is easy for device configuration, management and maintenance.
With EoPDH (Ethernet over PDH) technology compliant to ITU-T G.7041, G.7042, G.7043 and G.8040 standards, AN-EoPDH-AG can communicate with products from other vendors adopting the same standards.
